Remote Control; Cooling Fan; Energy Mode - ims PRO TITANIUM 400 AC/DC Mode D'emploi

REMOTE CONTROL

The analog remote control operates in TIG and MMA processes.
ref. 045699
Connection:
1- Plug the remote control into the connection at the back of the machine.
2- The HMI detects the presence of a remote control and offers a selection choice accessible by wheel.
Connection:
The TIG is equipped with a female socket for a remote control.
The specific 7 pin male plug (option ref.045699) enables connection to the different types of manual remote control or foot pedal. For the cabling
layout, please see the diagram below.
CONNECT-5
Operating :
• Manual remote control (option ref. 045675) :
The remote control enables the variation of current from 50% to 100% of the set intensity In this configuration, all modes and functions of the
machine are accessible and can be set.
• Foot pedal (option ref. 045682) :
The pedal control enables variation of the current from the minimum current to 100% of the set intensity.
In TIG, the welding machine only operates in 2T mode. The upslope and downslope are not automatically managed by the current source, and are
controlled by the user with the foot pedal.
The digital remote control allows to connect a remote HMI or a TIG dispenser.

COOLING FAN

To minimise sound and dust aspiration, the station integrates a controlled fan system. The fan's rotation speed depends on the temperature and the
machine's settings.

ENERGY MODE

This mode developed for welding with energy control framed by a DMOS allows, in addition to the energy display of the bead after welding, to set:
- The thermal coefficient according to the standard used: 1 for ASME standards and 0.6 (TIG) or 0.8 (MMA) for European standards. The energy
displayed is calculated taking this coefficient into account.
- The length of the weld seam (OFF - mm): if a length is recorded, then the energy display is no longer in joule, but in joule / mm (the unit on the
display «J» flashes).
48
TITANIUM 400 AC/DC
Torch type
Up & Down Torch
G
F
A
B
E
D C
External view
REMOTE CONTROL TYPE
Foot pedal
D
045682
C
B
045675
A

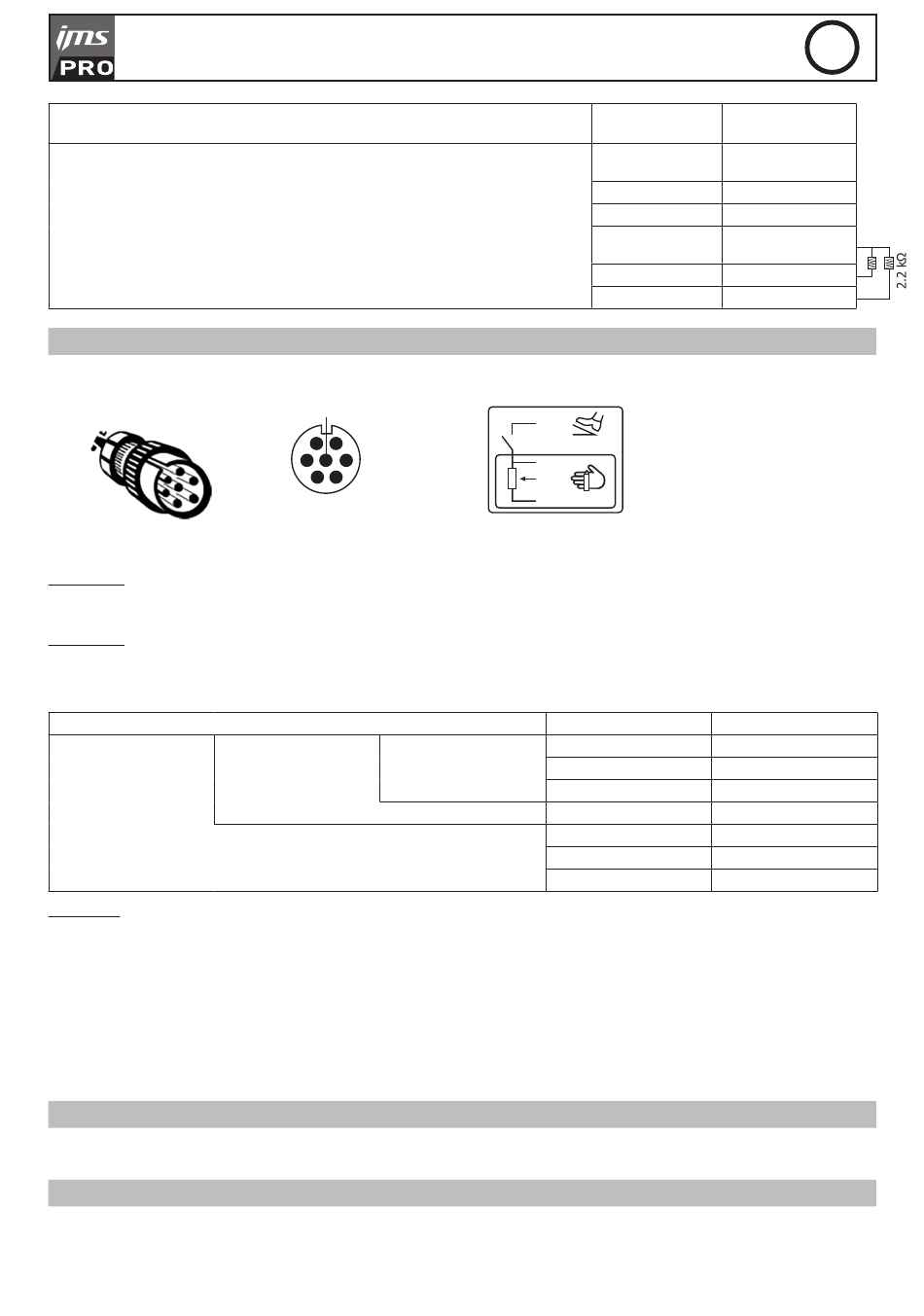

Electric diagram according to the remote control type.
Manual remote control
Wire description
Commun
Switch 1 & 2
Switch 1
Switch 2
Commun
Switch Up & Down
Switch Up
Switch Down
Wire description
10 V
Cursor
Common/Earth
Switch
AUTO-DETECT
ARC ON
REG I
EN
Pin
2
4
3
5
1
2
Pin
A
B
C
D
E
F
G
