Installation
Horizontal window
Window slide kit
minimum: 67.5cm
maximum: 125cm
3. Remove the unit with the packed exhaust duct next to the window, and then connect the adaptor B
(flat mouth) of the exhaust duct with the window. (Fig. F)

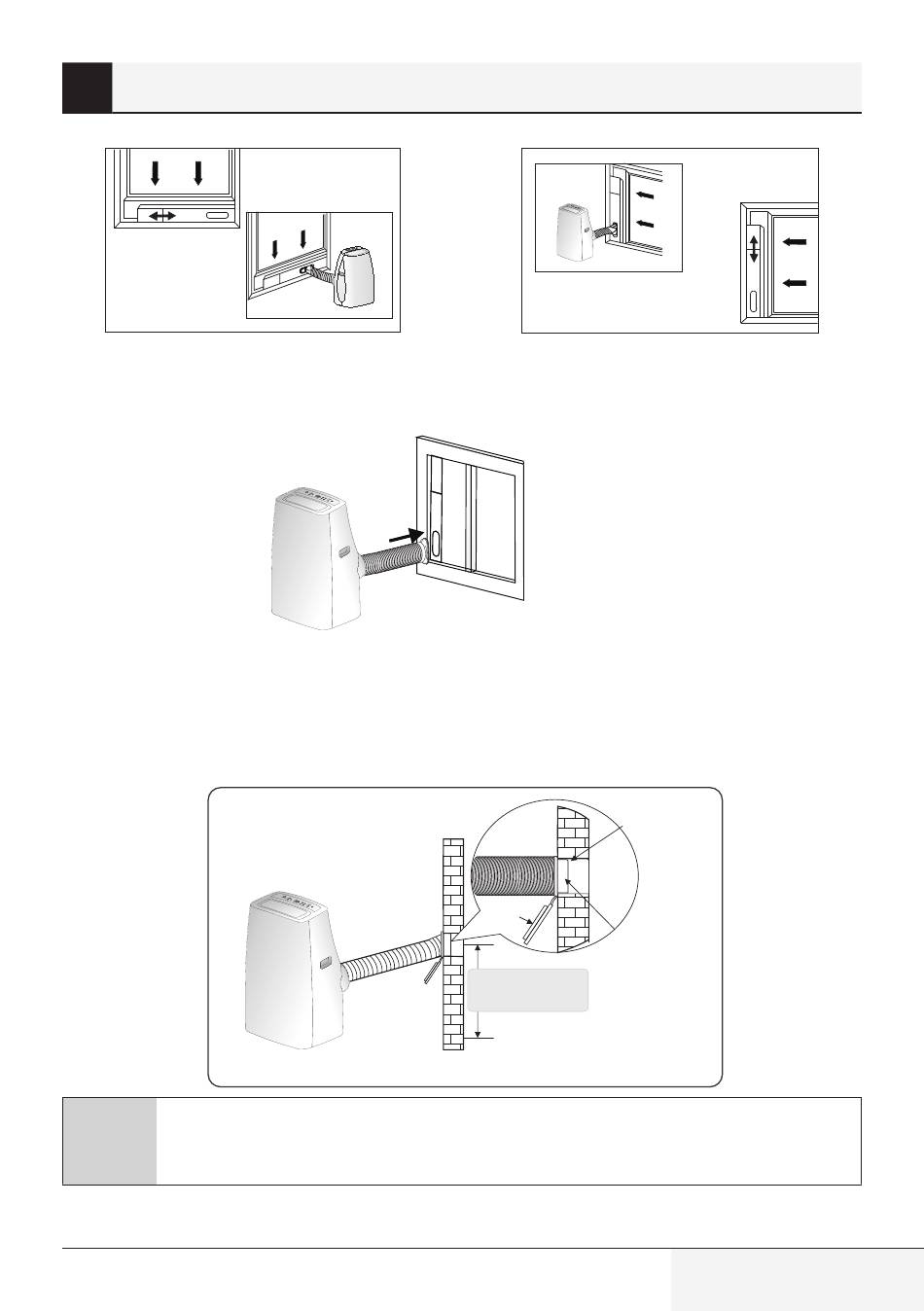

6.5 Install the exhaust duct into the wall

1. Prepare a hole in the wall. Install the wall exhaust adaptor onto the wall, be sure to fix thoroughly.
2. Attach the exhaust duct to wall exhaust adaptor. (Fig. G)
C
Note: Cover the hole using the adaptor cap when not in use.
Mobile room air conditioner / User Manual
Fig. D
maximum: 120cm
minimum: 30cm
Fig. G
Window slide kit
minimum: 67.5cm
maximum: 125cm
Fig. F
Wall exhaust
adaptor
Adaptor
cap
Adaptor B
(round mouth)
Fig. E
Vertical
window
17 / 116 EN
