4. Pre-commissioning

4.1 Brief inspection

First check, if all parts listed in the scope of delivery have been delivered.
Scope of delivery:
1 battery-powered electro-hydraulic punching device type Powerlec Vario
1 battery
1 charger
2 draw studs
1 reducing adapter
2 spacer sleeves
2 operation manuals (1x for the punching device, 1x for the charger)
1 punch set consisting of round punches ø: 12.2 / 16.2 / 20.2 / 22.5 / 25.2 / 32.2 / 40.2 / 50.2 / 63.2 (only for Powerlec Vario with
round punches)

4.2 Labels

The devices is provided with the following labels and instructions:
Company name and address
Punch force
Serial number
Hazard reference for the punching process
Label position descriptions are specified in heading 7 of the "Technical Data".

5. Use of the electro-hydraulic punching device

5.1 Description of components
The electro-hydraulic puncher called Powerlec Vario is a hand-held device consisting of the following components:

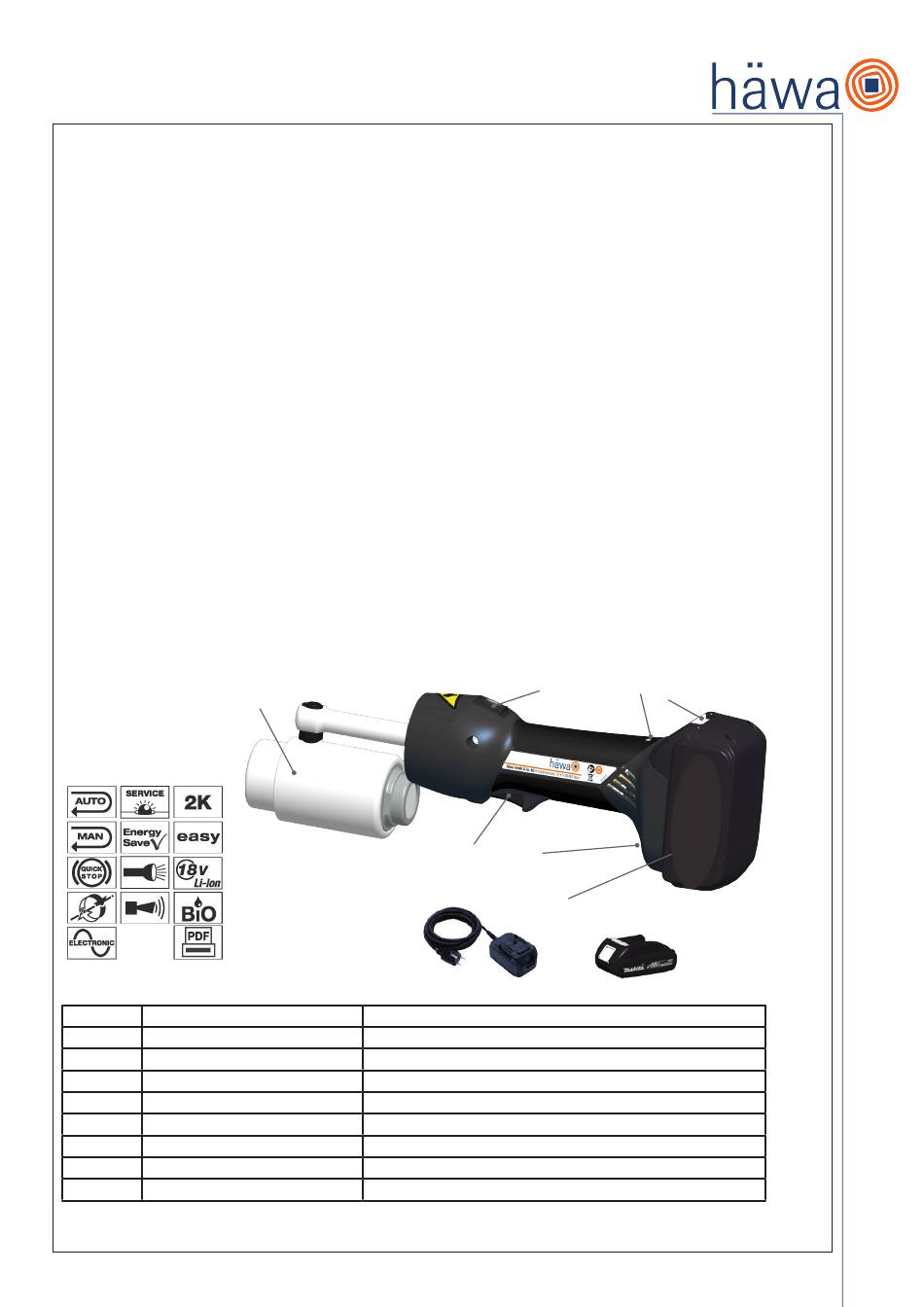

Fig. 1
Item no.
Description
1
Punching head
2
Retract slider
3
LED (red)
4
Battery lock
5
Battery (BL 1830)
6
LED (white)
7
Operating switch
8
Power adapter
14
1
Function
Head for hosting the draw stud including punch and die
Slider to stop the punching operation in case of malfunction or emergency
Displays battery capacity, service intervals and faults
Slider to unlock the battery
Rechargeable Li-Ion battery
For illuminating the working area
Trigger to start the punching process
For connection to 230 V AC / DC mains
2
7
6
8
5
BL1830
3
4
