ASSEMBLY

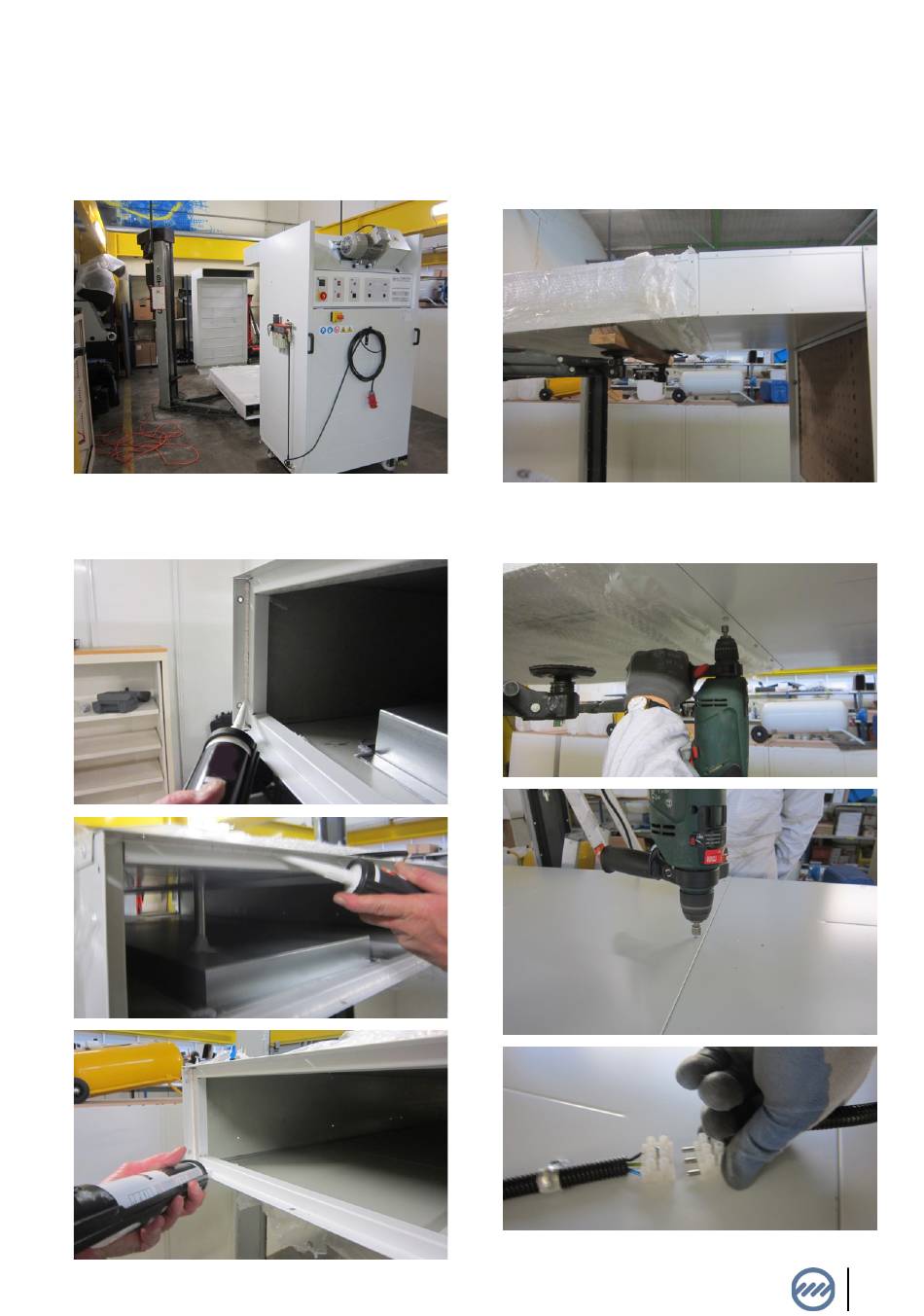

1. Place the structures in the position shown in this image to
make easy the following assembly.
2. Raise the central structure with the lighting and apply silico-
ne along the entire perimeter on both sides..
3. Attach the central structure to the sides. The numerical
ad-hesives make the positioning much easier. Check that
they match at each of the ends.
4. Screw structures in the front part, rear, top and bottom.
Perform this operation on the two sides. Make the electrical
connection at the top of the central structure. (View photo)
