3.2

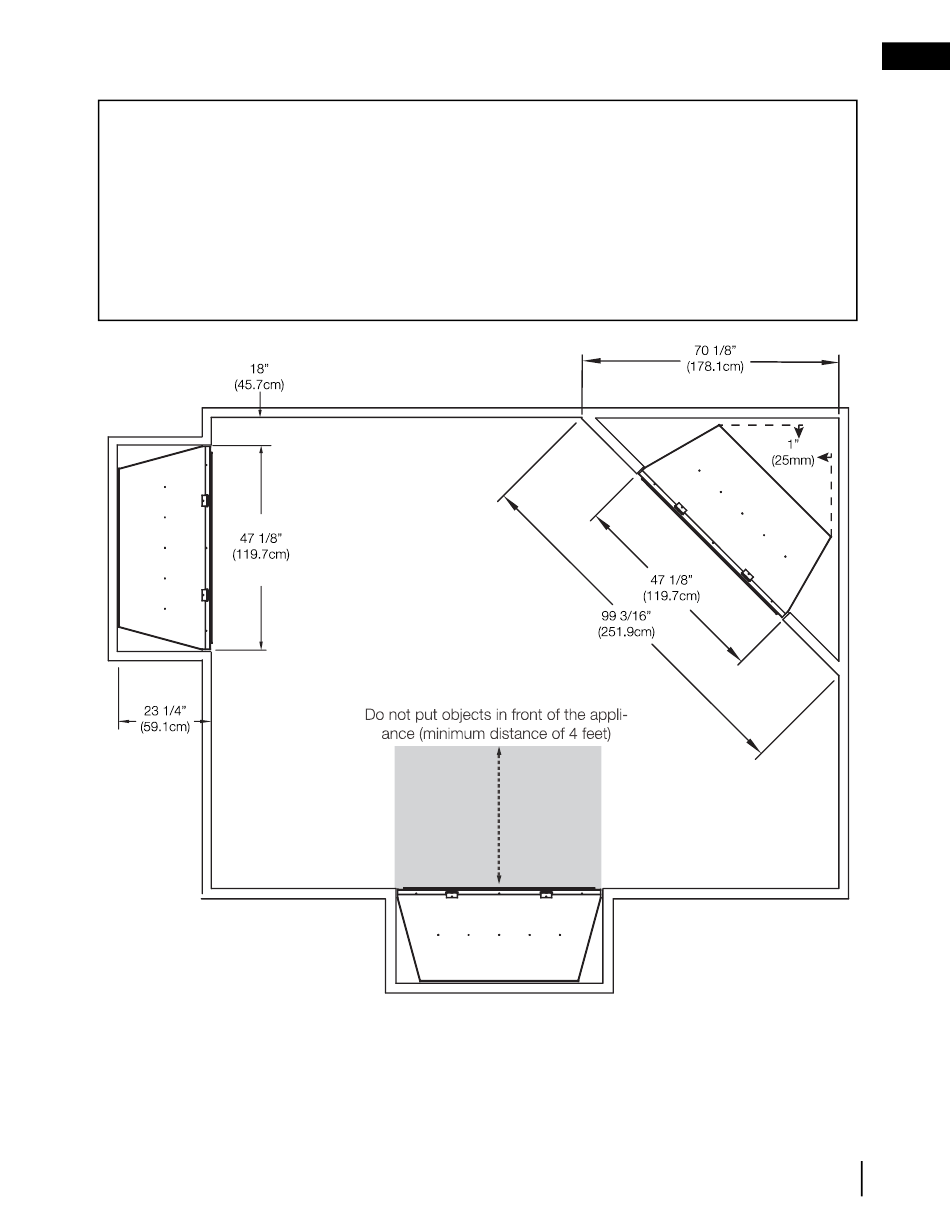

minimum framing dimensions
Minimum Clearance to Combustibles construction from appliance and vent surfaces:
Framing
Finishing
Non-combustible fi nishing
Recessed depth
Enclosure top
Clearance to ceiling
0" (0mm) to stand-offs (rear and sides only)
Use a steel header for the top and two steel studs on the sides.
1" (25mm) to back and sides
18" (45.7cm) to top
4"(102mm) to sides of appliance opening
Non-combustible fi nishing material (ie. cement board, brick, stone, tile) may
be used to fi nish the front of the appliance.
23 1/4" (58.7cm)
58 1/2" (148.6cm) from bottom of appliance
84" (213.4cm) from bottom of appliance.
framing
