3.1.2 INSTALLING LOG SET INTO MANTEL

NOTE: To prevent damaging the base of the mantel, carefully lift the log set into the mantel while
avoiding contact with the front edge of the mantel base.
A.

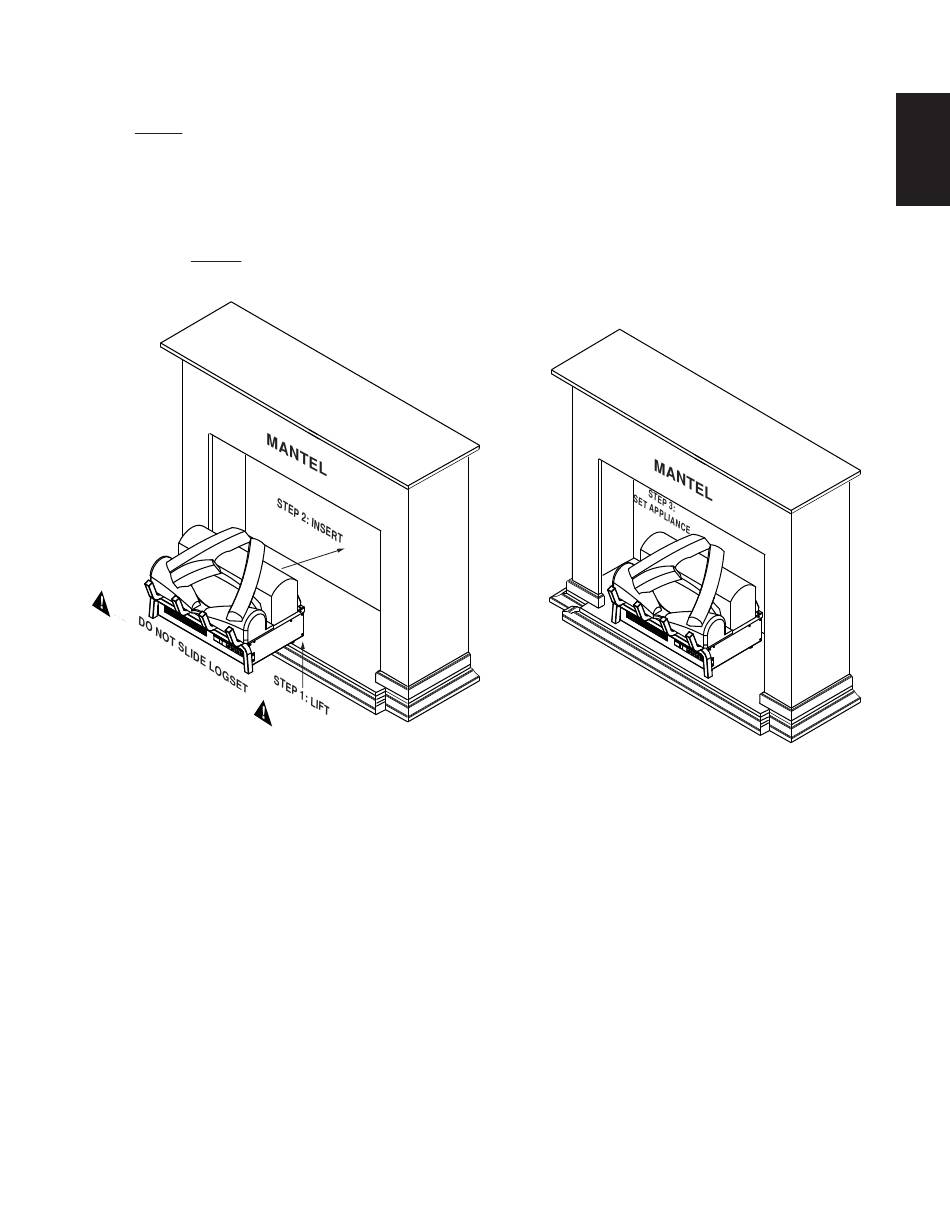

Lift the log set up and insert into the opening. Do not push or slide the bottom of the log set on the
fl oor base (Figure 1).
B. Set the log set down and into place (Figure 2).
NOTE : To achieve fl ame effect, the log set should be 2" away from the rear wall.
Fig. 1
Fig. 2
