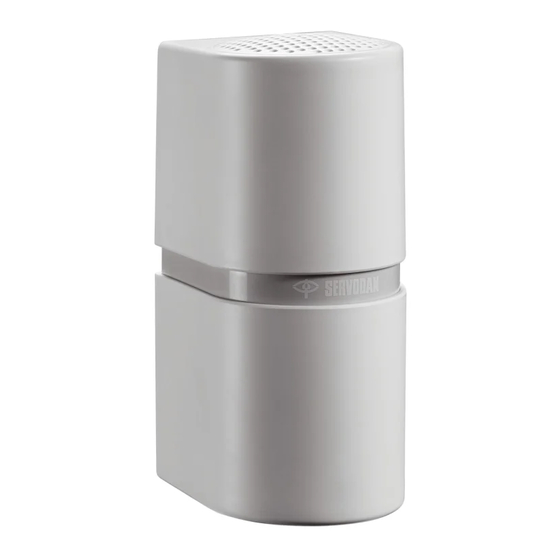

- Page 1 Foto Gong PIR Wireless Type 33-450 Brugervejledning User guide Gebrauchsanweisung Notice d’utilisation Bruksanvisning...
-
Page 2: Mounting/Connection
User guide PIR Wireless 33-450 Content 44-045 23-045 23-041 23-450 Mounting/Connection > 1 m. 10 cm. 2,5 m. 2,5 m. Approx. 1 m. max 6 m. Adapter connection Battery Mounting Adjust PIR Batteries, 1,5V AA Wireless On/Off (not included) frequency (2+3) When installing batteries note polarity Adjust sensitivity... - Page 3 Foto Gong central Central 23-450 Inside view Connections Adapter 23-041 1 2 3 4 5 6 7 8 9 10 11 12 Adjustment - Sound Sound options Sound 1 Sound 3 Frontdoor Backdoor Ch. 2 Ch. 1 Volume control Volume...
-
Page 4: Options - Accessories
40 to 90% loss: 20 to 40% loss: 5 to 20% loss: 90 to 100% Options – accessories PIR – Front door Ch. 1 Foto Gong central Main room Back room PIR – Back door Ch. 2 Foto Gong central... - Page 5 Options – accessories Sound settings – 2 x PIR Sound options Sound 1 Sound 3 Sound 2 Sound 4 Power on Frontdoor Backdoor Example – different sounds on front- and backdoor Ch. 1 Ch. 2 Volume control Volume Extra speaker control Frontdoor Ch.
- Page 6 Teknisk data (Foto Gong – PIR trådløs) Central 23-450: Tilslutningsspænding 12 V DC Tællerudgang NPN open collector Ic < 50 mA Vceo < 50 V DC Impulstid 160 ms Omgivelsestemperatur 0°….45°C Relativ luftfugtighed 20 – 65 % Tæthedsgrad IP 20 Adapter 23-041: Netspænding...
- Page 7 Technical data – (Foto Gong - PIR wireless) Central unit 23-450: Connection voltage 12 V DC Counter output NPN open collector IC < 50 mA, VCEO < 50 V DC Pulse time 160 ms Ambient temperature 0°...45°C Relative humidity 20 - 65 %...
- Page 8 Technische Daten – (Foto Gong - PIR Drahtlos) Zentrale 23-450: Anschlußspannung 12 V DC Zählerausgang NPN open collector IC < 50 mA, VCBO < 50 V DC Impulsdauer 160 ms Umgebungstemperatur 0° ... 45°C Relative Luftfeuchtigkeit 20 - 65 %...
-
Page 9: Caractéristiques Techniques (Foto Gong - Pir Sans Fi L)
Caractéristiques techniques (Foto Gong - PIR sans fi l) Central 23-450: Tension de connexion 12 V DC Sortie compteur NPN collecteur ouvert IC < 50 mA, VCEO < 50 V DC Temps impulsion 160 ms Température ambiante 0°- 45°C Humidité relative 20 - 65 % Etanchéité... - Page 10 Tekniska data (Foto Gong - PIR Trådlös) Central 23-450: Anslutningsspänning 12 V DC Räknarutgång NPN open collector, IC < 50 mA, VCEO < 50 V DC Impulstid 160 ms Omgivningstemperatur 0°...45°C Relativ luftfuktighet 20 - 65 % Kapslingsklass IP 20 Adapter 23-041: Primärspänning...
- Page 11 Technische gegevens (Foto Gong - PIR - Draadloze) Centrale 23-450: Aansluitspanning 12 V DC Telleruitgang NPN open collector IC < 50 mA, VCBO< 50 V DC Inpulsduur 160 ms Omgevingstemperatuur 0° ... 45°C Relatieve luchtvochtigheid 20 - 65 % Standby- verbruik ca.
