Napoleon Castlemore GDS26-1 Manuel D'installation Et D'opération page 30

installation
EN

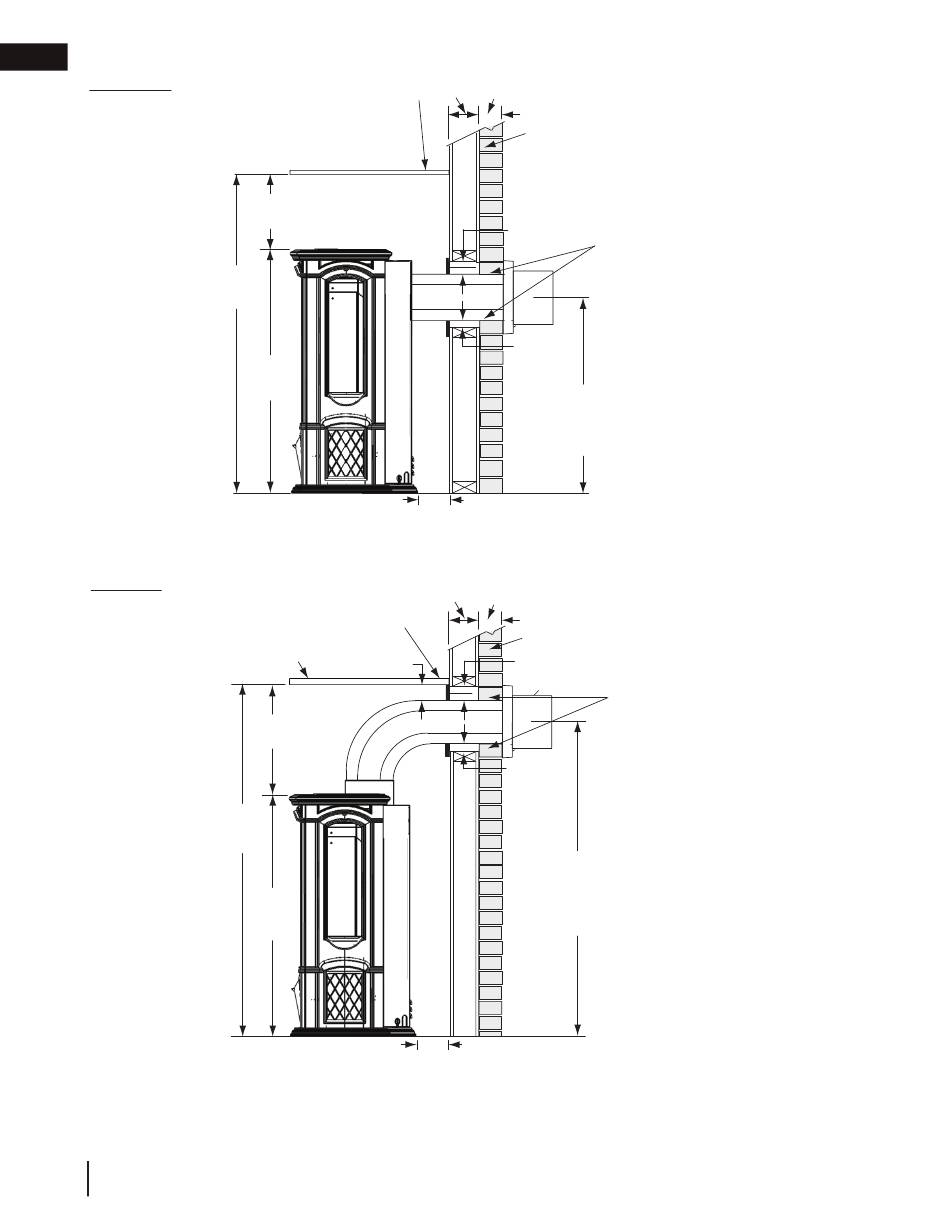

REAR EXIT
47 1 /2"
(120.7cm)
The appliance requires a minimum ceiling height of 47 1/2" (120.7cm) for a rear vent. For temperature
requirements, the space around and above the appliance must be left unobstructed.
TOP EXIT
MANTEL, SHELF,
OR CEILING
(129.5cm)
The appliance requires a minimum ceiling height of 51" (129.5cm) for a top vent horizontal termination. For top
vent vertical termination, see "REAR EXIT" section for specifi c clearances. For temperature requirements, the
space around and above the appliance must be left unobstructed.
* See "venting" section.
30
W415-2360 / A / 10.31.19
COMBUSTIBLE
MANTEL, SHELF,
OR CEILING
12"
(30.5cm)
35 1 /2"
(90.2cm)
5" (127mm)
COMBUSTIBLE
2" (51mm)
15 1 /2"
(39.4cm)
51"
35 1 /2"
(90.2cm)
5" (127mm)
NON-COMBUSTIBLE
BRICK
2" (51mm)
0" (0mm) IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK AND
STONE.
1" (25mm)
29 1 /8"
(74cm)
MINIMUM
PLUS RISE ***
NON-COMBUSTIBLE
BRICK
2" (51mm)
0" (0mm) IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK AND
STONE.
1" (25mm)
45 1 /2"
(115.6cm)
MINIMUM
PLUS RISE ***
