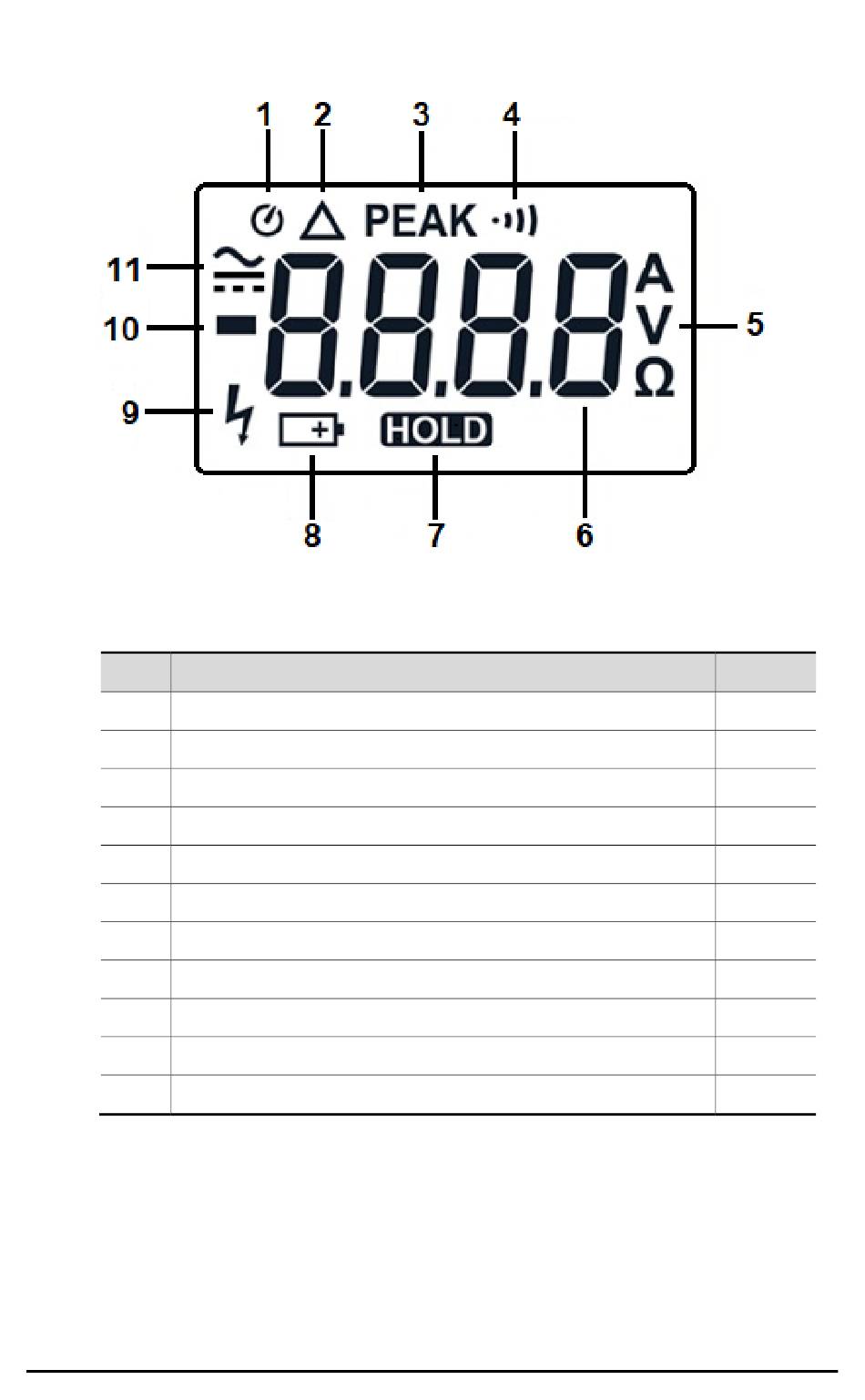

1.2 Display

Item
1 Auto Shutdown activated
2 ∆ ZERO mode
3 PEAK mode
4 Continuity mode
Measurement unit - A, V, or Ω (amp, volt, or ohm)
5
6 Measurement display area
HOLD function
7
8 Low battery
9 Hazardous voltage present
10 Negative value
11 DC or AC
8
Figure 2
Indicator
Clamp-On Meter Model 505
See §
2.7
2.4
2.6
2.3.6
--
--
2.5
2.1
--
--
--
