2.3.2 AC Current

For safety, disconnect the measurement leads before performing this
operation.
The clamp must be positioned around a single conductor in a circuit;
otherwise the measurement will be invalid.
To maximize accuracy, center the jaws around the conductor.
1.
Set the switch to
2.
Press the trigger to open the clamp.
3.
Place the clamp around the conductor to be measured and release
the trigger. Ensure the clamp is completely closed.
4.
Read the result on the LCD.
12

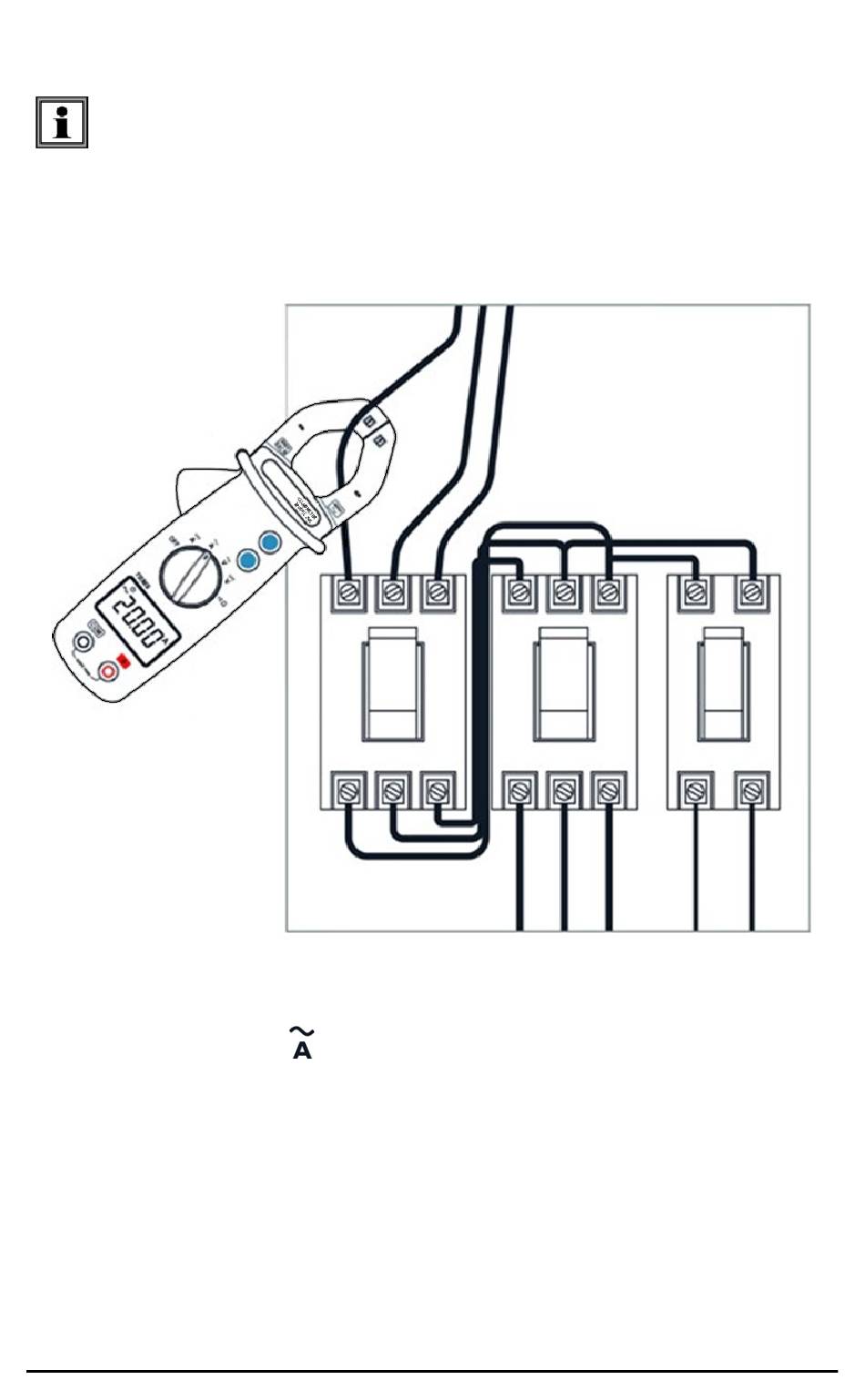

Figure 6
.
Clamp-On Meter Model 505
