Connections; Input Mode - Sharp PN-E703 Manuel D'installation

Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
Power cord
(Supplied)
For power outlet
TIPS
• Set the audio input terminal used for each input mode in AUDIO SELECT on the SETUP menu. The factory settings are
shown below.

Input mode

DVI-I
DisplayPort
HDMI1[PC], HDMI1[AV],
HDMI2[PC], HDMI2[AV]
D-SUB[RGB],
D-SUB[COMPONENT],
D-SUB[VIDEO]
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing LLC in the United States and other countries.
• DisplayPort is a registered trademark of Video Electronics Standards Association.
6
E

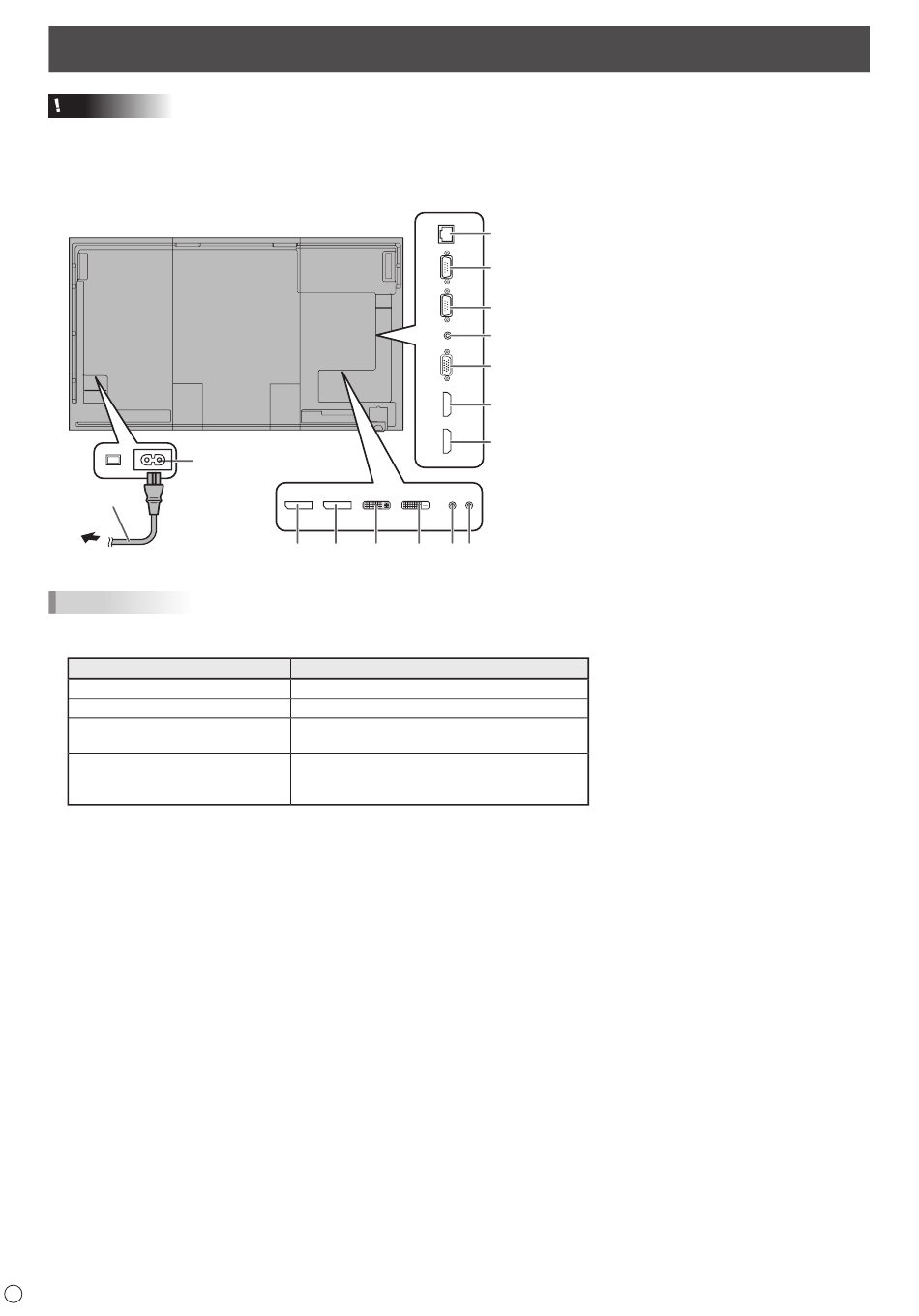

Connections

1
2 3
Audio input terminal (Factory setting)
Audio1 input terminal
DisplayPort input terminal
PC/AV HDMI input terminal
Audio2 input terminal
8
9
10
11
12
13
14
4 5 6 7
1. AC input terminal
2. DisplayPort input terminal
3. DisplayPort output terminal
4. DVI-I input terminal
5. DVI-D output terminal
6. Audio1 input terminal
7. Audio2 input terminal
8. LAN terminal
9. RS-232C output terminal
10. RS-232C input terminal
11. Audio output terminal
12. PC/AV D-sub input terminal
13. PC/AV HDMI1 input terminal
14. PC/AV HDMI2 input terminal
