Assembly - PowerPeak Elliptical Trainer Magnetic Mode D'emploi

40 Anti-loose Bolt M8*25
41 Knob
42 Sensor with Cable
43 Rear End Cap
44 Rear Stabilizer
45
Flat Washer Ф8
Attention
Some of the above parts have already been assembled to the main frame. These are not delivered
separately!

ASSEMBLY

In order to familiarise yourself with the parts of the device, we advise you to study the overview picture
and the parts list carefully before you start assembly. Place all the parts on the floor and remove all
packaging materials.

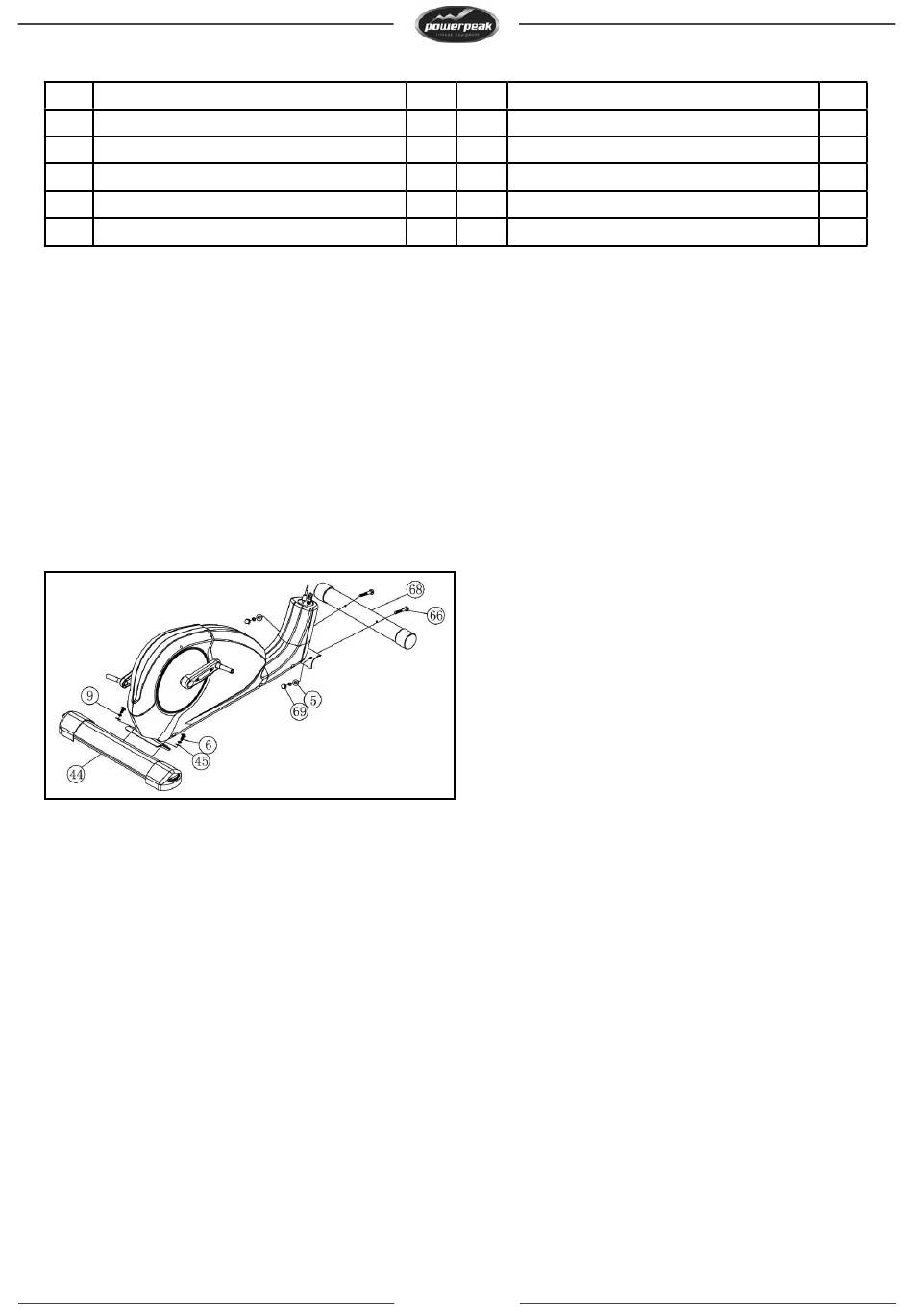

Step 1: Front and rear stabilizer assembly
Attach the front stabilizer (68) to the main frame (46) with two carriage bolts M8*75 (66), two curved
washers φ8 (5), two spring washers φ8 (9) and two cap nuts (69). Do not tighten the bolts fully.
Remove the two Allen bolts M8*20 (6), two spring washers φ8 (9) and two flat washers Ф8 (45)
from the rear stabilizer (44). Next, attach the rear stabilizer (44) to the main frame (46) with the two
removed Allen bolts M8*20 (6), two spring washers φ8 (9) and two flat washers Ф8 (45). Do not
tighten the bolts fully.
2 85 Handle Bar
4 86 Screw
1 87 Allen Key Wrench
2 88 Combination Wrench
1 89 Upper tension cable
2
21
1
2
2
1
1
