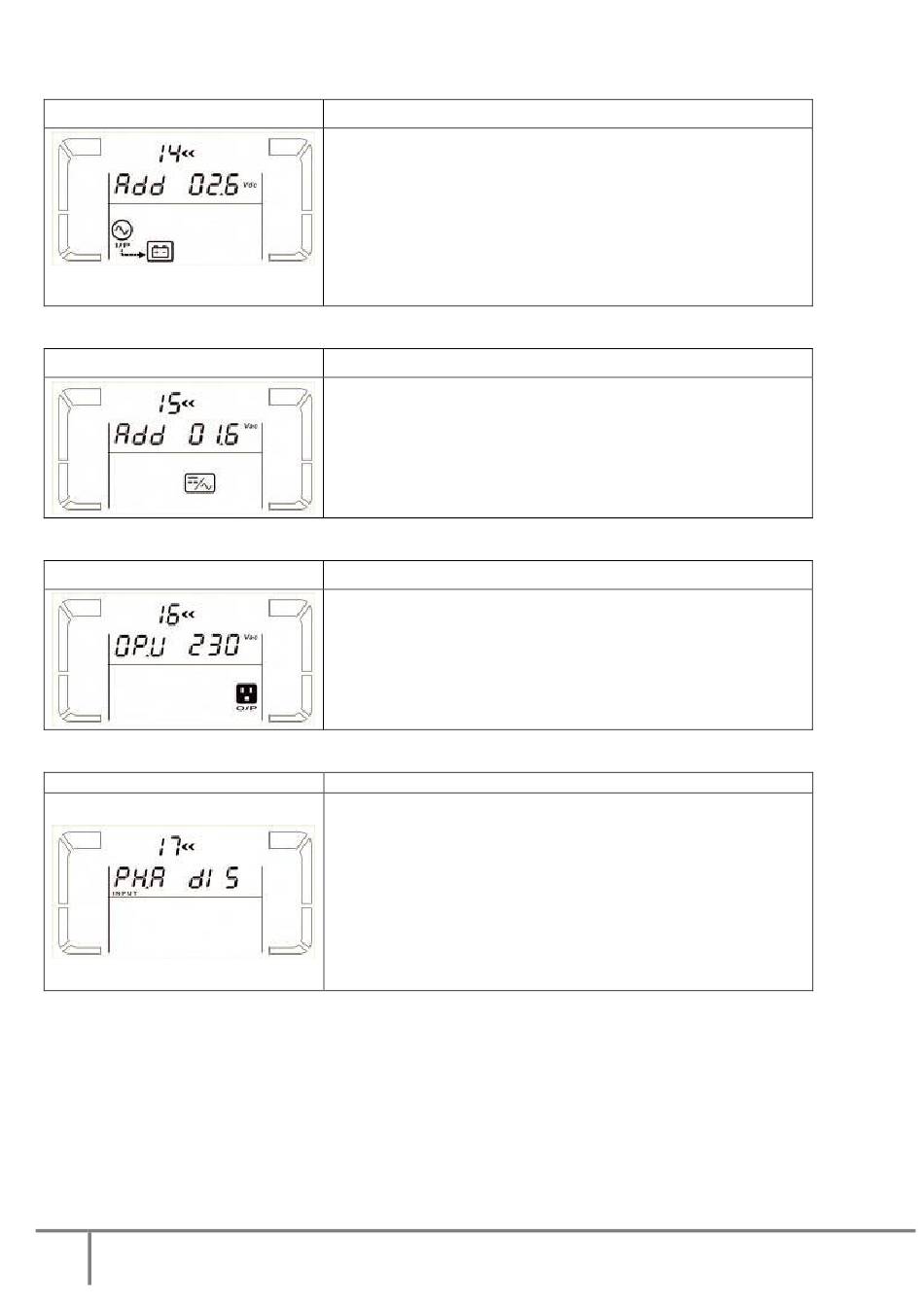

14: Charger voltage adjustment
Interface
15: Inverter voltage adjustment
Interface
16: Output voltage calibration
Interface
17: Phase auto adapt enable/disable
Interface
INFOSEC UPS SYSTEM – 4 rue de la Rigotière – 44700 Orvault – France – www.infosec-ups.com
67
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 04 14 AA 59 203 37
Setting
Parameter 2: you may choose Add or Sub to adjust charger
voltage
Parameter 3: the voltage range is from 0V to 9.9V, the default
value is 0V.
NOTE:
*Before making voltage adjustment, be sure to disconnect all
batteries first to get the accurate charger voltage.
*We strongly suggest to use the default value (0). Any
modification should be suitable to battery specifications.
Setting
Parameter 2: you may choose Add or Sub to adjust inverter
voltage
Parameter 3: the voltage range is from 0V to 9.9V, the default
value is 0V.
Setting
Parameter 2: it always shows OP.V as output voltage.
Parameter 3: it shows the internal measurement value of the
output voltage, and you can calibrate it by pressing Up or Down
according to the measurement from an external voltage meter.
The calibration result will be effective by pressing Enter. The
calibration range is limited within +/-9V. This function is normally
used for parallel operation.
Setting
Parameter 2: it always shows PH.A as phase auto adapt
function.
Parameter 3: Enable or disable phase auto adapt function. You
may choose following two options:
DIS: disable phase auto adapt function.
accept the phase order which L2 delay L1 120º, L3 delay L2 120º.
ENA: enable phase auto adapt function. Then, the UPS can accept
either inputs of L1, L2, L3 in the same phase or the phase order
which L2 delay L1 120º, L3 delay L2 120ºor L2 delay L1 240º, L3
delay L2 240º.
the UPS only can
Then,
