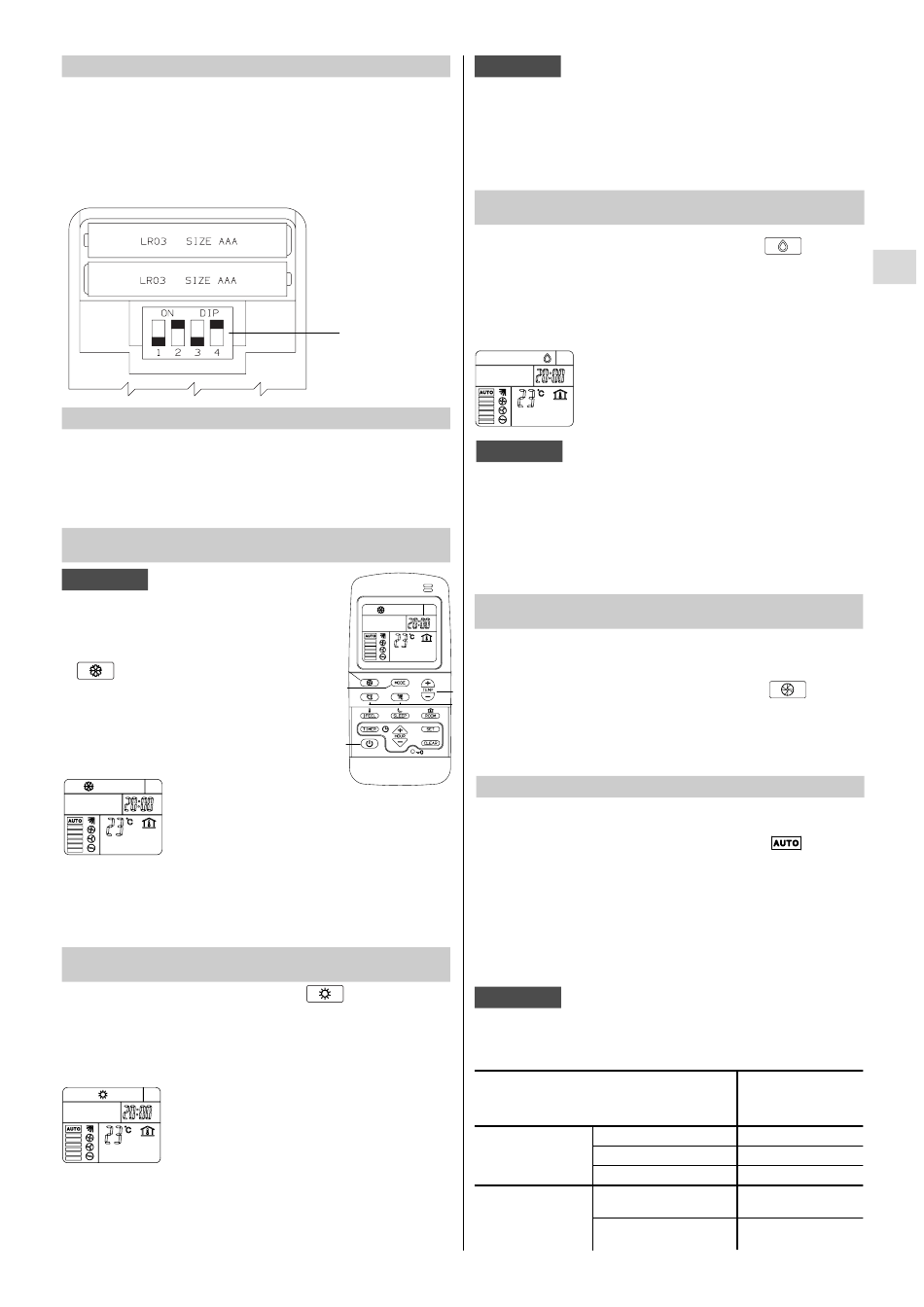

HOW TO SET THE REMOTE CONTROL UNIT

1. Remove the lid of the batteries, in the rear part of the
remote control unit.
2. Set the switches like the figure.
3. Reset the remote control unit (see instruction inside
the lid of the batteries).
3. Replace the lid.

HOW TO SET THE PRESENT TIME

1. Press the SET button for five seconds. The time
indication alone flashes.
2. Press the + or - buttons until the present time is
displayed.
3. Press the SET button to stop the indication flashing.
ONLY IF THE SYSTEM IS SET IN THE

COOLING

SAME MODE
NOTE
Verify that the unit is connected to the
main power and the STANDBY lamp is
light up.
1.Set the MODE selector to COOL
.
2.Press the ON/OFF button and switch
the air conditioner ON.
3.Press the TEMP. buttons to set the
desired temperature (the temperature
range is between 30 °C max. and 16
°C min.).
THE DISPLAY SHOWS THE
SELECTED TEMPERATURE.
4.Press the FAN SPEED button to select the fan speed.
5.Press the FLAP buttons and adjust the air flow direction as
desired (see adjustment of air flow). Make sure that the remote
control is switched on. Press the FLAP button to select
automatic swing or one of the six manual settings.
ONLY IF THE SYSTEM IS SET IN THE

HEATING

SAME MODE
1.Set the MODE selector to HEAT
2.Press the ON/OFF button and switch the air condioner
ON.
3.Press the TEMP. buttons to set the desired temperature
(the temperature range is between 30 °C max. and 16 °C
min.).
THE DISPLAY SHOWS THE SELECTED
TEMPERATURE.
4.Press FAN SPEED selector button to the setting you want.
5.Press the FLAP button and adjust the air flow direction as
desired (see adjustment of air flow). Make sure that the remote
control is switched on. Press the FLAP button to select
automatic swing or one of the six manual settings.
NOTE
For several minutes after the start of heating operation, the
indoor fan will not run until the indoor heat exchanger coil
has warmed up sufficiently. This is because the COLD
DRAFT PREVENTION SYSTEM is operating.
During this period the STANDBY lamp will be light up.

DEHUMIDIFYING (DRY)

1.Set the MODE selector switch to "DRY"
2.Press the ON/OFF button and switch the air condioner
ON.
3.Press the TEMP. buttons to set the desired temperature
(the temperature range is between 30 °C max. and 16 °C
min.).
SWITCHES
NOTE
G Use DRY operation when you want to reduce the humidity
in the room.
G Once the room temperature reaches the set level, the
unit repeats the cycle of turning on and off automatically.
During DRY operation, the fan speed is automatically set
G
to low or stops to prevent overcooling.

FAN ONLY

If you want to make air circulate without any temperature
control, follow these steps:
4
1
1. Set the MODE selector switch to "FAN"
3
5
2. Press the ON/OFF button and switch the air conditioner
ON.
2

ADJUSTING THE FAN SPEED

AUTOMATIC
Simply set the FAN SPEED selector to the
A microcomputer automatically controls the fan speed when
the AUTO mode is selected. When the air conditioner starts
operating, the difference between the room temperature
and the set temperature is detected by the microcomputer
which then automatically switches the fan speed to the
most suitable level.
.
NOTE
In FAN Only mode the fan speed is adjusted automatically
as in cooling mode.
WHEN DIFFERENCE BETWEEN
ROOM TEMPERATURE AND SET
Cooling and
dehumidifying
modes:
Heating mode:
6
ONLY IF THE SYSTEM IS
SET IN COOLING MODE
THE DISPLAY SHOWS THE SELECTED
TEMPERATURE.
ONLY IF VALVE WITH BRIDGE 3/4 ON THE
TERMINAL BASE IS INSTALLED
TEMPERATURE IS
2 °C and over
Between 2 and 1 °C
Below 1 °C
2 °C and over
Below 2 °C
.
GB
.
position
FAN SPEED
High
Medium
Low
High
Medium
