BATTERY REPLACEMENT
P02-P04 MODELS
WARNING: danger of explosion if battery is replaced with an other of incorrect type.
WARNING: before operating on the transmitter, make sure that the RRC radio receiver is not powered. Acciden-
tally pressing a key may activate the corresponding device and create a dangerous situation.

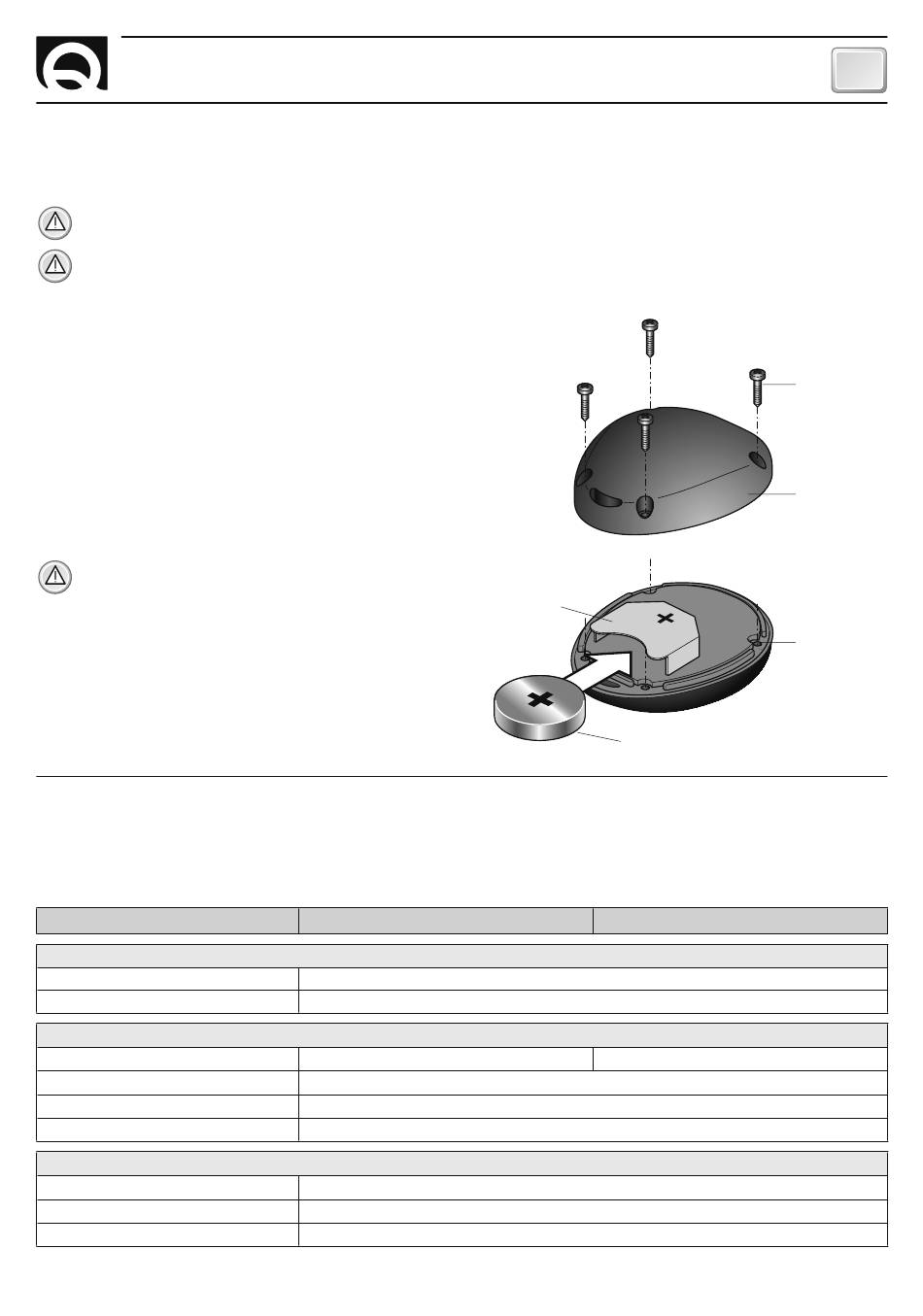

• Remove the transmitter base by unscrewing the four screws
using a Phillips screwdriver.
• Remove the battery from the battery holder sliding it out-
wards without using metal tools.
• Insert the new battery (of the type indicate in the technical
characteristics) paying attention to polarity of the positive
pole (+) as shown on the metal battery holder.
• Close the transmitter base, checking that it sits correctly in
the gasket groove, located on the front of the transmitter, in
order to restore the seal.
• Tighten the four screws.
WARNING: once the transmitter is assembled, verify
that the LED does not remain on constantly. If the LED
is on, reopen the transmitter and verify that it was as-
sembled correctly.
At the end of its useful life, the battery contained in the pro-
F
duct must be disposed of separately from other separated
urban waste. Dispose of the battery in accordance with the
provisions of local law.
MAINTENANCE
The RRC pocket radio transmitter does not require particular maintenance. Use a soft cloth moistened with water when
cleaning it. Do not use chemical or abrasive products.

TECHNICAL DATA

MODELS
INPUT CHARACTERISTICS
Power supply
Absorption during transmission
CHARACTERISTICS OF THE TRANSMITTER
Number of keys
Carrier frequency
Modulation
Compliant with directive
GENERAL
Operating temperature
Dimensions (W x H x D)
Weight (including the battery)
®
QUICK RESERVES THE RIGHT TO MODIFY THE TECHNICAL CHARACTERISTICS OF THE EQUIPMENT AND THE CONTENTS OF THIS MANUAL WITHOUT PRIOR NOTICE.
RRC P02/04 - REV002A
MAINTENANCE - TECHNICAL DATA
BATTERY
HOLDER
P02
2
CR2450 3V
LITHIUM BATTERY
CR2450 3V lithium battery
13 mA
434.420 Mhz
FSK
1999/5/CE (R&TTE)
from -15°C to +70°C
60 x 47 x 23 mm
34 g
