CHARACTERISTICS AND OPERATION

GB
RRC POCKET RADIO TRANSMITTER
The RCC pocket radio transmitter is a device which combined with a RRC radio receiver is used to control operation of devices
or accessories installed on recreational crafts.
The RRC radio system is a generic radio control whose failed operation must not cause damage to people, animals or
property.
The advantages offered by the RRC pocket radio transmitter are:
• Microcontroller-operated functions.
• Operating temperatures from -15°C to +70°C.
• FSK modulation and carrier frequency 434.420 Mhz.
• Transmission feedback and low battery indication by means of LED.
• Possibility to control more receivers with one transmitter.
• Two functions can be activated at the same time.
• Floating.
INSTALLATION
BEFORE USING THE RADIO TRANSMITTER, CAREFULLY READ THIS USER MANUAL. IN CASE OF
DOUBTS PLEASE CONTACT THE RETAILER OR QUICK
F
In case of discordance or errors in translation between the translated version and the original text in the Italian language,
reference will be made to the Italian or English text.
F
This device was designed and constructed for use on recreational crafts.
Other forms of use are not permitted without written authorization from the company Quick
The RRC pocket radio transmitter has been designed and manufactured for the purposes described in this user manual.
®
Quick is not liable for direct or indirect damages caused by an improper use of the radio control, due to an incorrect
installation or errors possibly present in this manual.
THE PACKAGE CONTAINS: pocket radio transmitter with battey included - lanyard - conditions of warranty - the present
manual of installation and use.

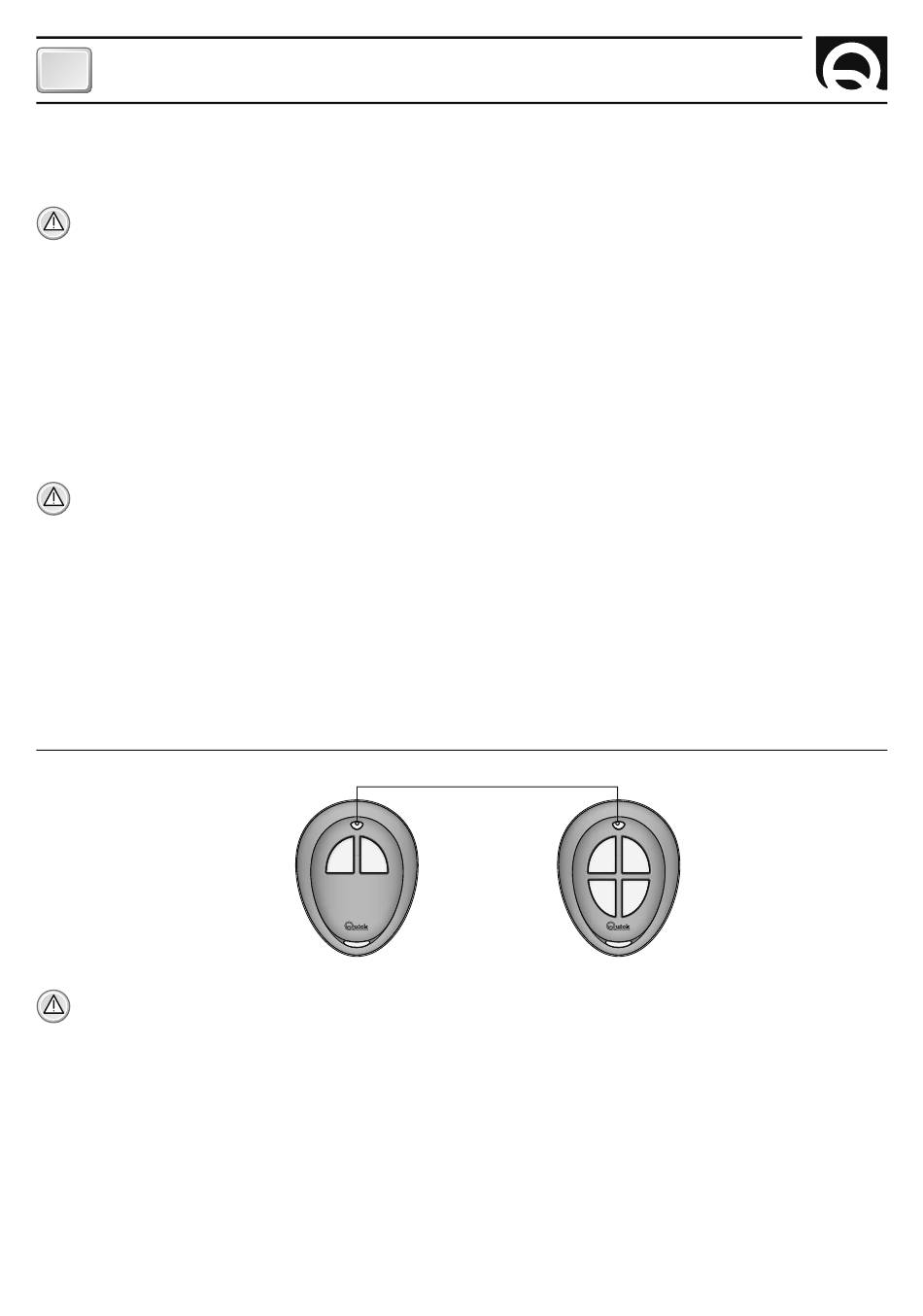

Pocket transmitter
model P02
WARNING: the transmitter needs to be programmed in the receiver's memory. To do this, follow the procedure shown
in the reveiver's user manual.
Power supply
The pocket transmitter is powered using a lithium CR2450 battery. To replace it, see the BATTERY REPLACEMENT paragraph.
Operational status
When any of the transmitter keys is pressed, the green transmission LED flashes quickly and signals that transmission has
taken place. It is possible to press up to two keys at the same time, while pressing 3 or more keys simultaneously cancels
transmission (transmission LED switched off).
Each key pressed corresponds to the activation of a relay on the receiver (see RRC radio receiver manual), which will stay
active as long as the key isn't released.
Low battery signal
It is recommended to replace the battery within a short period of time if the transmission LED is red during operation. The
residual autonomy time depends on the quality of the battery used.
6
® CUSTOMER SERVICE.
Transmission LED
model P04
® .
RRC P02/04 - REV002A
