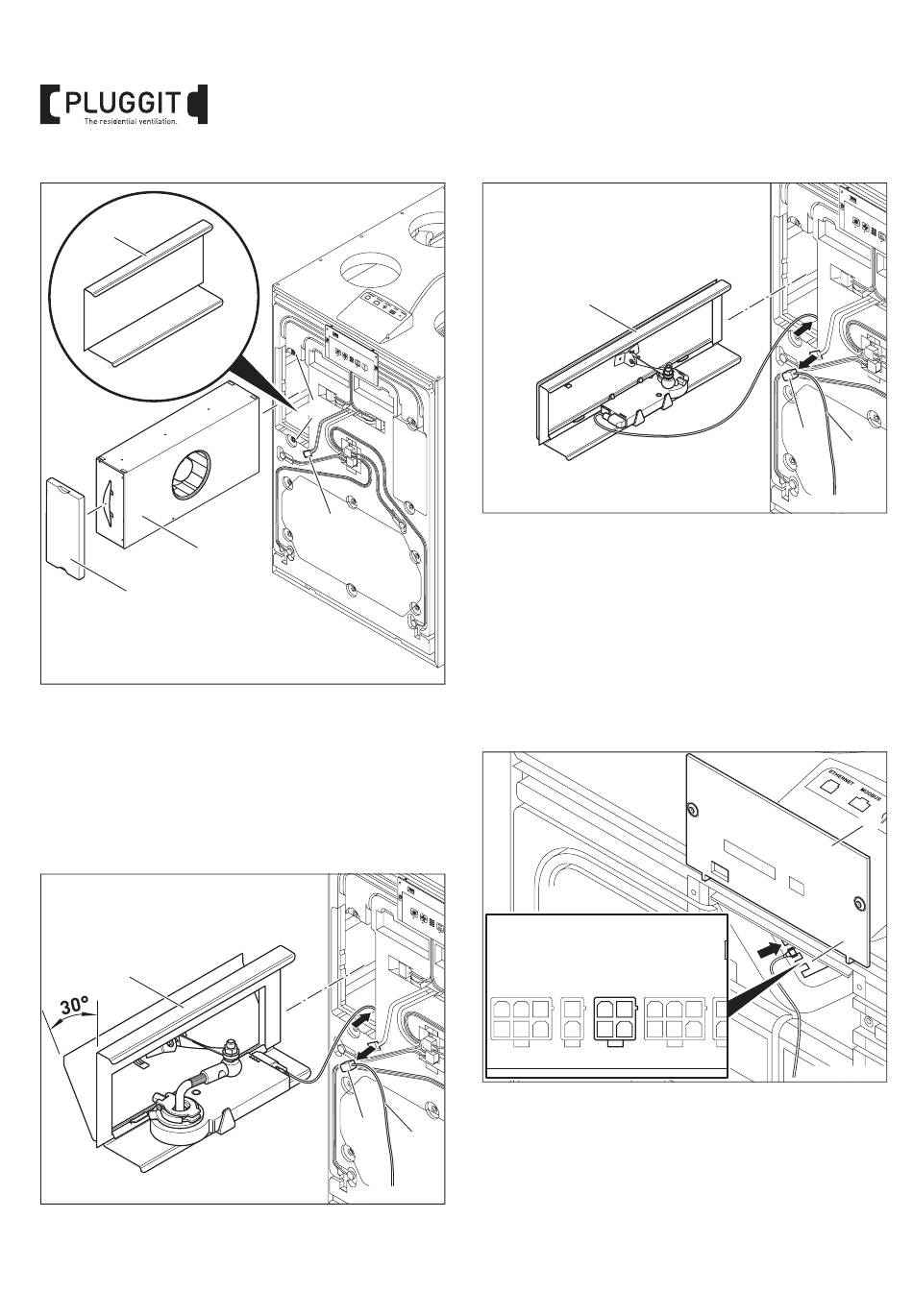

5. Remove rubber block (6).
6. Turn quick release fasteners (7) and remove EPS
panel (8).
7. Slightly pull ventilator box (9) out, loosen cable and pull
ventilator box (9) out completely.
8. Remove protective steel sheet (10) from the EPS casing
and dispose properly.
11
AP190
4
II bypass for Avent P190/P310/P460
7
6
9
M+P-26A-0915
6
M+P-26A-0916
11
AP310, AP460
9. Only with AP190:
Carefully open bypass (11) approx. 30 °
(Observe the enclosed OII).
10. Install bypass (11) and lay cable (12) through rubber
block (6) as shown.
11. Install rubber block (6).
12. Install ventilator box (9) in reversed order in the room
ventilation unit.
