Load Segments

Load segments are sets of receptacles that can be controlled by power
management software, providing an orderly shutdown and startup of
your equipment. For example, during a power outage, you can keep key
pieces of equipment running while you turn off other equipment. This
feature allows you to save battery power. See your power management
software manual for details.
NOTE If power management software is not used, the individual load segments cannot be
controlled.

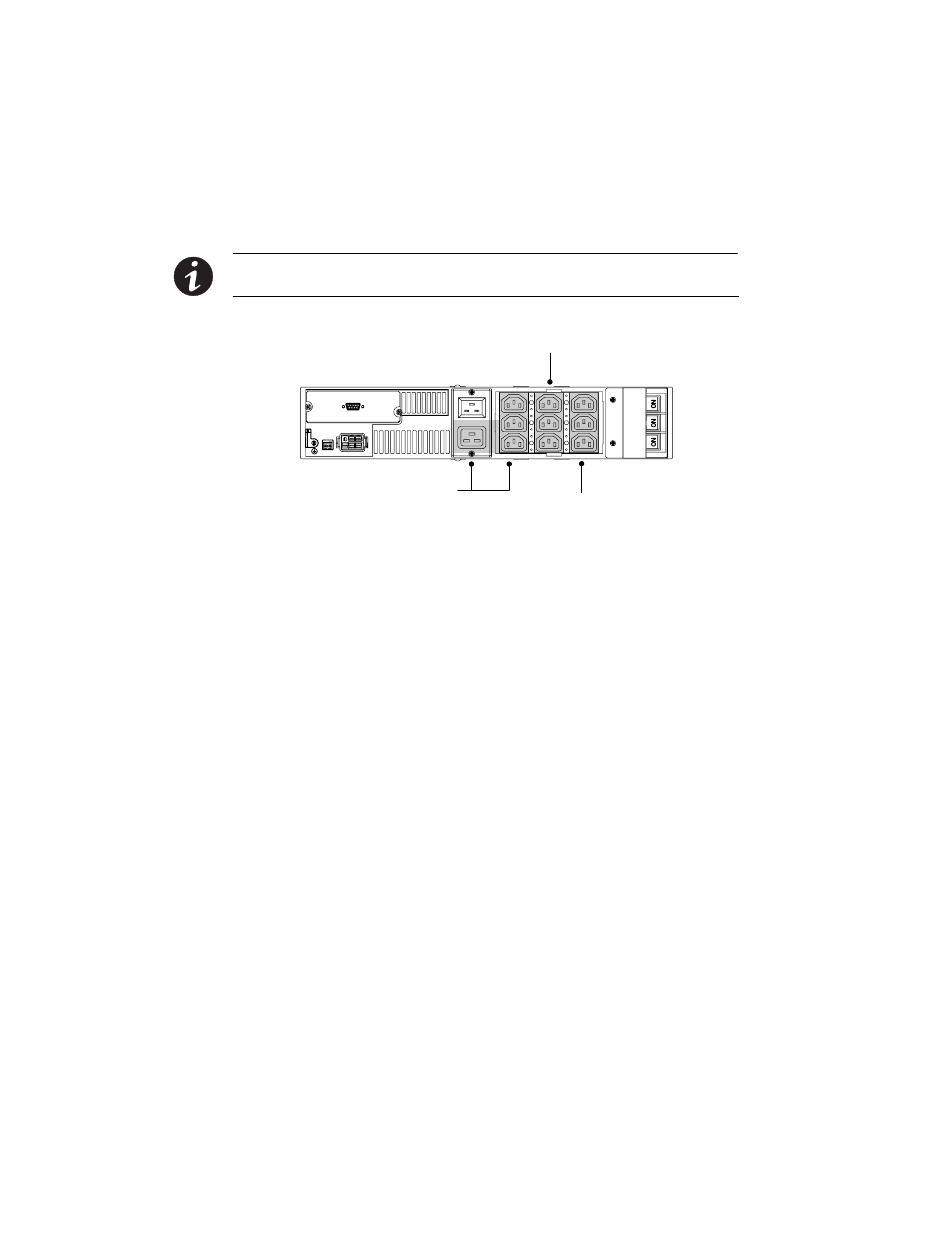

Each UPS has three load segments as shown in Figure 14.
Load Segment 2
Load Segment 1 Load Segment 3
Figure 14. UPS Load Segments
