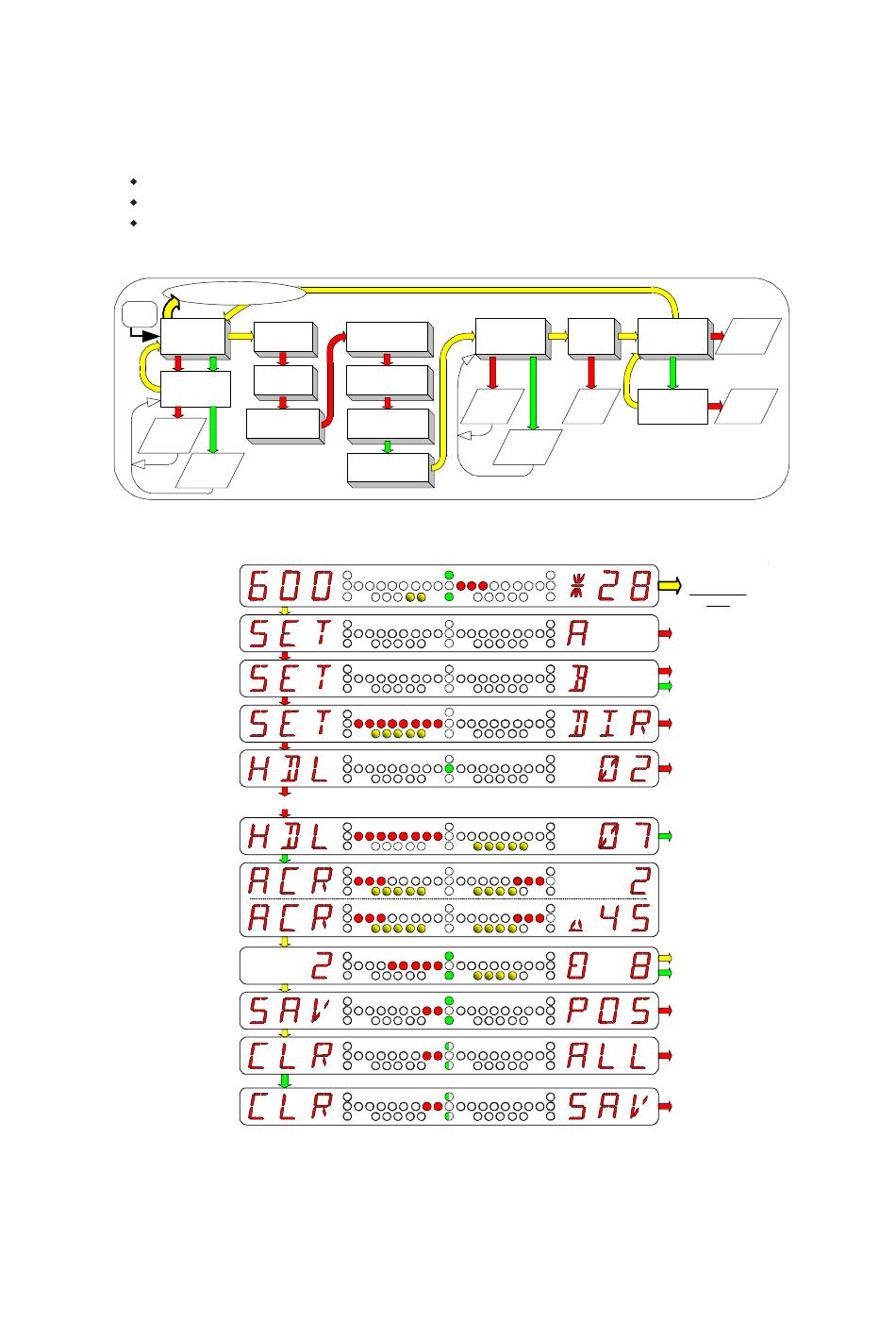

Schéma de navigation de menu de tournières combinées
Conditions du schéma n°3 de navigation de menu :
La mesure par ruban est désactivée
La commande des tournières est combinée (CMB), DIR est MAN
Les tournières et les marques A-B sont effacées
Configuration Mode
enter
Power
ON
RGL
600
BRT
SET DIR
Increase
Brightness
Decrease
Brightness
Main Screen
Mark A-B
Set Direction
Mark
Headlands
Display
Area
Swath
Navigation
Save
Current Position
DOWN goes to Clear
Saved Position
sub-menu
SET A
HDL 02
HDL 00
SET B
HDL 03...
HDL 01
HDL xx
Set Direction
ACR
Drive and press Select to mark Headland points 03...07
We are 8 feet right of Swath #2 and pointing 11° left of it.
Center green LED's indicate we are Outside of the Leave Zone
if there is a Saved Position
Skipped if a Position
Swath Number
is Saved
2
SAV
CLR ALL
Advance
Save
CLR SAV
Swath #
Position
Decrement
Position is Saved
Swath #
Operational Mode
Menu Navigation Diagram #3
Clear
ALL
Clear
Saved
Position
Skipped if no
press and hold
DOWN to enter
Configuration
Mode
SELECT
to mark A.
SELECT to mark B.
DOWN for temp B
SELECT
to Set Direction.
SELECT marks
HDL points.
DOWN marks
last
HDL point.
Area defined by
marked Headlands
is 2.45 acres
SELECT advances
DOWN decrements
swath.
SELECT
Saves
Current Position
SELECT
Clears ABC,
HDL, and
Saved Position
SELECT
Clears
Saved Position
only
