Eaton Powerware Série Guide D'installation page 52

INSTALLATION
REPO
Connector
36 ®
Eaton 9140 (9910-E82/E83) UPS Installation Guide for IBM
www.eaton.com/ibm
Communication
Port
USB Port
EBM
X-Slot
Battery
Communication
Connector
Bay
IEC 309-60A or 63A
Input Power Cord
(see Table 7)

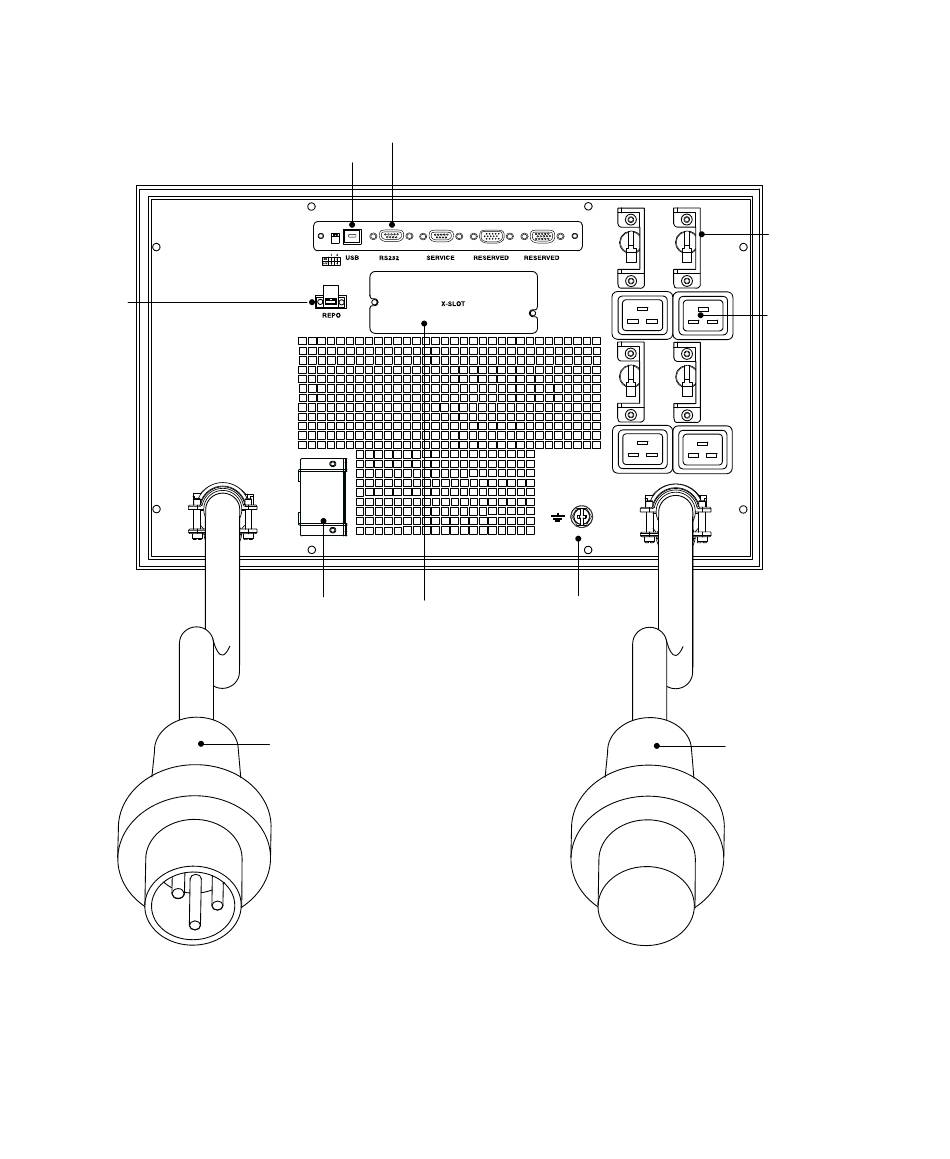

Figure 29. UPS Rear Panel
Ground
Bonding
Screw
S
®
Applications 164201715 Rev 2
(4) 20A/250V
Output
Circuit
Breakers
(4) C19
Output
Receptacles
IEC 309-60A or 63A
Output Power Cord
