3-7 FREE SPACES AROUND THE

MACHINE

EN
The feeder unit shall be positioned in
such a way that there is sufficient free
space around it to avoid the danger of
crushing for the operator against the
workpiece being machined and other
machines or load-bearing structures.
Then, according to the size of the
workpiece, increase the free space by
0.5 meters in all directions.
46
3-8 USING THE POWER FEEDER
UNIT ON A CIRCULAR-SAW
MACHINE
3-rollers power feeder unit
(STEFF 2034 - 2038 - 2038CI)
The feeder must be so positioned on
the circular saw that the saw is
immediately after the input rollers (B)
STEFF 2034 - 2038 - 2038CI
and (C).
4/6-rollers power feeder unit
(STEFF 2044 - 2048 - 2068)
The feeder must be assembled so that
the blade of the circular saw is
immediately after the input rollers (B)
and (C).

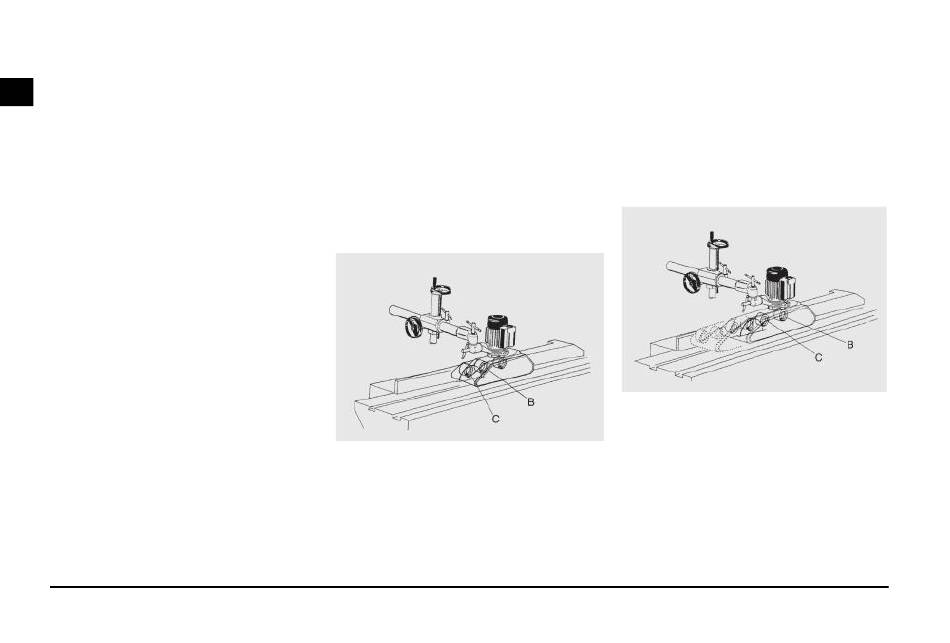

Fig.17
STEFF 2044 - 2048 - 2068
Fig.18
