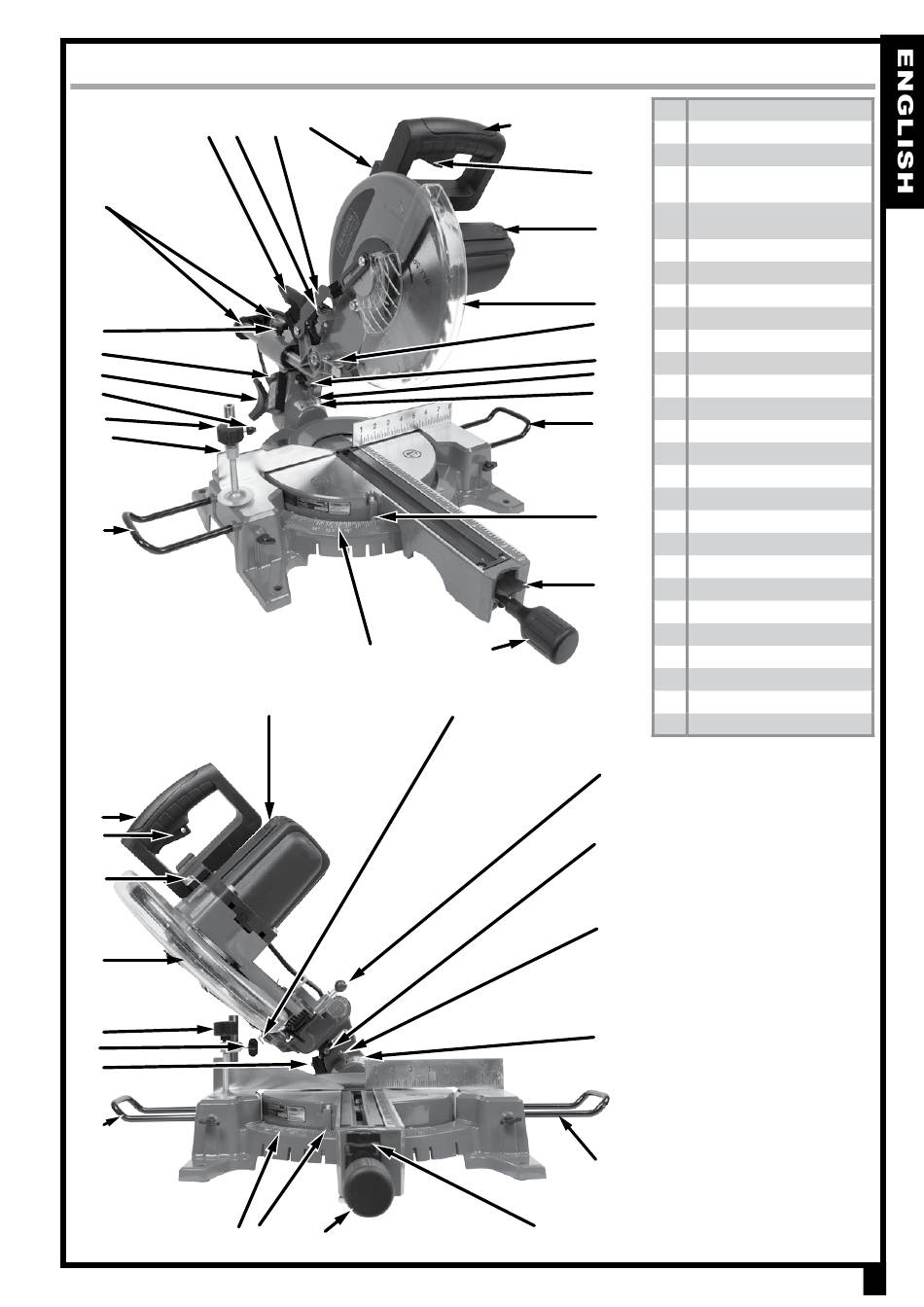

FUNCTIONAL DESCRIPTION

K AA
H
J
C
F
E
D
B
A
fig. 1
N
O
Q
R
D
E
C
A
fig. 2
Y
L M
Y
P
X W
N
O
P
R
Z
U
G
V
T
X
S
W
Z
I
U
G
V
T
S
A Left side table extension
B Hold-down clamp retainer
C Laser guide switch
D Hold-down clamp fine
height adjustment
E Hold-down clamp coarse
height adjustment
F Saw bevel locking knob
G Saw bevel angle indicator
H Slide rails
I Saw head lock knob
J Slide lock knob
K Dust bag
L Blade guard retraction arm
M Carry handle
N Horizontal cutting handle
O Trigger button
P Motor brush cap
Q Arbor lock button
R Retractable blade guard
S Miter angle lock lever
T Right side table extension
U Laser guide
V Bevel angle scale
W Miter setting handle
X Miter angle indicator
Y Miter angle scale
Z Dado stopper plate
AA Dado depth adjust screw
170825
