Technical diagrams | 31
motor battery bus
motor
9002463 Powermodule R-net 120A mounting holes
9006379B
Figure 9

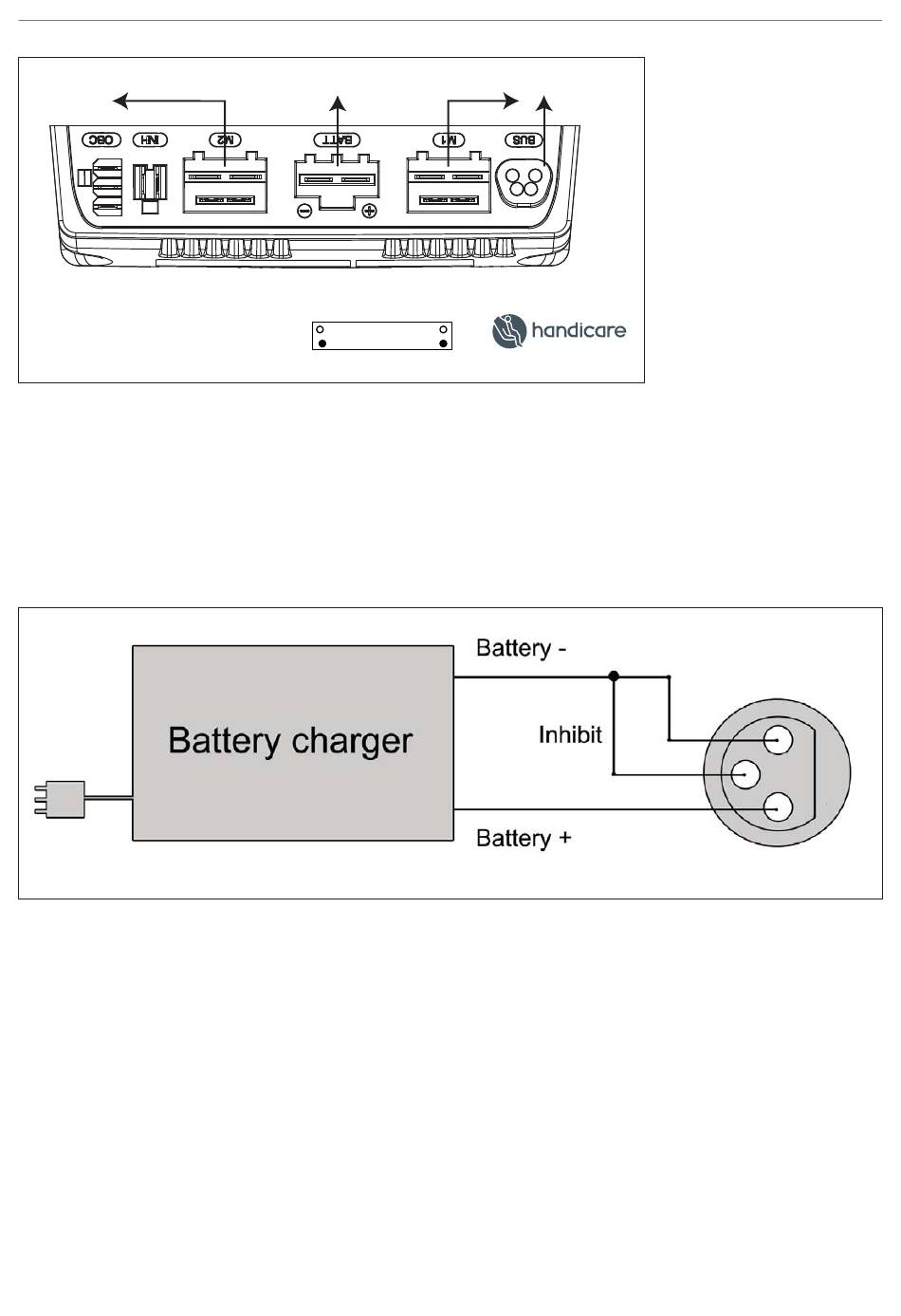

9.2 Technical diagram battery charger

The controller's standard confi guration includes a '3-pin connection'. Ensure that the battery charger
is properly connected so that the 'negative pole' and the 'inhibit' are connected, enabling the system to
prevent the wheelchair from moving when the battery is being charged.
Figure 10
