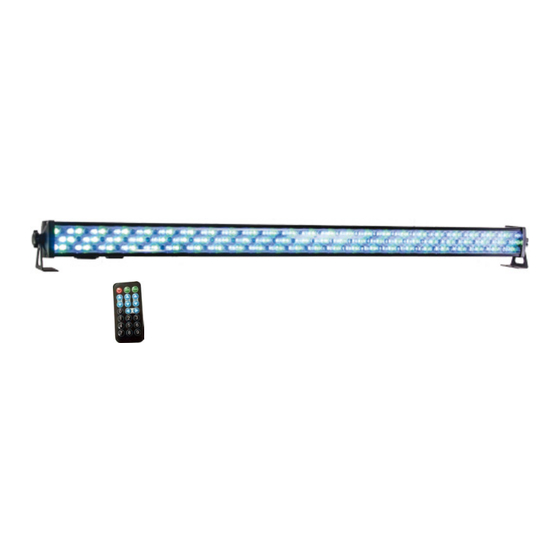

LEDBAR252-RC
GB -USER MANUAL
F - MANUEL D'UTILISATION
D - BEDIENUNGSANLEITUNG
P- MANUAL DE INSTRUÇÕES
SLO - NAVODILA ZA UPORABO
NL – HANDLEIDING
E – MANUAL DE USO
LEDBAR252-RC
1
Publicité
Table des Matières
Manuels Connexes pour Ibiza Light LEDBAR252-RC
Sommaire des Matières pour Ibiza Light LEDBAR252-RC
- Page 1 LEDBAR252-RC GB -USER MANUAL F - MANUEL D’UTILISATION D - BEDIENUNGSANLEITUNG P- MANUAL DE INSTRUÇÕES SLO - NAVODILA ZA UPORABO NL – HANDLEIDING E – MANUAL DE USO IMPORTANT NOTE: Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.
-
Page 2: Before You Begin
10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. © Copyright LOTRONIC 2016 LEDBAR252-RC... -
Page 3: Auto Mode
AUTO MODE ITEM Display Function At.01 Static Red At.02 Static Green At.03 Static Blue At.04 Static Yellow At.05 Static Cyan At.06 Static Purple At.07 Static White At.08 At.09 At.10 At.11 At.12 At.13 At.14 At.15 At.16 © Copyright LOTRONIC 2016 LEDBAR252-RC... -
Page 4: Edit Mode
Sound Mode 01 Pr.18 Sound Mode 02 DMX MODES (2 / 4 / 25 Channels) DMX Mode: d-p3 (2 channels) ITEM DMX value Function 10-19 20-29 Green 30-39 Blue 0-255 Dimmer 40-49 Yellow 50-59 Cyan © Copyright LOTRONIC 2016 LEDBAR252-RC... - Page 5 CH18 CH19 CH20 CH21 R5(5/8) G5 (5/8) B5 (5/8) R6 (6/8) G6 (6/8) B6 (6/8) R7 (7/8) 0-255 0-255 0-255 0-255 0-255 0-255 0-255 Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer CH22 CH23 CH24 CH25 © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 6 Consumption ......................... 50W Channels ........................2/4/25 LED: ..............240 x 10mm RGB LED (80R, 80G, 80B) Function: ......DMX512, Auto-run, Sound active, Master-slave, Edit, remote Dimensions per unit: ................1010 x 65 x 65mm Weight: ........................900g © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 7 Utilisez en plus un câble de sécurité qui peut porter 12 fois le poids de l’appareil. L’appareil doit être fixé par des professionnels à en endroit où il est hors de portée des personnes et en © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 8 SLAV AUTO MODE ITEM Display Fonction At.01 Rouge statique At.02 Vert statique At.03 Bleu statique At.04 Jaune statique At.05 Cyan statique At.06 Pourpre statique At.07 Blanc statique At.08 At.09 At.10 At.11 At.12 At.13 At.14 At.15 © Copyright LOTRONIC 2016 LEDBAR252-RC...
-
Page 9: Mode Edition
Mode musical 01 Pr.18 Mode musical 02 DMX MODES (2 / 4 / 25 canaux) DMX Mode: d-p3 (2 canaux) ITEM Valeur DMX Fonction Eteint 10-19 Rouge 20-29 Vert 0-255 Dimmer 30-39 Bleu 40-49 Jaune © Copyright LOTRONIC 2016 LEDBAR252-RC... - Page 10 Dimmer CH15 CH16 CH17 CH18 CH19 CH20 CH21 R5(5/8) G5 (5/8) B5 (5/8) R6 (6/8) G6 (6/8) B6 (6/8) R7 (7/8) 0-255 0-255 0-255 0-255 0-255 0-255 0-255 Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 11 LED: .................. 240 LED de 10mm : 80 rouges, 80 vertes, 80 bleues Angle des rayons ............................30° Fonction: ......Automatique, activation par le son, DMX, maître-esclave, édition + télécommande Dimensions: .......................... 1010 x 65 x 65mm Poids: ................................ 0,9 kg © Copyright LOTRONIC 2016 LEDBAR252-RC...
-
Page 12: Sicherheitshinweise
Eigengewicht des Geräts tragen kann. Benutzen Sie zusätzlich ein Sicherheitskabel, das 12-mal das Eigengewicht tragen kann. Das Gerät muss von einem Fachmann installiert werden. Es muss außerhalb der Reichweite von Personen und nicht oberhalb von begangenen Wegen installiert werden. © Copyright LOTRONIC 2016 LEDBAR252-RC... - Page 13 AUTO MODE ITEM Display Funktion At.01 Statisch Rot At.02 Statisch Grün At.03 Statisch Blau At.04 Statisch Yellow At.05 Statisch Cyan At.06 Statisch Purple At.07 Statisch Weiss At.08 At.09 At.10 At.11 At.12 At.13 At.14 At.15 At.16 © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 14 Sound Mode 01 Pr.18 Sound Mode 02 DMX MODES (2 / 4 / 25 Kanäle) DMX Mode: d-p3 (2 Kanäle) ITEM DMX Wert Funktion 10-19 20-29 Grün 30-39 Blau 0-255 Dimmer 40-49 Gelb 50-59 Cyan © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 15 CH18 CH19 CH20 CH21 R5(5/8) G5 (5/8) B5 (5/8) R6 (6/8) G6 (6/8) B6 (6/8) R7 (7/8) 0-255 0-255 0-255 0-255 0-255 0-255 0-255 Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer CH22 CH23 CH24 CH25 © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 16 Abmessungen: ..................1010 x 65 x 65mm Gewicht: ........................0,9kg WICHTIGER HINWEIS: Elektrogeräte gehören nicht in den Hausmüll. Sie müssen in speziellen Betrieben recycelt werden. Bringen Sie sie zu einer speziellen Entsorgungsstelle für Elektrokleingeräte (Wertstoffhof)! © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 17 Garantir sempre que a estrutura onde está a fazer a instalação é segura e é capaz de suportar um peso até 10 vezes o peso da unidade. Também © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 18 Pr.01 -> Pr.18 -> S.000-255 SLAV AUTO MODE ITEM Display Function At.01 Static Red At.02 Static Green At.03 Static Blue At.04 Static Yellow At.05 Static Cyan At.06 Static Purple At.07 Static White At.08 At.09 At.10 At.11 At.12 At.13 At.14 © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 19 Pr.14 Pr.15 Pr.16 Pr.17 Sound Mode 01 Pr.18 Sound Mode 02 DMX MODES (2 / 4 / 25 Channels) DMX Mode: d-p3 (2 channels) ITEM DMX value Function 10-19 20-29 Green 0-255 Dimmer 30-39 Blue © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 20 0-255 Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer CH15 CH16 CH17 CH18 CH19 CH20 CH21 R5(5/8) G5 (5/8) B5 (5/8) R6 (6/8) G6 (6/8) B6 (6/8) R7 (7/8) 0-255 0-255 0-255 0-255 0-255 0-255 0-255 © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 21 LED: ............240 x 10mm RGB: 80 vermelho, 80 azul, 80 verde Ângulo do feixe ........................ 30° Função: ....Auto-run, Activação Sonora, DMX, master-slave, edit, controlo remoto Dimensões por unidade: ............... 1010 x 65 x 65mm Peso: ........................... 0,9kg © Copyright LOTRONIC 2016 LEDBAR252-RC...
-
Page 22: Preden Začnete
Vstopite v meni s pritiskom na tipko MENU in izberite točko menija preko tipk UP / DOWN. Pritisnite tipko ENTER, da potrdite svojo izbiro. Povečajte ali zmanjšajte vrednosti prek tipk UP / DOWN. Pritisnite ENTER za © Copyright LOTRONIC 2016 LEDBAR252-RC... - Page 23 ITEM Display Function At.01 Static Red At.02 Static Green At.03 Static Blue At.04 Static Yellow At.05 Static Cyan At.06 Static Purple At.07 Static White At.08 At.09 At.10 At.11 At.12 At.13 At.14 At.15 At.16 At.17 At.18 At.19 At.20 © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 24 DMX MODES (2 / 4 / 25 Channels) DMX Mode: d-p3 (2 channels) ITEM DMX value Function 10-19 20-29 Green 30-39 Blue 40-49 Yellow 0-255 Dimmer 50-59 Cyan 60-69 Purple 70-79 White 80-89 PROGRAM04 0-255 Slow -> Fast 90-99 PROGRAM05 © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 25 R7 (7/8) 0-255 0-255 0-255 0-255 0-255 0-255 0-255 Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer CH22 CH23 CH24 CH25 B7 (7/8) R8 (8/8) G8 (8/8) B8 (8/8) 0-255 0-255 0-255 0-255 Dimmer Dimmer Dimmer Dimmer © Copyright LOTRONIC 2016 LEDBAR252-RC...
- Page 26 Tehnični podatki Napajanje:..................AC220～240V 50/60Hz Poraba ........................... 50W LED: ....................240 x 10mm RGB LEDs Delovanje: ......Samodejno,Zvočna aktivacija, DMX, master-slave, edit, daljinec Dimenzije enote: ................... 1010 x 65 x 65mm Teža: ........................... 0,9kg Za Slovenijo: © Copyright LOTRONIC 2016 LEDBAR252-RC...
-
