Installation and Operating Instructions
EN

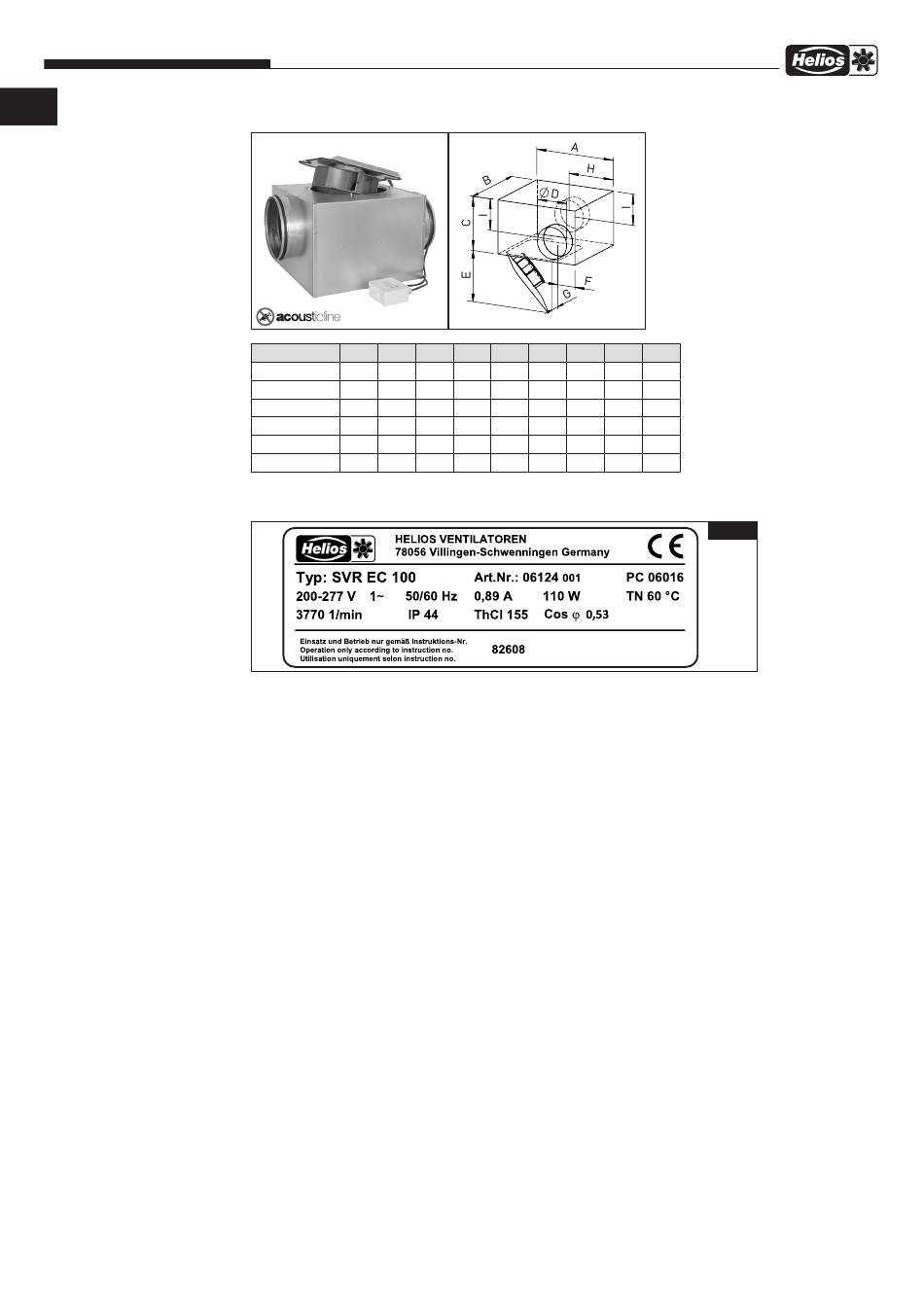

Flat EC Centrifugal Fan Boxes – SlimVent SV.. EC ...
A B
330 314
SVS EC 125
390 362
SVS EC 160 A
SVS EC 160 B 390 362
390 372
SVS EC 200
391 392
SVS EC 250
446 427
SVS EC 315
3.1

Type plate

Example:
ä
ü
Æ

Key for fan type plate:
ò Manufacturer's address
ù Fan label:
CE = CE mark
ä Version:
SVR EC = type designation
100 = size
ë Item number
ö Production code / year of manuf.
The fan can be clearly identified by the ref. no., SNR (serial number) and PC (production code) numbers.

3.1.1 Motor type plate

Technical data about the motor can be found on the motor type plate!
Dimensions in mm
C D E F G
213 ø125 310 73 48
248 ø160 368 91 48
248 ø160 368 91 48
288 ø200 368 111 48
339 ø250 389 136 48
426 ø315 414 169 48
ò
ë
Å î

ü Nominal voltage or voltage range / Frequency
Å Nominal current
î Total input power
Ø max. flow medium temp. at rated operation
Æ Nominal speed
 Protection class / motor insulation class / cosine
 Installation and operating instructions/print no.
4
SlimVent – Flat EC Centrifugal Fan Box
with variable speed control
Series
SVS EC 125
SVS EC 160 A
SVS EC 160 B
SVS EC 200
SVS EC 250
SVS EC 315
Energy-efficient, backward-curved centri-
fugal impeller. noise-insulated with 50 mm
thick mineral wool lining.
H I
190 124
220 142
220 142
220 162
196 187
223 220
Fig.1
ù
ö
Ø
Ref. no. 0016
Ref. no. 0017
Ref. no. 0018
Ref. no. 0019
Ref. no. 6125
Ref. no. 6126
