Operating Instructions
DOOR HANDLE ASSEMBLY
The door handle is shipped seperately from the door to protect it from damage. It must be installed by
the end user. We recommend having two people complete the installation to avoid personal injury or
damage to property.
Note:
•
Place the unit carefully on its back
•
To avoid scratching the front panel, place a soft
cloth or towel against the panel while installing
the door handle
•
Set screws are pre-installed in the handle
•
The handle package contains the handle and
hardware bag
•
The hardware bag contains a hex key and two
extra set screws
•
handle installation should take approximately 5
minutes

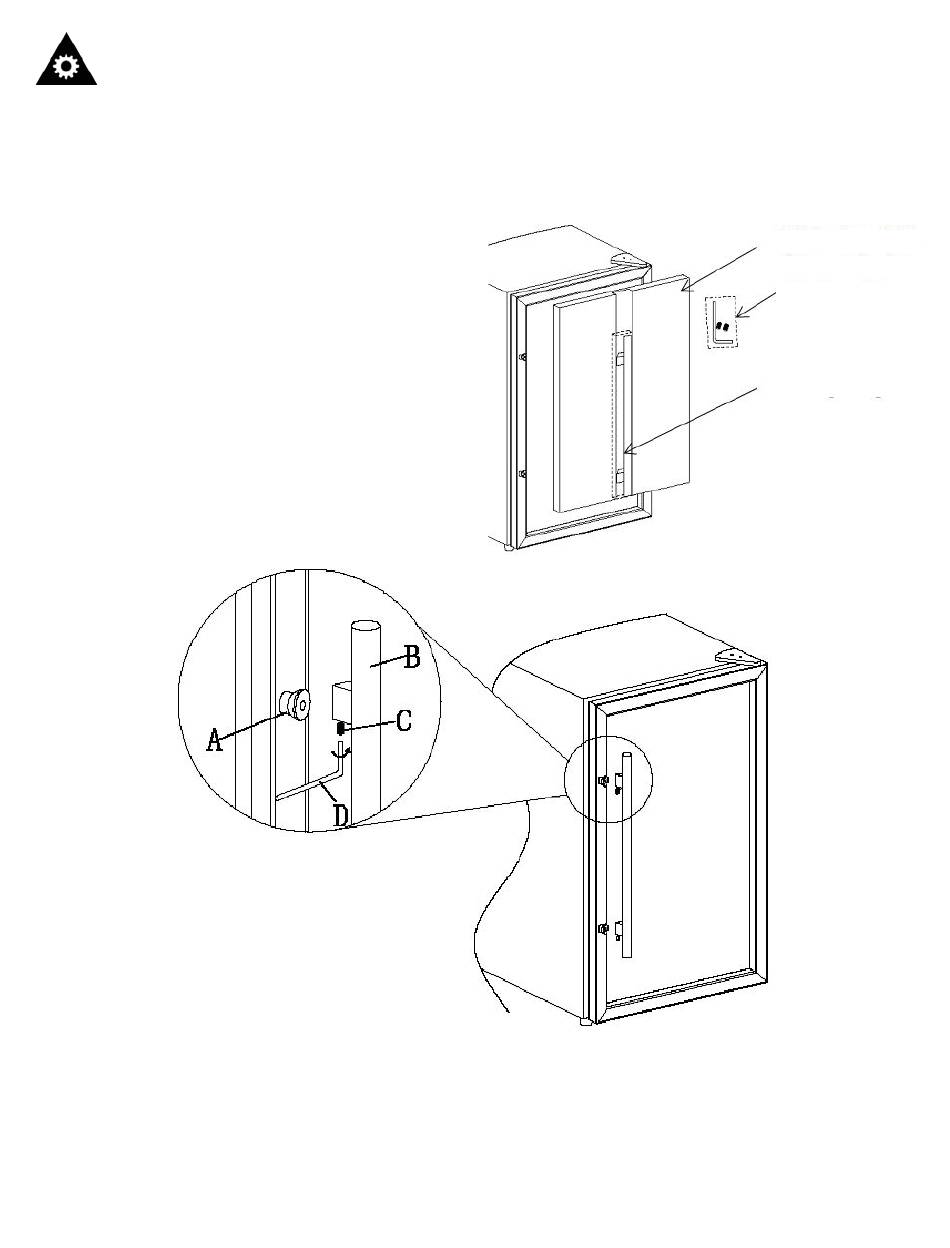

A: Mounting stud
B: Door handle
C: Set screw
D: Hex key
1. Remove the door handle and hardware bag containing the hex key from the package.
2. Place the handle on the mounting studs. The set screws should face down when installed
correctly.
3. Push the door handle tightly against the door.
4. Insert the short end of the hex key into the set screw and tighten 1/4 turn past snug. Set
screw will not be recessed into the handle.
5. Repeat step 4 for other set screw.
6. Keep the hex key with the installation instructions for future use.
8
Package front foam
Hardware bag
Handle package
