SOFTWARE RESET:

Software reset is used to erase ALL temperature events, and to
return all user-adjustable software settings back to their original
factory default settings.
To Perform a Software Rest:
1. Verify the thermostat's keypad is not locked.
2. Move TEMPERATURE switch to OFF.
3. Press and hold the UP, DOWN, and NEXT buttons all at the
same time for at least 5 seconds. When the LCD display
screen will become fully populated let go of all buttons at that
point the screen will return to normal.
The clock will have to be changed to match the current day and
time.
T. Thermostat Battery Replacement
This thermostat is powered by two "AA" Alkaline batteries. The
batteries should be replaced AT LEAST once per year to ensure
reliable operation or sooner if the LO BATT appears on the display
screen. The batteries are located on the back of the thermostat's
circuit board. The front portion of the thermostat can be removed
from the back half by using the tabs on the top edge of the
thermostat housing (Figure 16.1).

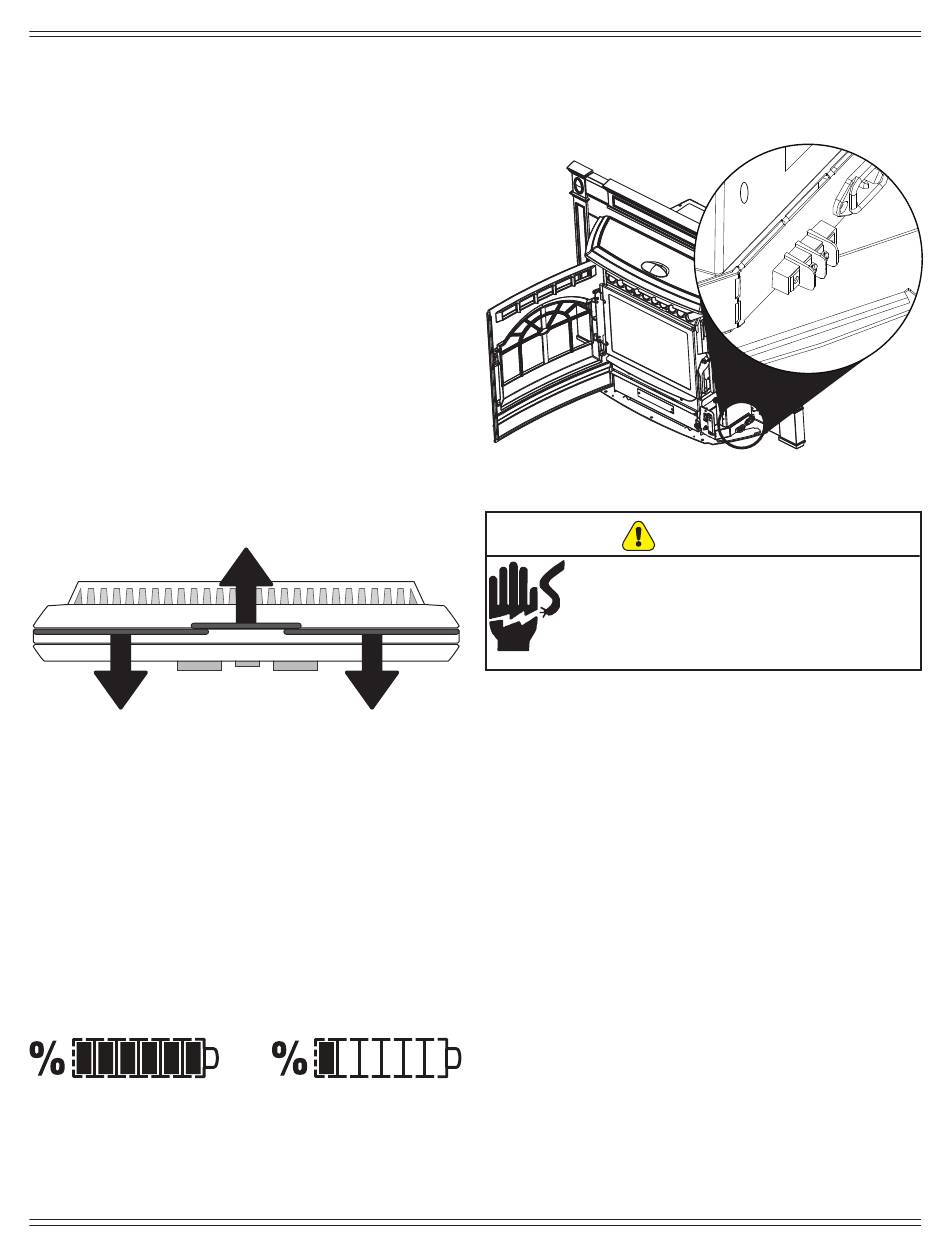

Figure 16.1
When installing new batteries, it is recommended using only
brand new "AA" size alkaline batteries. Please verify the polarity
markings shown in the battery compartment before adding
batteries to the compartment. When finished, line up the front of
the thermostat to the base, and firmly press together to securely
latch the front and back halves together properly.
BATTERY GRAPHIC:
Anytime time the batteries are physically present in the
thermostat, there will be a visual indicator showing the life of the
battery. This will appear on the display screen (Figures 16.2 &
16.3).
Figure 16.2 - Full
battery icon
16
Figure 16.3 - Low
battery icon
FC7022-515I
CONNECT THERMOSTAT WIRES TO APPLIANCE:
There is a 4 screw terminal block located on the back lower left
corner of the stove directly above the power cord inlet. The center
2 screws are for the thermostat wires (Figure 16.4).
Figure 16.4
CAUTION
Shock hazard.
• Do NOT remove grounding prong from plug.
• Plug directly into properly grounded 3 prong
receptacle.
• Route cord away from appliance.
• Do NOT route cord under or in front of appliance.
5 Février, 2019
