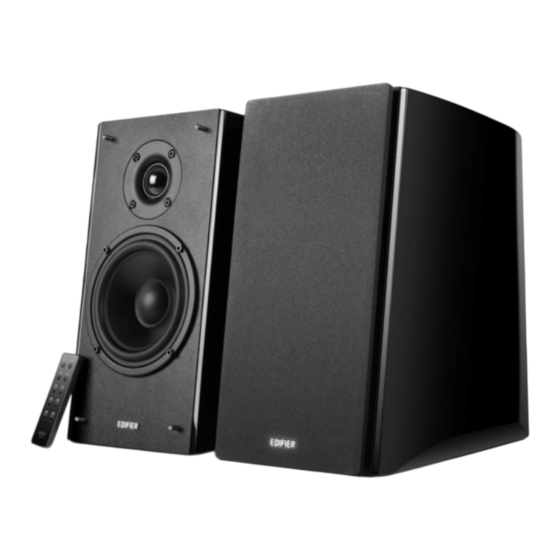

- Page 1 R2000DB Multimedia Speaker User manual | Manuel d’utilisateur | Manual de usuario | Bedienungsanleitung | Manuale dell’utente | Manual do utilizador...
-
Page 2: Important Safety Instruction
Important safety instruction products ent, personal computer, and mini home theater systems with great sound performance. Please read this manual to get the most out of t his system. To prevent the risk of electric shock, The exclamation point inside the triangle thetriangle, is intended to alert the user do not remove cover (or back). - Page 3 Important safety instruction is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
-
Page 4: Box Contents
Unpack the Box Box Contents: Passive speaker Infrared receiver Remote control Active speaker 3.5mm to dual RCA audio cable Dual RCA to dual RCA audio cable Fiber optical connecting cable User Manual Speaker connecting cable English... - Page 5 Illustrations Line In 1 Line In 2 R2000DB Multimedia Speaker Input Indicator(LED) GREEN Line In 1/Line In 2 BLUE L Speaker Out Power Speaker In ① Master volume dial Press in to cycle input sources: Line in1/Line in2/ Optical/Bluetooth ② RCA connectors for AUX input ③...
-
Page 6: Remote Control
Illustrations Remote control ① Mute ② ON/Standby ③ Volume decrease ④ Volume increase ⑤ Optical input ⑥ Bluetooth input LINE1 LINE2 ⑦ Line in1 Classic ⑧ Line in2 Dynamic ⑨ Classic Mode ⑩ Dynamic Mode Battery loading: Please refer to the illustration to open the battery compartment, insert the CR 2025 battery and close the compartment. - Page 7 Connectivity Line In 1 Line In 2 R2000DB Multimedia Speaker Input Indicator(LED) GREEN Line In 1/Line In 2 BLUE L Speaker Out Power Speaker In Note: Only the standard PCM audio signals of sampling clock (44.1/48/96KHz) are adaptable in optical mode...
- Page 8 EDIFIER R2000DB setup ① Turn on R2000DB speakers and switch to Bluetooth mode by pressing the Bluetooth button on the remote or pushing the volume dial on the back panel of the active speaker until the indicator LED turns blue.
- Page 9 Total power output: RMS 24W × 2 (treble) + 36W × 2(bass) (DRC ON) Signal to noise ratio: ≥ 85 dBA Frequency response: 50Hz ~ 20 KHz (+/-3db) Input sensitivity: Line in1: 800 mV ± 50 mV Line in2: 600 mV ± 50 mV OPT: 500 mFFs ±...
- Page 10 • source. If you want to know more about EDIFIER, please visit our website at www.edifier.com For Edifier warranty queries, please visit the relevant country page on our www.edifier.com and review the section Warranty Terms. USA and Canada : service@edifier.ca South America: Please visit www.edifier.com (English) or www.edifierla.com (Spanish/Portuguese) for local...
-
Page 11: Consignes De Securite Importantes
Consignes de securite importantes umidité. satisfaire le besoin de nos clients inéma une grande performance Risque d’électrocution ne pas ouvrir Le point d’exclamation à l’intérieur d’un l’intérieur d’un triangle équilatéral informe électriques, ne pas retirer le couvercle triangle équilatéral informe l’utilisateur de l’utilisateur de la présence d’une tension non (ou l’arrière). -
Page 12: Déballage Du Carton
Déballage du carton Contenu de l’emballage: Haut-parleur Passif Récepteur infrarouge Télécommande Haut-parleur Principal Câble audio de 3,5 mm - double fiche RCA Câbles audio RCA-double RCA Câble de branchement de fibre optique audio Manuel d’utilisation Fil de haut-parleur Français... - Page 13 Illustrations Line In 1 Line In 2 R2000DB Multimedia Speaker Input Indicator(LED) GREEN Line In 1/Line In 2 BLUE L Speaker Out Power Speaker In ① Touche principale du volume Line in1/Line in2/OPT/Bluetooth: Appuyer une fois ② Port d’entrée de connexion audio ③...
-
Page 14: Télécommande
Illustrations Télécommande ① Touche sourdine ② Mise en veille/mise en marche ③ Baisser le volume ④ Augmenter le volume ⑤ OPT ⑥ Bluetooth LINE1 LINE2 ⑦ Line in1 Classic Dynamic ⑧ Line in2 ⑨ Mode Classic ⑩ Mode Dynamic Installation de la pile : Veuillez vous reporter à... -
Page 15: Connexion
Connexion Line In 1 Line In 2 R2000DB Multimedia Speaker Input Indicator(LED) GREEN Line In 1/Line In 2 BLUE L Speaker Out Power Speaker In Remarque: Seuls les signaux audio PCM standards de l'horloge d'échantillonnage (44,1/48/96 kHz) sont adaptables en mode optique. - Page 16 ① Réglez votre appareil (téléphone mobile, tablette, lecteur MP3/MP4, etc.) pour rechercher et sélectionner « EDIFIER R2000DB ». ② Appariez votre appareil avec « EDIFIER R2000DB ». ③ Lisez le son sur votre appareil et réglez le volume à votre convenance.
-
Page 17: Caractéristiques
Caractéristiques Puissance de sortie: RMS 24W × 2 (aigus) + 36W × 2 (graves) (DRC Marche) Signal au niveau de bruit: ≥ 85dBA Réponse de fréquence: 50Hz ~ 20KHz (+/-3dB) Sensibilité d’entrée: Line in1: 800mV ± 50mV Line in2: 600mV ± 50mV OPT: 500 mFFs ±... -
Page 18: Dépannage
Asie, Europe, Océanie: Visitez notre site web: , ou écrivez au service d'assistance d'EDIFIER à l'adresse: → Cher client, merci d'avoir acheté ce produit d'EDIFIER.Pour la garantie d'EDIFIER applicable à ce produit, nous vous invitons à visiter le site web d'EDIFIER Canada/USA/Mexique: , Email: Vous pouvez également nous appeler sans frais au : 1-877-EDIFIER (334-3437) au Canada,1-800-688-7406... -
Page 19: Instrucciones De Seguridad Importantes
ADVERTENCIA: Para reducir el riesgo de fuego o descarga eléctrica, no exponga este aparato a la lluvia o la humedad. Gracias por comprar éste producto Edifier. Desde hace varias generaciones, es la meta de Edifier proporcionar altavoces potentes para satisfacer las necesidades de nuestros consumidores finales, incluso de los más exigentes. -
Page 20: Contenido De La Caja
Desembalaje de la Caja Contenido de la caja: Parlante segundario Receptor infrarrojos Control remoto Parlante principal Cable de conexión de audio RCA dual de 3,5 mm Cable de audio (doble RCA a doble RCA) Cable de conexión de audio de fibra óptica Manual de usuario Cables para altavoces Español... - Page 21 Ilustraciones Line In 1 Line In 2 R2000DB Multimedia Speaker Input Indicator(LED) GREEN Line In 1/Line In 2 BLUE L Speaker Out Power Speaker In ① Selector de volumen maestro Line in1/Line in2/OPT/Bluetooth: Pulsar una vez ② Puerto de conector de entrada de audio ③...
-
Page 22: Control Remoto
Ilustraciones Control remoto ① Tecla de silencio ② Modo de espera/encendido ③ Descenso volumen ④ Aumento volumen ⑤ OPT ⑥ Bluetooth LINE1 LINE2 ⑦ Line in1 Classic Dynamic ⑧ Line in2 ⑨ Modo Classic ⑩ Modo Dynamic Carga de batería: Consulte la ilustración para abrir el compartimento de la batería, insertar la batería CR 2025 y cerrar el compartimento. - Page 23 Conectividad Line In 1 Line In 2 R2000DB Multimedia Speaker Input Indicator(LED) GREEN Line In 1/Line In 2 BLUE L Speaker Out Power Speaker In Nota: Solo las señales de audio PCM estándar del reloj de muestreo (44,1/48/96 KHz) se pueden adaptar en el modo óptico.
- Page 24 ① Configure su dispositivo (teléfono móvil, tableta, reproductor MP3/MP4, etc.) para que busque y seleccione “EDIFIER R2000DB”. ② Sincronice el dispositivo con “EDIFIER R2000DB”. ③ Reproduzca el audio en el dispositivo y ajuste el volumen al nivel deseado. ④ Para desconectar el Bluetooth: Mantener pulsado Nota: 1.
- Page 25 Salida de suministro eléctrico: RMS 24W × 2 (agudos) + 36W × 2 (graves) (DRC Encendido) Ratio señal a ruido: ≥ 85dBA Respuesta de frecuencia: 50Hz ~ 20KHz (+/-3dB) Sensibilidad de entrada: Line in1: 800 mV ± 50 mV Line in2: 600 mV ± 50 mV OPT: 500 mFFs ±...
-
Page 26: Resolución De Problemas
Visite nuestro sitio Web en: , o escriba un correo electrónico al Servicio Técnico de EDIFIER a la → Estimado cliente, gracias por adquirir este producto de EDIFIER. Para la garantía de EDIFIER correspondiente a este producto, visite el sitio Web de EDIFIER Canadá/EE. -
Page 27: Wichtige Sicherheitshinweise
WARNUNG: Um das Risiko von Feuer oder Stromschlag zu vermeiden, dieses Gerät keinem Regen oder Feuchtigkeit aussetzen. Vielen Dank, dass Sie sich für ein Produkt von Edifier entschieden haben. Seit Generationen liefern wir bei Edifier aktive Lautsprecher zur Zufriedenheit unserer Kunden, selbst mit den höchsten Anforderungen. Dieses Produkt kann an Unterhaltungselektronik, Computer oder Heimkino angeschlossen werden und liefert einen hervorragenden Sound. - Page 28 Den Karton auspacken Verpackungsinhalt: Passiven Lautsprecher Infrarotempfänger Fernbedienung Aktiven lautsprecher Audioanschlusskabel (3,5mm zu Doppel-RCA) 2RCA~2RCA Lautsprecher-Anschlusskabel Glasfaser-Audioanschlusskabel Bedienungsanleitung Lautsprecherkabel Deutsch...
- Page 29 Produktabbildungen Line In 1 Line In 2 R2000DB Multimedia Speaker Input Indicator(LED) GREEN Line In 1/Line In 2 BLUE L Speaker Out Power Speaker In ① Lautstärkeregler Line in1/Line in2/OPT/Bluetooth: Einmal drücken ② Audioeingänge ③ Optischer Eingang ④ Höhenregler ⑤ Bassregler ⑥...
-
Page 30: Batterie Einlegen
Abbildungen Fernbedienung ① Mute-Taste ② Bereitschaft/Ein ③ Lautstärke verringern ④ Lautstärke erhöhen ⑤ OPT ⑥ Bluetooth LINE1 LINE2 ⑦ Line in1 ⑧ Line in2 Classic Dynamic ⑨ Classic modus ⑩ Dynamic modus Batterie einlegen: die CR 2025 Batterie ein und schließen Sie das Fach. Hinweise: 1. - Page 31 Konnektivität Line In 1 Line In 2 R2000DB Multimedia Speaker Input Indicator(LED) GREEN Line In 1/Line In 2 BLUE L Speaker Out Power Speaker In Anmerkung: Nur die Standard-PCM-Audiosignale des Abtasttakts (44.1/48/96KHz) sind im optischen Modus anpassbar. Deutsch...
- Page 32 Betrieb EDIFIER R2000DB ① Suchen und wählen Sie an Ihrem Gerät (Handy, Tablet, MP3/MP4-Player, usw.) „EDIFIER R2000DB“. ② Koppeln Sie Ihr externes Gerät mit „EDIFIER R2000DB“. ③ Starten Sie an Ihrem Gerät die Wiedergabe und stellen Sie die Lautstärke entsprechend ein.
-
Page 33: Technische Daten
Technische daten Ausgangsleistung: ： RMS 24W × 2 (Höhen) + 36W × 2(bass) (DRC Ein) Signal-Rausch-Verhältnis: ≥ 85 dBA Frequenzbereich: 50Hz ~ 20KHz (+/-3db) Eingangsempfindlichkeit: Line in1: 800 mV ± 50 mV Line in2: 600 mV ± 50 mV OPT: 500 mFFs ± 50 mFFs Eingänge: RCA/Bluetooth/OPT Tieftöner:... - Page 34 Bitte besuchen Sie unsere Webseite auf , oder senden Sie eine E-Mail an den EDIFIER Support unter: → Wir belückwünschen Sie zu dem Kauf dieses EDIFIER-Produktes. Wenn Sie Fragen zu der Garantie für dieses Produkt haben, besuchen Sie bitte unsere Webseite auf...
-
Page 35: Importanti Istruzioni Di Sicurezza
ATTENZIONE: per ridurre il rischio di incendio o di folgorazione, non esporre l’apparecchio a pioggia o umidità. Grazie per aver acquistato questo prodotto Edifier. Da generazioni Edifier cerca di offrire prodotti con altoparlanti alimentati per soddisfare le esigenze del cliente finale anche i clienti più esigenti. Questo prodotto può essere un'aggiunta alla prestazione audio del vostro intrattenimento domestico, computer personale e mini home theater. -
Page 36: Apertura Della Scatola
Apertura della scatola Box Contents: Altoparlante passivo Ricevitore a infrarossi Telecomando Altoparlante attivo Cavo di connessione audio RCA doppio da 3.5 mm Cavo di coll. Alt. 2RCA~2RCA Cavo audio in fibra ottica Manuale dell’utente Cavo altoparlanti Italiano... - Page 37 Illustrazioni Line In 1 Line In 2 R2000DB Multimedia Speaker Input Indicator(LED) GREEN Line In 1/Line In 2 BLUE L Speaker Out Power Speaker In ① Manopola volume principale Line in1/Line in2/OPT/Bluetooth: Premere una sola volta ② Porta connettore ingresso audio ③...
-
Page 38: Caricamento Batteria
Illustrazioni Telecomando ① Tasto Muto ② Standby/on ③ Abbassare volume ④ Aumentare volume ⑤ OPT ⑥ Bluetooth LINE1 LINE2 ⑦ Line in1 Classic Dynamic ⑧ Line in2 ⑨ Modo Classic ⑩ Modo Dynamic Caricamento batteria: Fare riferimento alla figura per aprire il vano batteria, inserire la batteria CR 2025 e chiudere il vano batteria. - Page 39 Connettività Line In 1 Line In 2 R2000DB Multimedia Speaker Input Indicator(LED) GREEN Line In 1/Line In 2 BLUE L Speaker Out Power Speaker In Nota: soltanto i segnali audio standard PCM dell’orologio campione (44.1/48/96KHz) sono adattabili nel modo ottico.
- Page 40 ① Impostare il dispositivo (telefono cellulare, tablet, lettore MP3/MP4 ecc.) in ricerca e selezionare “EDIFIER R2000DB”. ② Associare il dispositivo “EDIFIER R2000DB”. ③ Riprodurre l’audio sul dispositivo e regolare il volume al livello desiderato. ④ Per scollegare il Bluetooth: Premere & tenere premuto Nota: 1.
- Page 41 Potenza di uscita: RMS 24W × 2 (treble) + 36W × 2(bass) (DRC On) Rapporto segnale-rumore: ≥ 85 dBA Risposta in frequenza: 50Hz ~ 20KHz (+/-3db) Sensibilità ingresso: Line in1: 800 mV ± 50 mV Line in2: 600 mV ± 50 mV OPT: 500 mFFs ±...
-
Page 42: Risoluzione Dei Problemi
Se hai ulteriori domande o preoccupazioni riguardanti i prodotti EDIFIER Products… Asia, Europa, Oceania: Visita il nostro sito web: → Gentile cliente, grazie per aver acquistato questo prodotto EDIFIER. Per la garanzia EDIFIER applicabile su questo prodotto ti rimandiamo al sito web EDIFIER Canada/USA/Messico:... -
Page 43: Instruções Importantes De Segurança
AVISO: Para reduzir o risco de incêndio ou choque eléctrico, não exponha este aparelho a chuva ou humidade. Obrigado por adquirir um sistema de som multimídia Edifier. Com a atenção devida e cuidado, você terá um sistema de som multimídia para usar muitos anos, livre de problemas. -
Page 44: Desembalar O Aparelho
Desembalar o aparelho Conteúdo da caixa: Coluna Passiva Sensor de infravermelhos Controle Remoto Coluna Activa Cabo de ligação áudio de 3,5 mm para RCA duplo Cabo de áudio (RCA ~ RCA estéreo) Cabo de fibra óptica conector de áudio Manual do utilizador Cabo de ligação das colunas Português... - Page 45 Imagens Line In 1 Line In 2 R2000DB Multimedia Speaker Input Indicator(LED) GREEN Line In 1/Line In 2 BLUE L Speaker Out Power Speaker In ① Botão de volume principal Line in1/Line in2/OPT/Bluetooth: Pressione uma vez ② Porta de ligação de entrada áudio ③...
-
Page 46: Comando À Distância
Imagens Comando à distância ① Botão sem som ② Espera/ligado ③ Diminuir volume ④ Aumentar volume ⑤ OPT ⑥ Bluetooth LINE1 LINE2 ⑦ Line in1 Classic Dynamic ⑧ Line in2 ⑨ Modo Classic ⑩ Modo Dynamic Colocação da pilha: Abra o compartimento da pilha de acordo com a ilustração, introduza a pilha CR 2025 e feche o compartimento. - Page 47 Conectividade Line In 1 Line In 2 R2000DB Multimedia Speaker Input Indicator(LED) GREEN Line In 1/Line In 2 BLUE L Speaker Out Power Speaker In Nota: Apenas os sinais de áudio PCM padrão do relógio de amostragem (44,1/48/96KHz) são adaptáveis no modo óptico.
-
Page 48: Manual De Funcionamento
① Defina seu dispositivo (celular, tablet, MP3/MP4 player etc.,) para procurar e selecionar “EDIFIER R2000DB”. ② Emparelhe seu dispositivo com “EDIFIER R2000DB”. ③ Reproduza o áudio em seu dispositivo e ajuste o volume para o nível desejado. ④ Para desconetar o Bluetooth: Pressione e segure Nota: 1. - Page 49 Potência: RMS 24W × 2 (treble) + 36W × 2(bass) (DRC Ligado) Relação sinal/ruído: ≥ 85 dBA Resposta em frequência: 50Hz ~ 20KHz (+/-3db) Sensibilidade de entrada: Line in1: 800 mV ± 50 mV Line in2: 600 mV ± 50 mV OPT: 500 mFFs ±...
-
Page 50: Resolução De Problemas
Se hai ulteriori domande o preoccupazioni riguardanti i prodotti EDIFIER Products… Asia, Europa, Oceania: Visita il nostro sito web: → Gentile cliente, grazie per aver acquistato questo prodotto EDIFIER. Per la garanzia EDIFIER applicabile su questo prodotto ti rimandiamo al sito web EDIFIER Canada/USA/Messico:... - Page 51 For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice. Products of EDIFIER will be customized for different applications. Pictures and illustrations shown on this manual may be slightly different from actual product. If any difference is found, the actual product prevails.
