STEP 5
5
Note: There are 68 V-rings and 4 rec-
8
tangle-rings around the edge of the Bed
(Mat) (8) and 76 holes around the top of
the frame. In step 5
7 7
you will attach the Bed (Mat) (8 ) to the
frame, using 76 springs(7)
Caution: It is wise to wear leather
gloves while attaching the Springs.
2
Be careful where you place your
hands as the Springs and frame
joints can pinch.
7
8
(3x)
12Ft/366cm
7
Note:The spring has a large hook
(1x)
7Ft/
which attaches to the frame and a
214cm
small hook which attaches to the
mat ring.

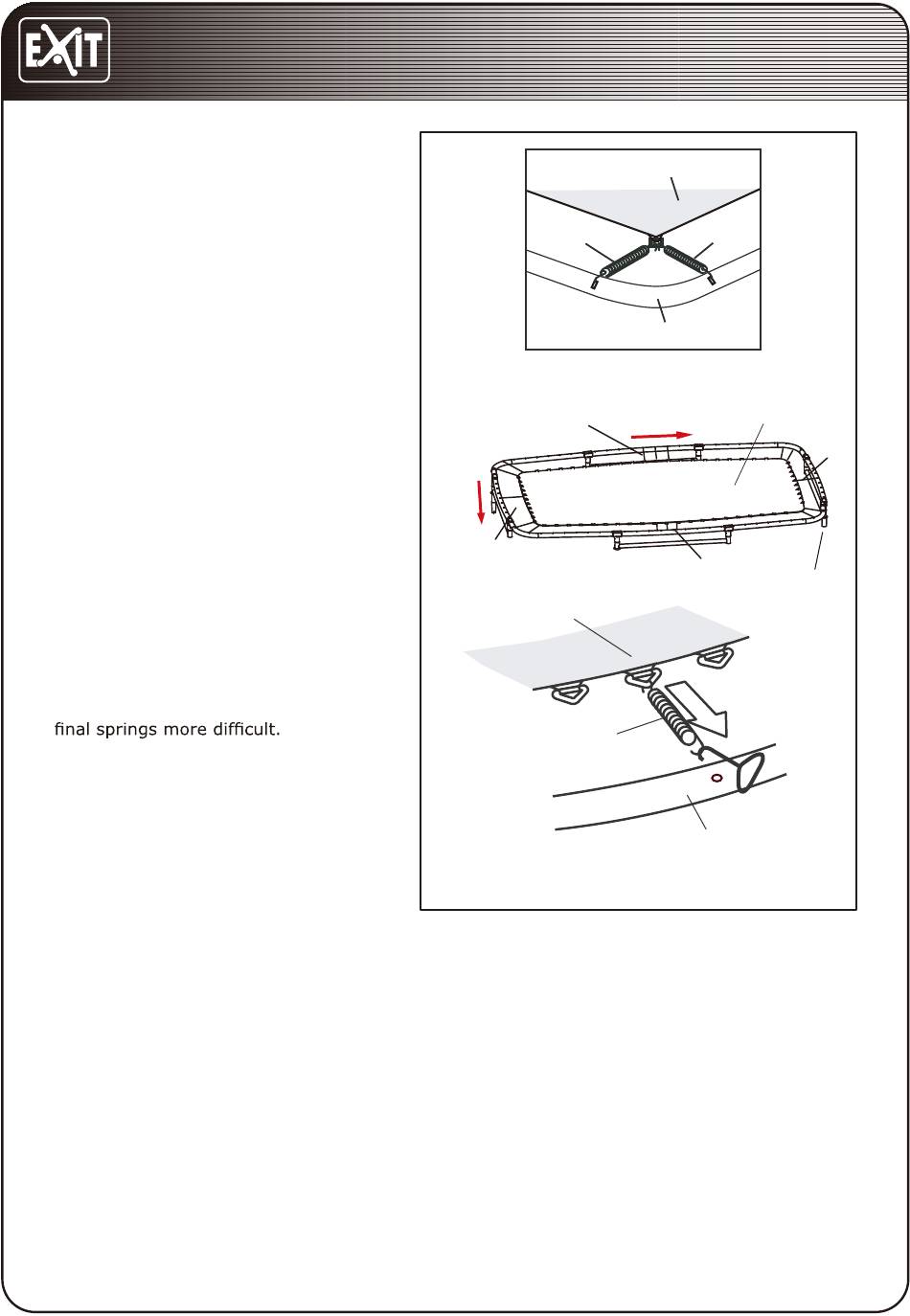

Attach the Spring(7) as follows: Hook
one end of a spring into a V-ring sewn on
7
7
the jump mat. hook a Spring tool shown
(1x)
(3x)
9
as the inset drawing into the free end
of the Spring. Pull it by the Spring tool
8
until it reach the frame. push the end
of the Spring into a hole in the frame.
Unhook the Spring tool. It is important to
follow the below instructions for attach-
ing springs to avoid making attaching the
7
Attach the D-ring sewn to the corner
of the mat to the corner tube by two
springs as shown, then there will be eight
springs attached Two spring to each cor-
1-A / 1-B / 2-A / 2-B
ner. Count exactly 10 frame holes and 10
V-rings in the 12ft direction. Attach three
springs. Repeat on the opposite 12ft long
side of the trampoline
Count exactly 5 frame holes and 5
V-rings in the 7ft direction. Attach one
springs. Repeat on the opposite 7ft long
side of the trampoline. You should now
have 16 springs attached. Continue to at-
tach the remaining long springs between
the previously attached springs, until all
springs are attached.
Safety Notice:
as you attach Springs, carefully
count the V-rings and frame holes. If
a V-ring or a hole is skipped, reat-
tach the spring in the proper posi-
tion.
