DISTRIBUTION BOX "DS450-CA"
DISTRIBUTION BOX "DS450-CA"

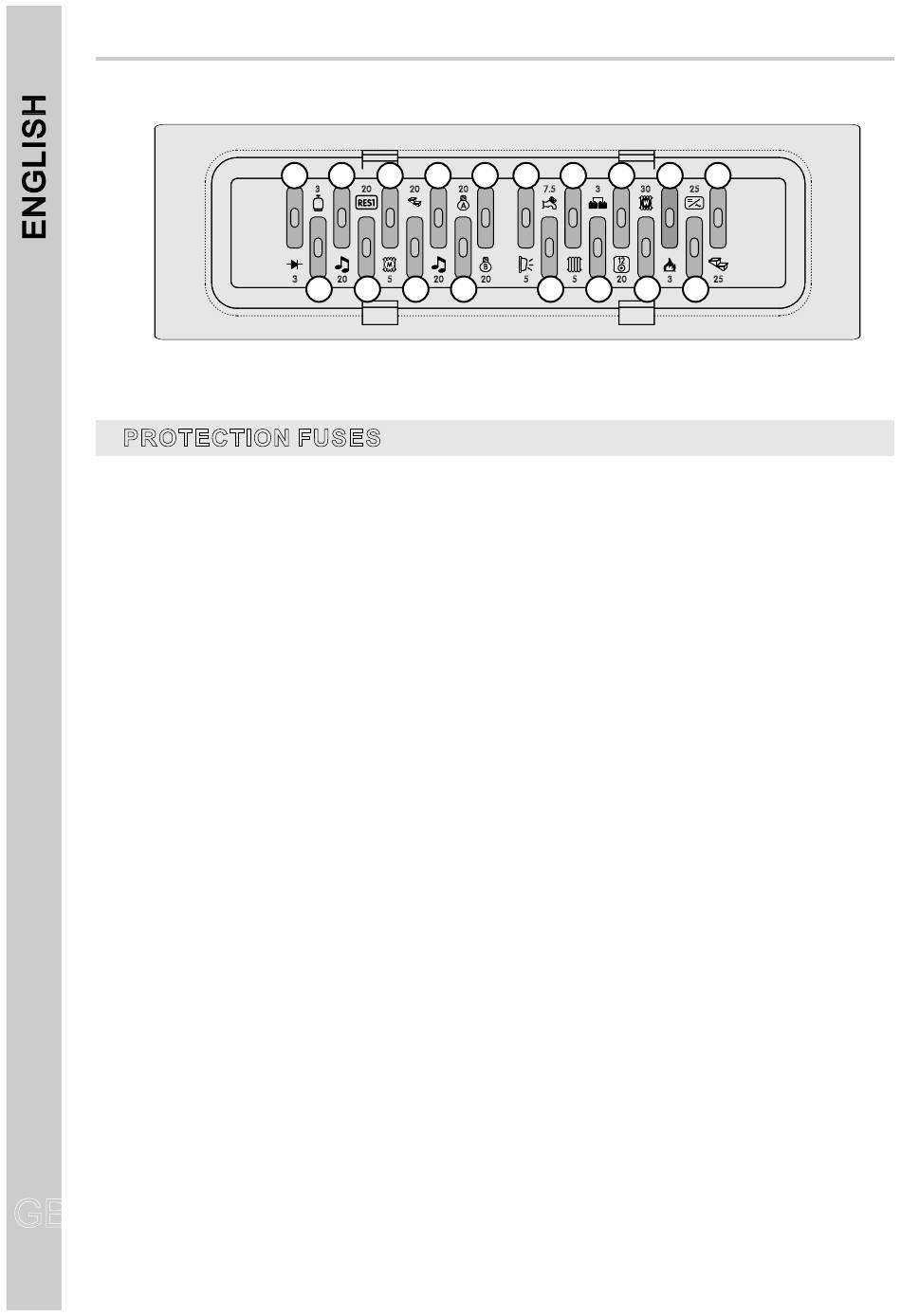

PROTECTION FUSES
PROTECTION FUSES
1)
3A fuse for control panel supply.
2)
3A fuse for
3)
20A fuse for "Multimedia 1" output power supply.
4)
20A fuse for "RES1" auxiliary output power supply, which is directly connected to leisure battery (B2).
5)
5A fuse for heating motor supply, which is directly connected to leisure battery (B2).
6)
20A fuse for electric cab step power supply, which is connected directly to leisure battery (B2).
7)
20A fuse for "Multimedia 2" output power supply.
8)
20A fuse to supply power to light group "A".
9)
20A fuse to supply power to light group "B".
10)
5A fuse for awning light power supply, which depends on the awning light
switches off when engine is on.
11)
7.5 A fuse for water pump power supply
12) 5A fuse to give power to heating.
13)
3A fuse forOUTD+ simulated output protection.
14) 20 A fuse to give power to the 12V sockets.
15)
30A fuse for Webasto supply, which is directly connected to leisure battery (B2).
16)
3Afuse to supply power to gas piezoelectric firing device (fridge, kitchen, etc.) and boiler's anti-ice gas
valve, which is directly connected to the leisure battery (B2).
17) 25 A fuse for to give power to the rolling shutter's inverter, which is connected directly to leisure battery
(B2).
18) 25A fuse for electric step power supply, which is connected directly to leisure battery (B2).
GB
GB
GB
GB
32
30
1
3
5
3
20
RES1
M
3
20
5
2
4
"EIS-EX" anti-ice resistor
7
9
10
12
20
20
7.5
A
B
20
20
5
5
6
8
11
output power supply.
14
16
18
3
30
25
W
20
3
25
13
15
17
button
and automatically
