IMPORTANT:
fix the deflector/electrodes set on the
nozzle holder tube in position as per
fig. D.

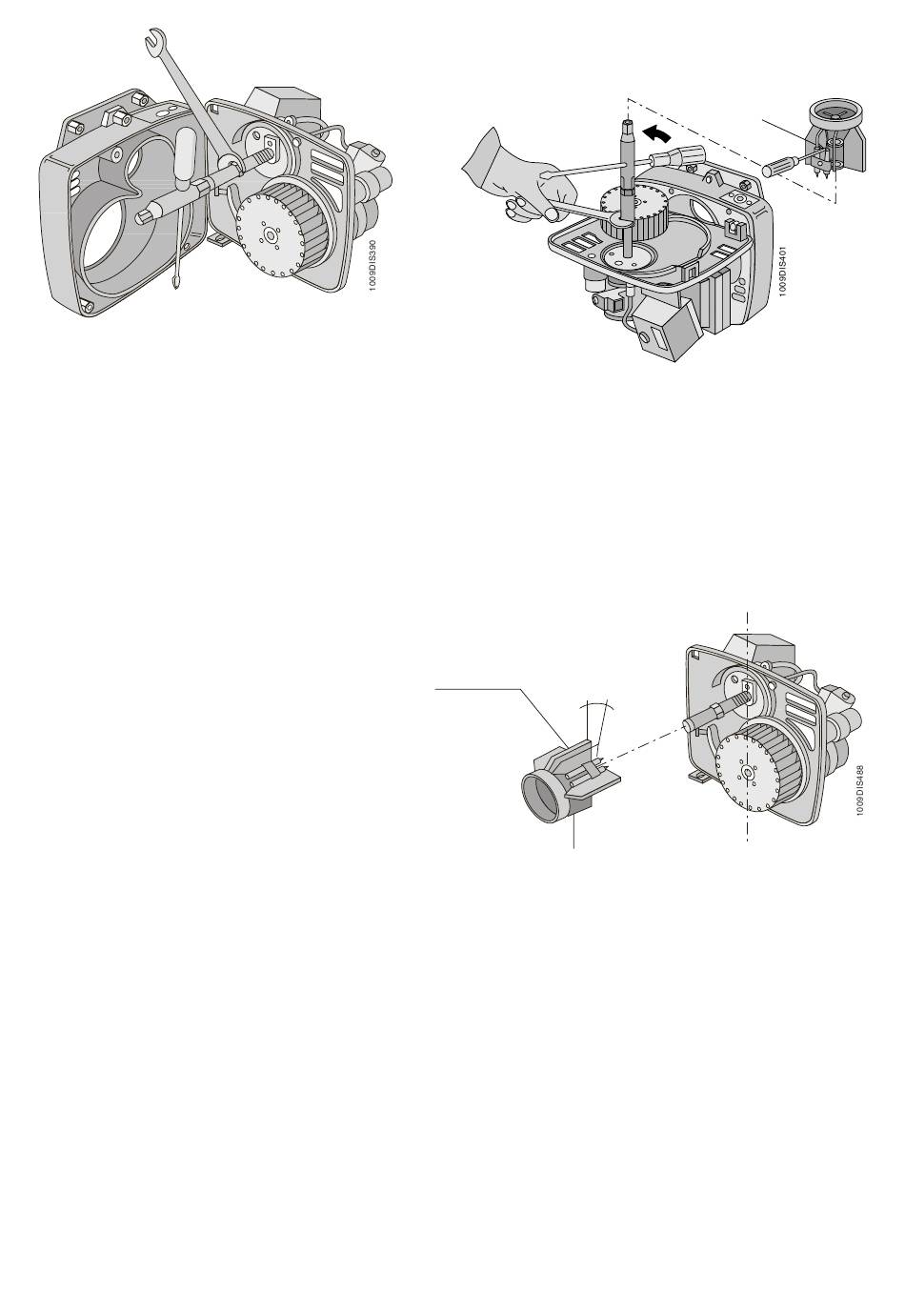

Fig. C - C1
To dismount the nozzle:
a) Loosen screw 1 and extract deflector/electrode set.
b) Unscrew the nozzle with spanner/counter-spanner.
Centering tongue for vertical
position or lightly to the right
position (max 10°)
Fig. D
1
max 10°
