4. Slide the two ends of the media hose (#21) onto
the abrasive gun (#24) respectively. Tighten the hose
clamps (#22) very securely.

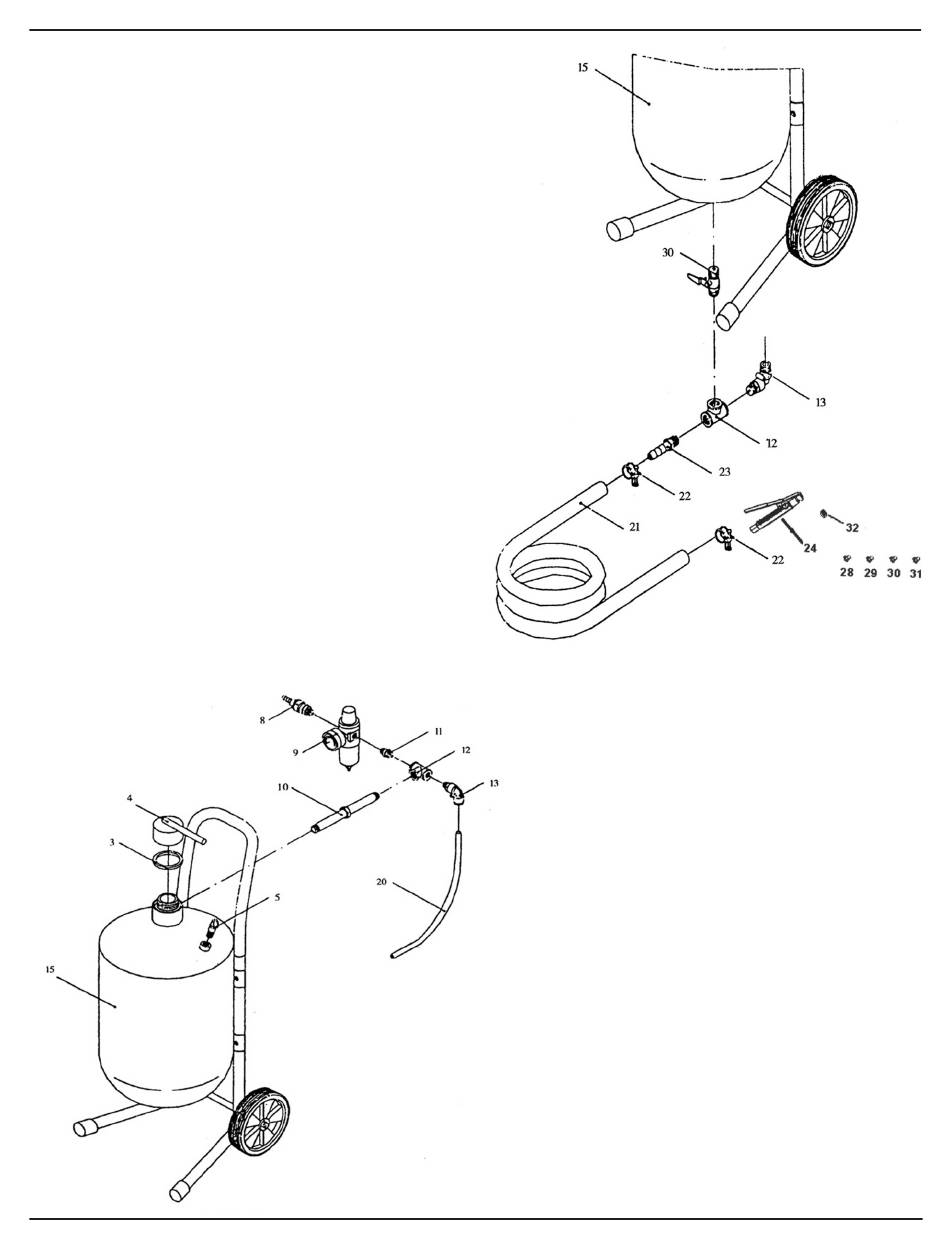

Air pressure adjuster and Safety Valve Assembly
(Refer to Fig. 3)
** Use PTFE tape on all air fitting threads.
1. Attach the connector (#8) to one of the side inlets of
the air pressure adjuster (#9). Attach the intake manifold
(#12) to the other side of the nipple connector (#11).
Make sure the pressure gauge on the air pressure ad-
juster and the front inlet of the intake manifold face the
same direction, as in figure 3.
2. Attach the joint pipe (#10) to the front of the intake
manifold (#12). Attach the other side of the joint pipe to
the threaded port on the top of the tank (#15).
3. Attach the safety valve (#5) onto the threaded
port on the top of the tank (#15).
4. Screw the tank filler cap (#4) onto the filler
opening with o-ring (#3) in between to ensure
an airtight seal.
5. Attach the elbow connector (#13) to the re-
maining side port of the intake manifold (#12).
Make sure the other end of the elbow connec-
tor points to the other elbow connector in the
bottom assembly (#13 from figure 2).
6. Attach the two ends of the air hose (#20)
to the the two elbow connectors (#13) in
the top assembly and the bottom assembly
respectively.
FIGURE 3
- 5 -
FIGURE 2
