ASSEMBLY
Note: Use Teflon pipe tape on all threaded joints. Make sure all joints are securely tightened.

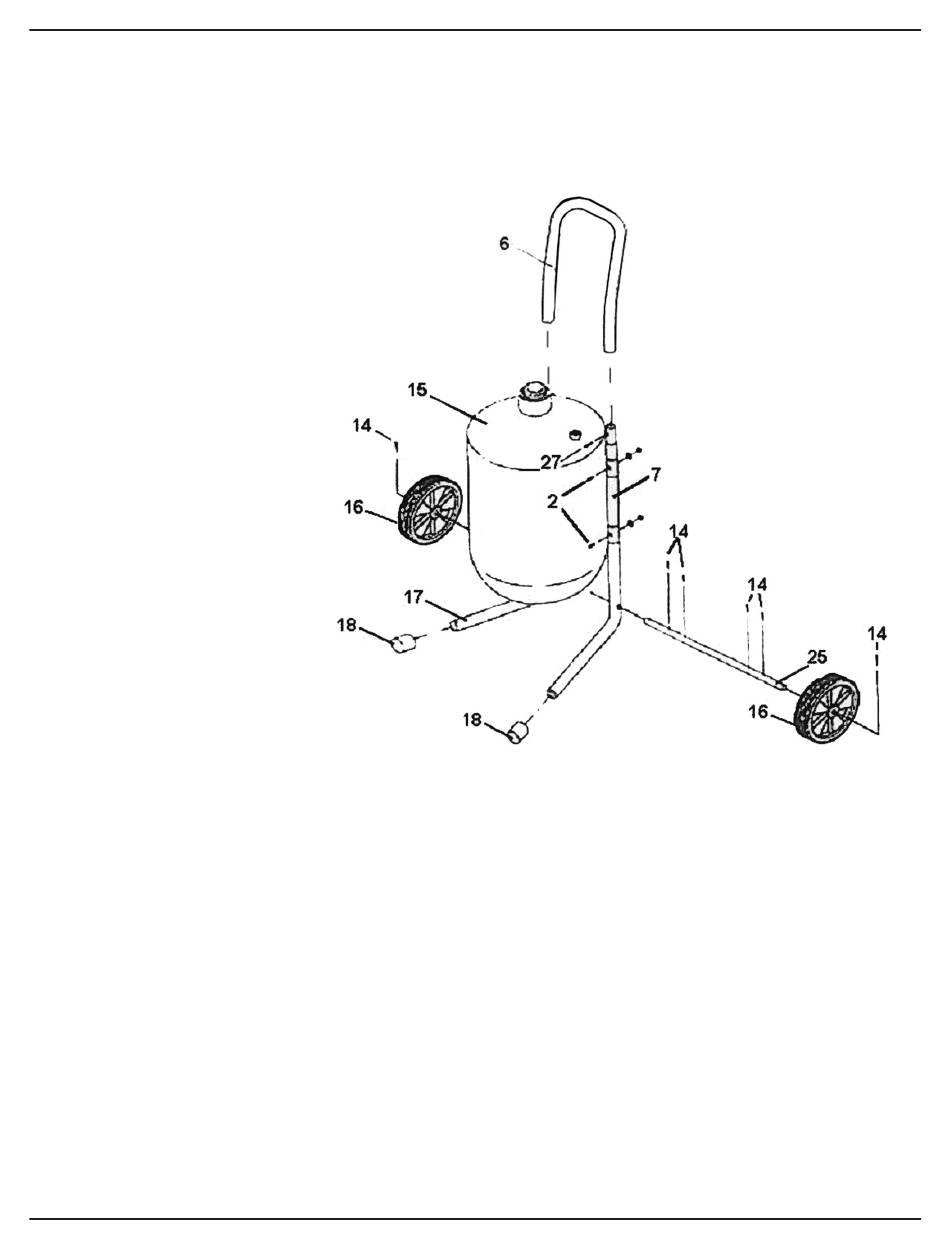

Legs, Wheels and Handle Bar Assembly (Refer to Fig. 1)
1. Attach both the left leg
(#7) and the right leg (#17) to
the tank (#15) using the four
screws & nuts. The bottom
section of the two legs must
point outward respectively
and the holes in the bottom of
the legs must point outward
respectively and the holes in
the bottom of the legs must
be parallel to each other to
accommodate the axle (#25).
2. Attach one of the wheels
(#16) to the axle (#25) using
one of the cotter pins (#14).
3. Slide the axle through he
holes in the bottom of the two
legs, using four cotter pins
(#14) to fix the position of the
axle.
4. Attach the other wheel
(#16) to the axle (#25)
FIGURE 1
using the remaining cotter pin (#14).
5. Slide the handle bar (#6) onto the left leg (#7) and the right leg (#17)
and secure it with two self-tapping screws.
6. Slide the two end caps (#18) over the ends of the legs (#7 & #17).
Media Metering Valve and Abrasive Gun Assembly (Refer to Fig. 2)
1. Attach the media metering valve (#26) to the side hole of the intake manifold (#12). Attach one of
the elbow connectors (#13) and one of the hose adapter (#23) to either remaining hole of the intake
manifold (#12).
2. Attach the other side of the media metering valve (#26) to the bottom of the tank.
3. Slide the hose clamp (#22) over either side of the media hose (#21) do not tighten yet.
- 4 -
