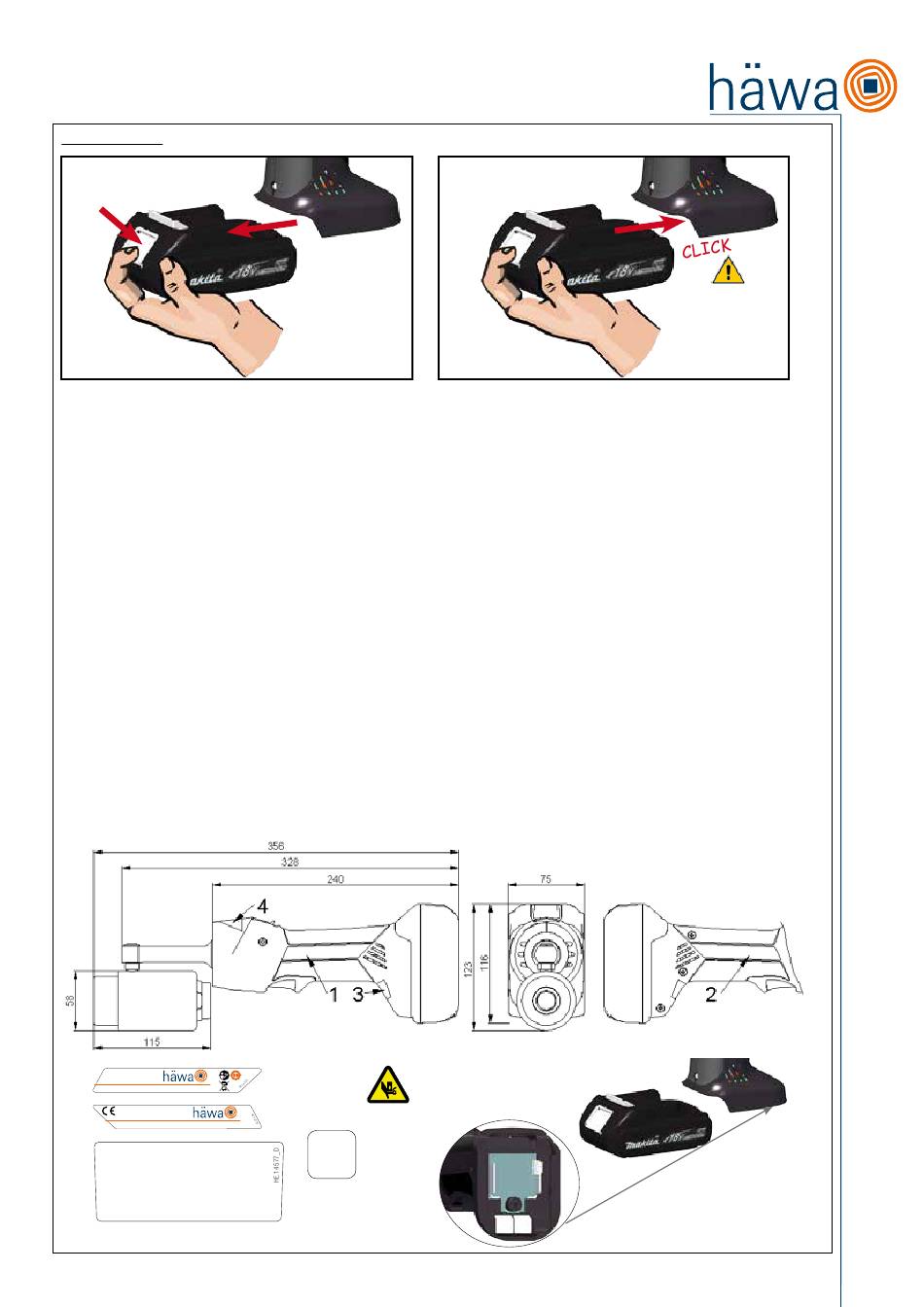

Inserting the battery:
1.
Ill. 4

6.6 Malfunction of the punching device

a) Red LED (item 3) flashing; see explanation in the table under heading 5.5 „Description of the LED display".
Should the error indication not turn off, the device must be send to the next service center for service.
(b) The punching device loses oil.
The device must be send for repair. Do not open and do not remove the seal of the device.
c) For all other questions, please contact the häwa service number: Tel: +49 7353 9846 0

7. Technical data

Weight of the device with battery:
Punching force:
Driving motor:
Motor voltage:
Battery capacity:
Battery charging time:
Punching time:
Capacity:
Hydraulic oil:
Ambient temperature:
Noise level:
Vibrations:
1
häwa GmbH & Co. KG • Industriestraße 12 • D-88489 Wain
NOCH NICHT FREIGEGEBEN
2
häwa GmbH & Co. KG • Industriestraße 12 • D-88489 Wain
3
Powerlec Vario
Punch driver
Stanzkraft (Force): 60 kN
Max. Lochergröße: Ø 80mm, 2,5mm ST37/2mm VA
(Max. Punch Size): 68 x 68mm, 2,5mm ST37/2mm VA
18
HE.14577 Rev. D
Größe: 43 x 18 mm
2.
2.2 kg
about 60 kN
Continuous direct current field motor
18 V DC
3 Ah (BL1830) or 1,3 AH (BL1815)
22 min BL1830 / BL1815 15 min
5 seconds at ø 22.5 mm, 3 mm St37
6 seconds with ø 61.5 mm, 3 mm St37
120 Punches/battery at Ø 22.5 mm and 3.4 mm sheets St 37 or
190 Punches/battery at Ø 22.5 mm and 3 mm sheets St 37 or
280 Punches/battery at Ø 22.5 mm and 2.5 mm metal St 37
Rivolta S.B.H. 11
-20 ° C to + 40 ° C
70.6 DB(a) at 1 m distance
<2.5 m/s ² (weight rms acceleration)
4
HE.9625
5
304711 ð serial number
CV ð datecode
142 ð consecutive
number
Ill. 5
