CURRENT KEY
Press the CURRENT key to select the desired charge or discharge
current in the modes charge, discharge, refresh and test.
The standard charging current is 200mA. It can be increased to 500,
700 and 1000mA.
The standard discharging current is 100mA and can be increased to
250, 350 and 500mA. The discharge current is set at 50% of the
charging current.
FUNCTIONS (MODES) of the charger
1. CHARGE mode : RECHARGES the battery. Slow trickle charging will start
automatically once the battery has reached its optimum charge level.
2. DISCHARGE mode : will first DISCHARGE and then RECHARGE the battery
to remove memory effect on a battery that have been repeatedly partially
discharged before recharge. The unused substances in the battery will ab-
sorb and deliver few energy. This mode will try to restore the lost capacity
of the cell.
3. REFRESH mode : REGENERATES or reactivates old batteries, batter-
ies left unused for a long period of time and also newly purchased bat-
teries (often stored for a long time after production). The charging unit
will recover battery's optimum capacity by applying a number of DIS-
CHARGE-CHARGE-DISCHARGE cycles until no further increase in capacity
is monitored.
4. TEST mode : one cycle of CHARGE, DISCHARGE, CHARGE to measure
the available capacity (in mAh or Ah) of a battery. Cell age and condition
influences the available capacity significantly.
USAGE INSTRUCTIONS

1. Connection to the mains

Insert the small plug of the AC cable into the jack on the
•
backside of the charger and connect the AC input plug of
the adapter to the mains (100V-240V).

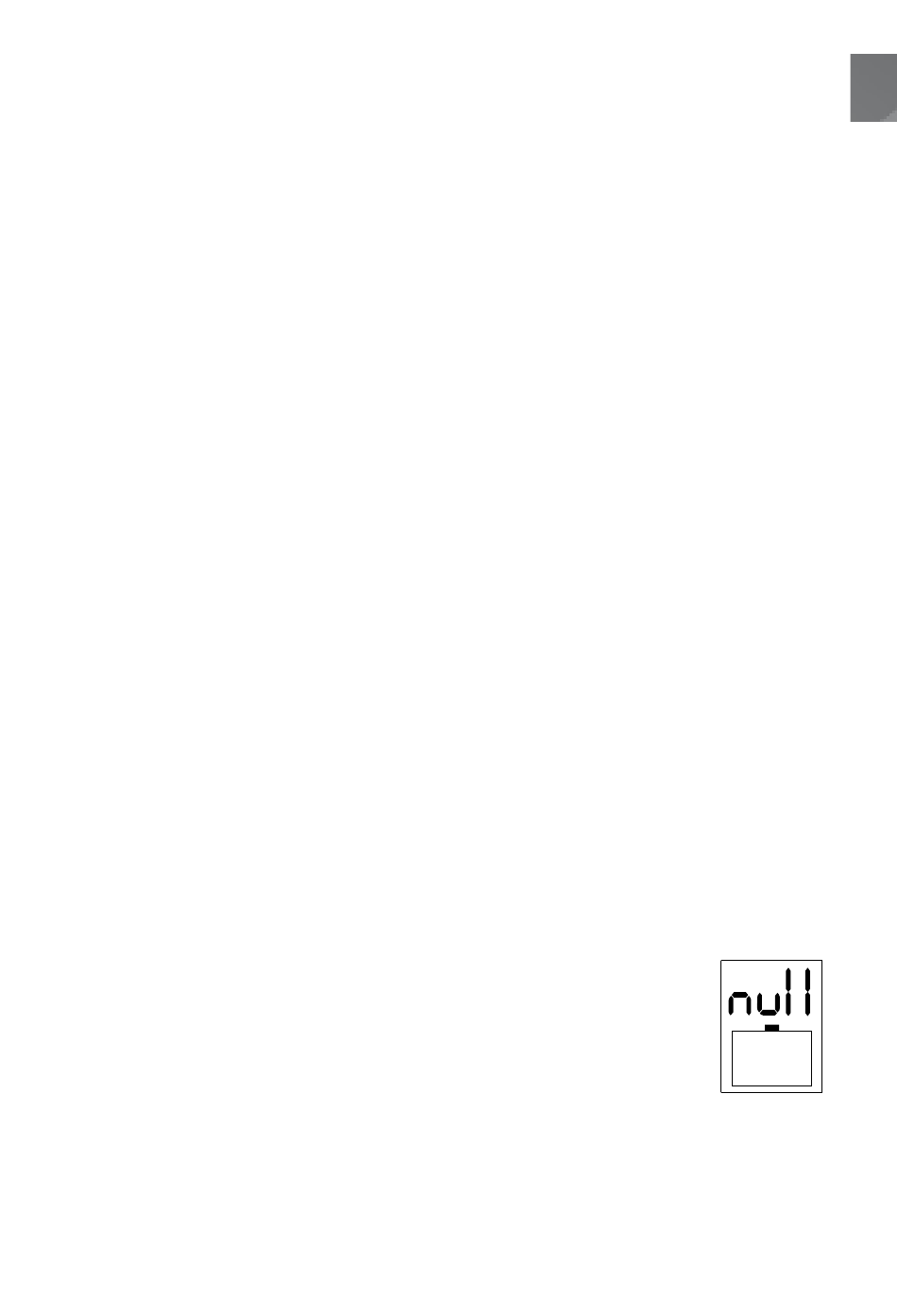

The "NULL" sign will be shown as long as no battery is
•
inserted in the compartment.
