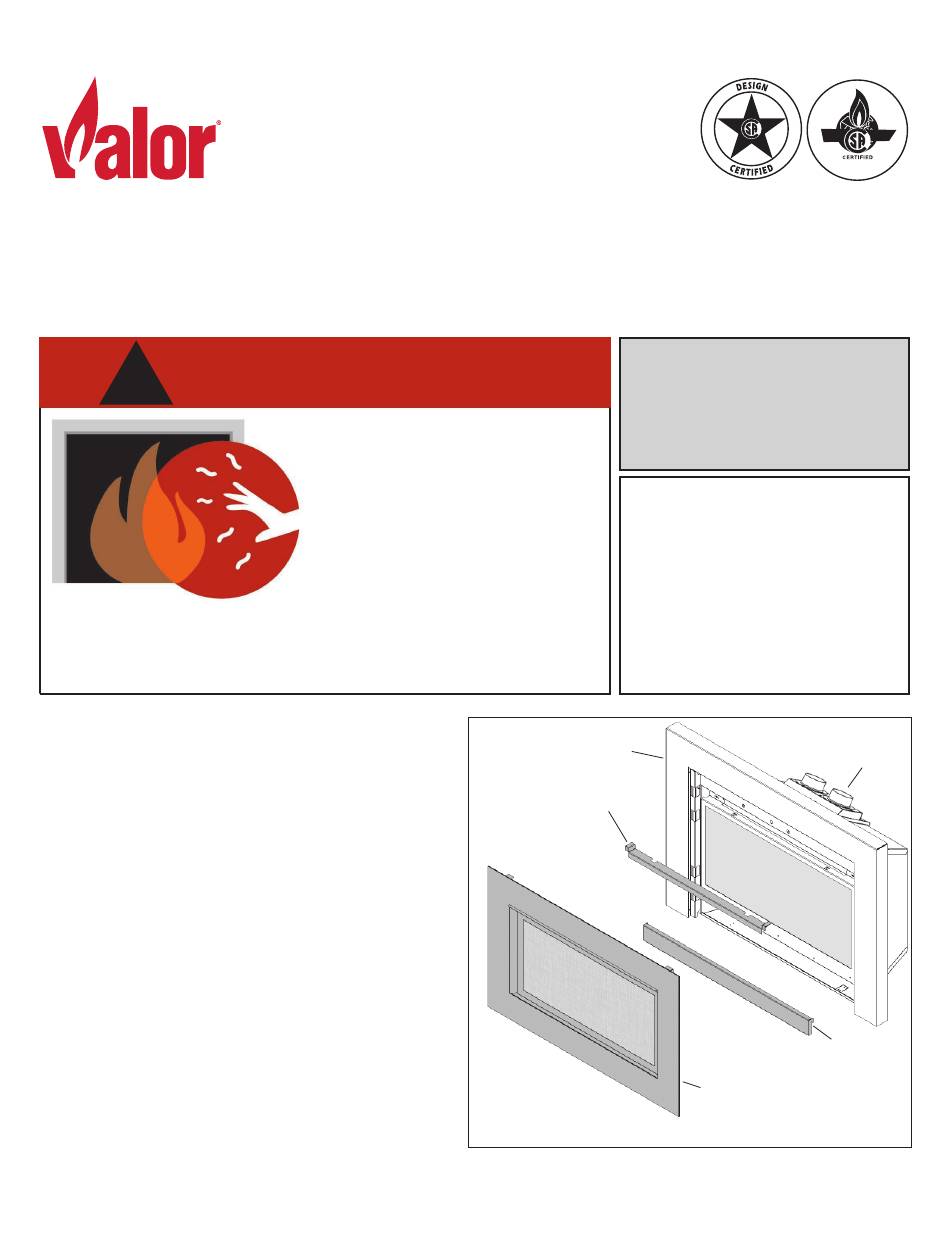

INSTALLATION MANUAL
Contemporary Fronts—765
Approved for use with Valor G3 heater models 739 ONLY
Not compatible with models 738 heaters
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and must be
installed for the protection of children and other at-risk
individuals.
The 765 Contemporary Front is available in black
(765CSB), copper (765CSC) and nickel (765CSN).
It is intended to be used with the 3-sided 756 Square
Trim and 764 Picture Frame Trim (supplied separately).
However, it is also compatible with other 3-sided
surround trims (excluding cast surrounds) installed on
the G3 739 heaters.
The Contemporary Front fits within the outer surround
trim and clips onto the standard mounting brackets
supplied with the 739 heaters.
4002399-10
© Copyright Miles Industries Ltd., 2022
G3 Series
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain this
manual for future reference.
Note: This kit must be
installed or serviced by a
qualified installer, service
agency or gas supplier.
These instructions are to be
used in conjunction with the
fireplace main installation
instructions.
3-Sided Outer
Surround
Window trim
Overview (Heater, 3-sided outer surround sold separately)
739
Bottom
cover
Trim assembly with
barrier screen
