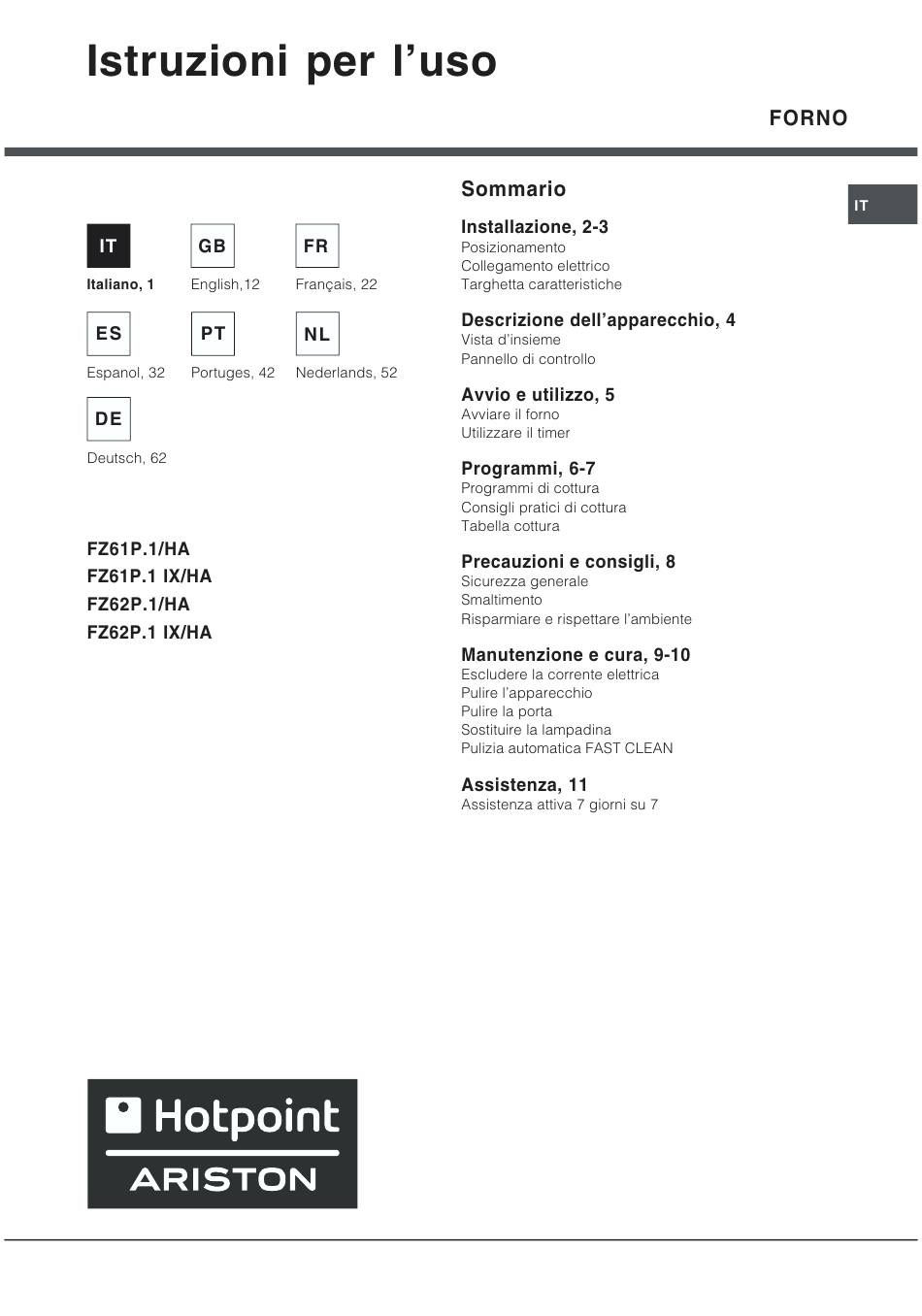

- Page 1 All manuals and user guides at all-guides.com...
- Page 2 All manuals and user guides at all-guides.com vedi figure vedi Precauzioni e consigli vedi figura vedi figura vedi figura vedi figura...
- Page 3 All manuals and user guides at all-guides.com vedi sotto vedi sotto vedi vedi Assistenza figura vedi figura vedi a fianco vedi sotto...
- Page 4 All manuals and user guides at all-guides.com GUIDE di Pannello di controllo scorrimento dei ripiani posizione 5 Ripiano GRIGLIA posizione 4 posizione 3 Ripiano LECCARDA posizione 2 posizione 1 Manopola Manopola Manopola PROGRAMMI TIMER * TERMOSTATO Spia - PRERISCALDAMENTO (lampeggia) - PROGRAMMA IN CORSO (fissa) Spia - SEGNALAZIONE ERRORE (lampeggia rapidamente)
- Page 5 All manuals and user guides at all-guides.com vedi Programmi...
- Page 6 All manuals and user guides at all-guides.com vedi Manutenzione e cura vedi Manutenzione e cura...
- Page 7 All manuals and user guides at all-guides.com...
- Page 8 All manuals and user guides at all-guides.com vedi Assistenza ¡...
- Page 9 All manuals and user guides at all-guides.com vedi figura vedi Assistenza cavità lampadina guarnizione coperchio vedi figura vedi figura vedi figura...
- Page 10 All manuals and user guides at all-guides.com...
- Page 11 All manuals and user guides at all-guides.com...
- Page 12 All manuals and user guides at all-guides.com...
- Page 13 All manuals and user guides at all-guides.com see diagrams see Precautions and tips see diagram see diagram diagram see diagram...
- Page 14 All manuals and user guides at all-guides.com see below see below see below see diagram see Assistance DATA PLATE width 43.5 cm Dimensions height 32 cm depth 41,5 cm Volume lt. 58 voltage: 220-240V ~ 50/60Hz Electrical maximum power absorbed connections 2560-3050W see side...
- Page 15 All manuals and user guides at all-guides.com Control panel GUIDES for the sliding racks position 5 GRILL position 4 position 3 DRIPPING PAN position 2 position 1 SELECTOR TIMER THERMOSTAT knob knob * knob Indicator light - PREHEATING (blinks) - COOKING UNDER WAY (constant) DOOR LOCK - ERROR (blinks rapidly) indicator light *...
- Page 16 All manuals and user guides at all-guides.com see Cooking Modes To set the buzzer, turn the COOKING TIMER knob clockwise almost one complete revolution. 2. Turn the knob anticlockwise to set the desired time: align the minutes shown on the COOKING TIMER knob with the indicator on the control panel.
- Page 17 All manuals and user guides at all-guides.com see Maintenance and care see Maintenance and care...
- Page 18 All manuals and user guides at all-guides.com Cooking Foods Weight Rack position Pre-heating Recommended Cooking modes (in kg) time (min) temperature time (minutes) Convection Duck 65-75 Roast veal or beef 70-75 Oven Pork roast 70-80 Biscuits (short pastry) 15-20 Tarts 30-35 Multi-cooking Pizza (on 2 racks)
- Page 19 All manuals and user guides at all-guides.com see Assistance ¡...
- Page 20 All manuals and user guides at all-guides.com diagram see Assistance Oven compartment Lamp Seal Glass door see diagram see diagram see diagram...
- Page 21 All manuals and user guides at all-guides.com...
- Page 22 All manuals and user guides at all-guides.com...
- Page 23 All manuals and user guides at all-guides.com voir figures voir Précautions et conseils voir figure voir voir figure figure voir figure...
- Page 24 All manuals and user guides at all-guides.com voir ci-dessous voir ci-dessous voir ci-dessous voir figure voir Assistance (VOIR .IGURE) PLAQUETTE SIGNALETIQUE largeur cm 43,5 Dimensions hauteur cm 32 profondeur cm 41,5 Volume l 58 tension 220-240V ~ 50/60Hz Raccordements puissance maxi. Absorbée électriques 2560-3050W Directive 2002/40/CE sur l'étiquette...
- Page 25 All manuals and user guides at all-guides.com GLISSIERES de Tableau de bord coulissement niveau 5 Support GRILLE niveau 4 niveau 3 Support LECHEFRITE niveau 2 niveau 1 Bouton Bouton Bouton PROGRAMMES MINUTEUR * THERMOSTAT Voyant - PRECHAUFFAGE (clignotant) - PROGRAMME EN COURS (fixe) Voyant - SIGNAL D’ERREUR (clignotement rapide) PORTE VERROUILLEE *...
- Page 26 All manuals and user guides at all-guides.com voir Programmes...
- Page 27 All manuals and user guides at all-guides.com voir Nettoyage et entretien voir Nettoyage et entretien...
- Page 28 All manuals and user guides at all-guides.com Programmes Aliments Poids Niveau Préchauffage Température Durée (Kg) enfournement (minutes) préconisée cuisson (minutes) Canard 65-75 Four Tradition Rôti de veau ou de bœuf 70-75 Rôti de porc 70-80 Biscuits (pâte brisée) 15-20 Tartes 30-35 Multicuisson Pizza (sur 2 niveaux)
- Page 29 All manuals and user guides at all-guides.com voir Assistance ¡...
- Page 30 All manuals and user guides at all-guides.com voir figure voir Assistance cavité lampe joint hublot voir figure voir figure voir figure...
- Page 31 All manuals and user guides at all-guides.com...
- Page 32 All manuals and user guides at all-guides.com...
- Page 33 All manuals and user guides at all-guides.com ver las figuras ver Precauciones y consejos ver la figura ver la figura ver la figura ver la figura...
- Page 34 All manuals and user guides at all-guides.com ver más abajo ver a continuación ver más abajo ver la figura ver Asistencia (ver la figura) PLACA DE CARACTERÍSTICAS longitud 43,5 cm. Dimensiones altura 32 cm. profundidad 41,5 cm. Volumen Litros 58 tensión 220-240V ~ 50/60Hz Collegamenti potencia máxima absorbida...
- Page 35 All manuals and user guides at all-guides.com Panel de control GUÍAS de desliyamiento de las bandejas posición 5 Bandeja PARRILLA posición 4 posición 3 Bandeja GRASERA posición 2 posición 1 Mando Mando Mando PROGRAMAS TEMPORIZADOR* TERMOSTATO Piloto - PRECALENTAMIENTO (centellea) - PROGRAMA EN CURSO (fijo) Piloto PUERTA - INDICACIÓN DE ERROR (centellea rápidamente)
- Page 36 All manuals and user guides at all-guides.com ver Programas...
- Page 37 All manuals and user guides at all-guides.com ver Mantenimiento y cuidados ver Mantenimiento y cuidados...
- Page 38 All manuals and user guides at all-guides.com Duración Peso Posición de Precalentamiento Temperatura de la Programas Alimentos (Kg) los estantes (minutos) aconsejada cocción (minutos) Pato 65-75 Asado de ternera o de vaca 70-75 Horno Asado de cerdo 70-80 Tradiciónal Bizcochos (de pastaflora) 15-20 Tortas glaseadas 30-35...
- Page 39 All manuals and user guides at all-guides.com Asistencia ¡...
- Page 40 All manuals and user guides at all-guides.com ver la figura ver Asistencia Horno Lampara Junta Vidrio ver la figura la figura ver la figura...
- Page 41 All manuals and user guides at all-guides.com...
- Page 42 All manuals and user guides at all-guides.com...
- Page 43 All manuals and user guides at all-guides.com veja as figuras veja em Precauções e Conselhos veja a figura veja a figura veja a figura...
- Page 44 All manuals and user guides at all-guides.com veja a seguir veja a seguir veja a Assistência Técnica PLACA DAS CARACTERÍSTICA largura cm. 43,5 Dimensóes altura cm. 32 profundidade cm. 41,5 Volume Litros 58 tensão de 220-240V ~ 50/60Hz Ligações eléctricas potência máxima absorvida 2560-3050W Directiva 2002/40/CE acerca dos...
- Page 45 All manuals and user guides at all-guides.com GUIAS de Painel de comandos escorrimento das prateleiras posição 5 Prateleira GRADE posição 4 posição 3 Prateleira BANDEJA posição 2 PINGADEIRA posição 1 Selector dos Selector do Selector do PROGRAMAS TIMER * TERMOSTATO Indicador luminoso - PRÉ...
- Page 46 All manuals and user guides at all-guides.com veja os Programas...
- Page 47 All manuals and user guides at all-guides.com veja a Manutenção e cuidados veja a Manutenção e cuidados...
- Page 48 All manuals and user guides at all-guides.com Alimentos Peso Posição das Pré Temperatura Duração da Programas (Kg.) prateleiras aquecimento aconselhada cozedura (minutos) (minutos) Pato 65-75 Carne de vitela ou vaca assada 70-75 Forno Carne de porco assada 70-80 Tradicional Biscoitos (de massa tenra) 15-20 Tortas doces 30-35...
- Page 49 All manuals and user guides at all-guides.com veja a Assistência técnica ¡ ¡ ¡ ¡ ¡ ”...
- Page 50 All manuals and user guides at all-guides.com veja a figura Compartimento do forno Lãmpada Juntado Vidro veja a figura...
- Page 51 All manuals and user guides at all-guides.com...
- Page 52 All manuals and user guides at all-guides.com...
- Page 53 All manuals and user guides at all-guides.com zie afbeeldingen Voorzorgsmaatregelen en advies zie afb. zie figuur afb. zie afb.
- Page 54 All manuals and user guides at all-guides.com zie onder zie onder zie onder afb. (zie zie Service afbeelding) TYPEPLAATJE breedte 43,5 cm. Afmetingen hoogte 32 cm. diepte 41,5 cm. Inhoud liter 58 Elektrische spanning 220-240V ~ 50/60Hz aansluitingen maximum vermogen 2560-3050W zie hiernaast Richtlijn 2002/40/CE op etiket van elektrische ovens.
- Page 55 All manuals and user guides at all-guides.com Bedieningspaneel GLEUVEN om roosters in te schuiven positie 5 Rooster GRILL positie 4 positie 3 Rooster LEKPLAAT positie 2 positie 1 Knop Knop THERMOSTAATKNOP PROGRAMMA’S TIMER* Controlelampje - VOORVERWARMING (knippert) - VOORTGANG PROGRAMMA (aan, knippert niet) Controlelampje - FOUTMELDING (knippert snel) DEURBLOKKERING*...
- Page 56 All manuals and user guides at all-guides.com zie Programma’s...
- Page 57 All manuals and user guides at all-guides.com zie Onderhoud en verzorging zie Onderhoud en verzorging...
- Page 58 All manuals and user guides at all-guides.com Gewicht Voorverwarmin Aangeraden Kooktijd Programma's Gerechten Roosterstanden (kg) g (minuten) temperatuur (minuten) Eend 65-75 Braadstuk 70-75 Traditionele Varkensrollade 70-80 oven Koekjes (kruimeldeeg) 15-20 Taarten 30-35 Pizza (op 2 roosters) 2 en 4 15-20 Lasagne 30-35 Lamsvlees...
- Page 59 All manuals and user guides at all-guides.com zie Service zie Programma’s...
- Page 60 All manuals and user guides at all-guides.com afbeelding zie Service Ovenruimte Lamp Afdichting Glasplaat zie afb. afbeelding afb.
- Page 61 All manuals and user guides at all-guides.com...
- Page 62 All manuals and user guides at all-guides.com...
- Page 63 All manuals and user guides at all-guides.com siehe Abbildungen siehe Vorsichtsmaßregeln und Hinweise siehe Abbildung siehe Abbildung siehe Abbildung siehe Abbildung...
- Page 64 All manuals and user guides at all-guides.com siehe unten siehe unten siehe unten siehe Abbildung siehe Kundendienst TYPENSCHILD Breite 43,5 cm Abmessungen Höhe 32 cm Tiefe 41,5 cm Nutzvolumen Liter 58 Spannung 220-240V ~ 50/60Hz Elektrischer maximale Leistungsaufnahme Anschluss 2560-3050W Richtlinie 2002/40/EG über die siehe Etikettierung von Elektrobacköfen.
- Page 65 All manuals and user guides at all-guides.com GLEITFÜHRUNGEN Bedienfeld für die Einschübe Einschub BACKOFENROST Einschubhöhe 5 Einschubhöhe 4 Einschubhöhe 3 Einschub FETTPFANNE Einschubhöhe 2 Einschubhöhe 1 Drehknopf Drehknopf Drehknopf PROGRAMME KURZZEITWECKER* THERMOSTAT Kontrollleuchte - VORHEIZEN (Blinklicht) - PROGRAMM LÄUFT (Dauerlicht) Kontrollleuchte - FEHLERANZEIGE (rasches Blinklicht) TÜRSPERRE*...
- Page 66 All manuals and user guides at all-guides.com siehe Programme...
- Page 67 All manuals and user guides at all-guides.com siehe Reinigung und Pflege siehe Reinigung und Pflege...
- Page 68 All manuals and user guides at all-guides.com...
- Page 69 All manuals and user guides at all-guides.com Programme Speisen Gew. Einschubhöhe Vorheizzeit Empfohlene Garzeit (kg) (Minuten) Temperatur (Minuten) Ente 65-75 Kalbs- oder Rinderbraten 70-75 Schweinebraten 70-80 Gebäck 15-20 Torten 30-35 Pizza (auf 2 Ebenen) 2 und 4 15-20 Lasagne 30-35 Lamm 40-45 Brathähnchen + Kartoffeln...
- Page 70 All manuals and user guides at all-guides.com siehe Kundendienst siehe Programme ¡...
- Page 71 All manuals and user guides at all-guides.com siehe Abbildung siehe Kundendienst Backofenraum Lampe Dichtung Glasscheibe siehe Abbildung siehe Abbildung siehe Abbildung...
- Page 72 All manuals and user guides at all-guides.com...
