P. Min/Max Button:
• Press to enter MIN/MAX mode.
• Step through maximum(MAX), minimum(MIN) and present values.
• Press and hold return to Live readings
Q. Display:
• High contrast dual display with backlit.
• AC Amps reading will always display on upper display.
R. Inrush/Hz Duty Button:
• Press to enter LRA Inrush mode (See page 18 for details)
(must be in AC Amps mode first).
• Press again to return to live readings.
• Press and hold to select Hz/Duty in AC volt or AC µA.
S. K-Type Temperature Probe Inputs
T. Input Jack Lock: Switch to use Temperature or Test lead inputs
U. Built-in versatile magnet to use as a mount or as a strap
V. Battery Cover: Easy access for replacing batteries without breaking
calibration seal.
W. Battery Compartment Latches
X. Serial Number
RANGE
AUTO
True RMS
CLAMP METER
SELECT
DISCONNECT TEST LEADS
CATIV 300V
CATIII 600V

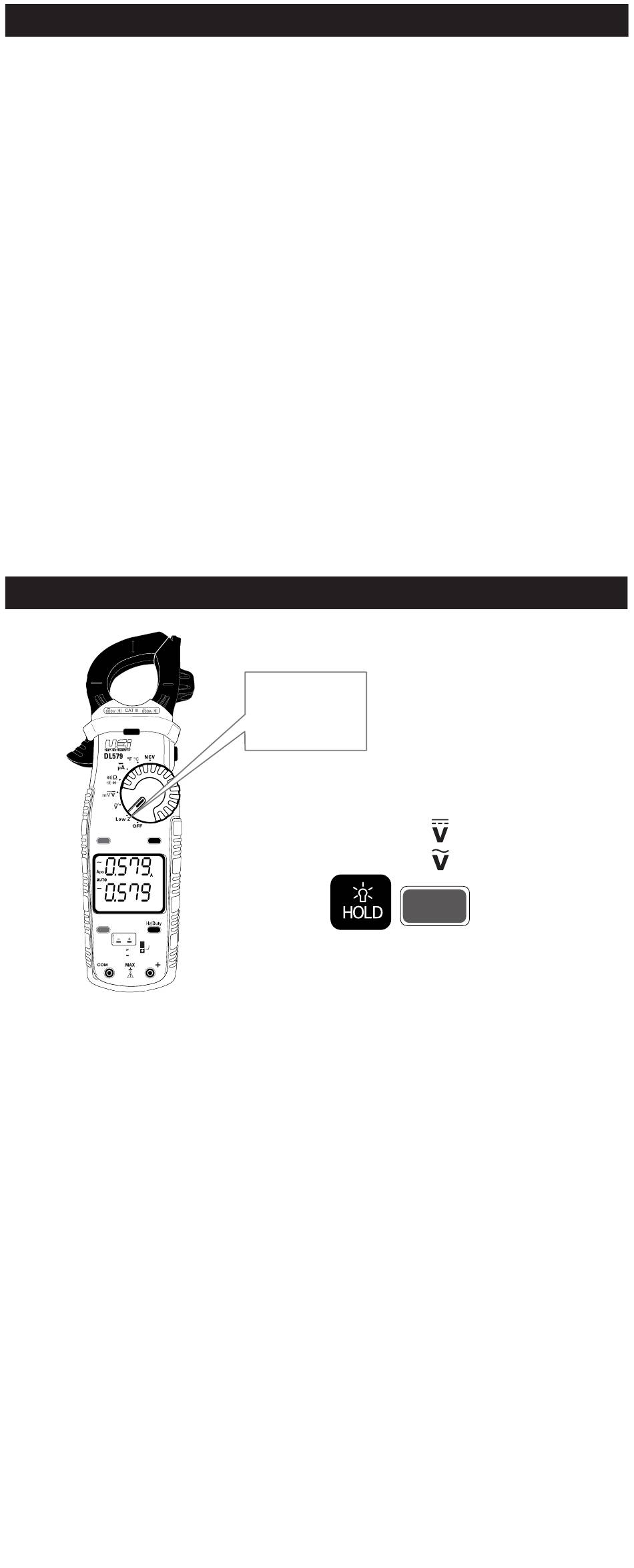

Overview (Cont.)
Low Z (Low Impedance)
Low Z
• Rotate Selector Dial to Low Z
• Default = Auto Selection (DC or AC)
• Press SELECT x1 =
• Press SELECT x2 =
MAX/MIN
Features:
Low Z
V
INRUSH
TEMP
SELECT
BT
7
