Water Ace R7L Manuel D'installation page 5

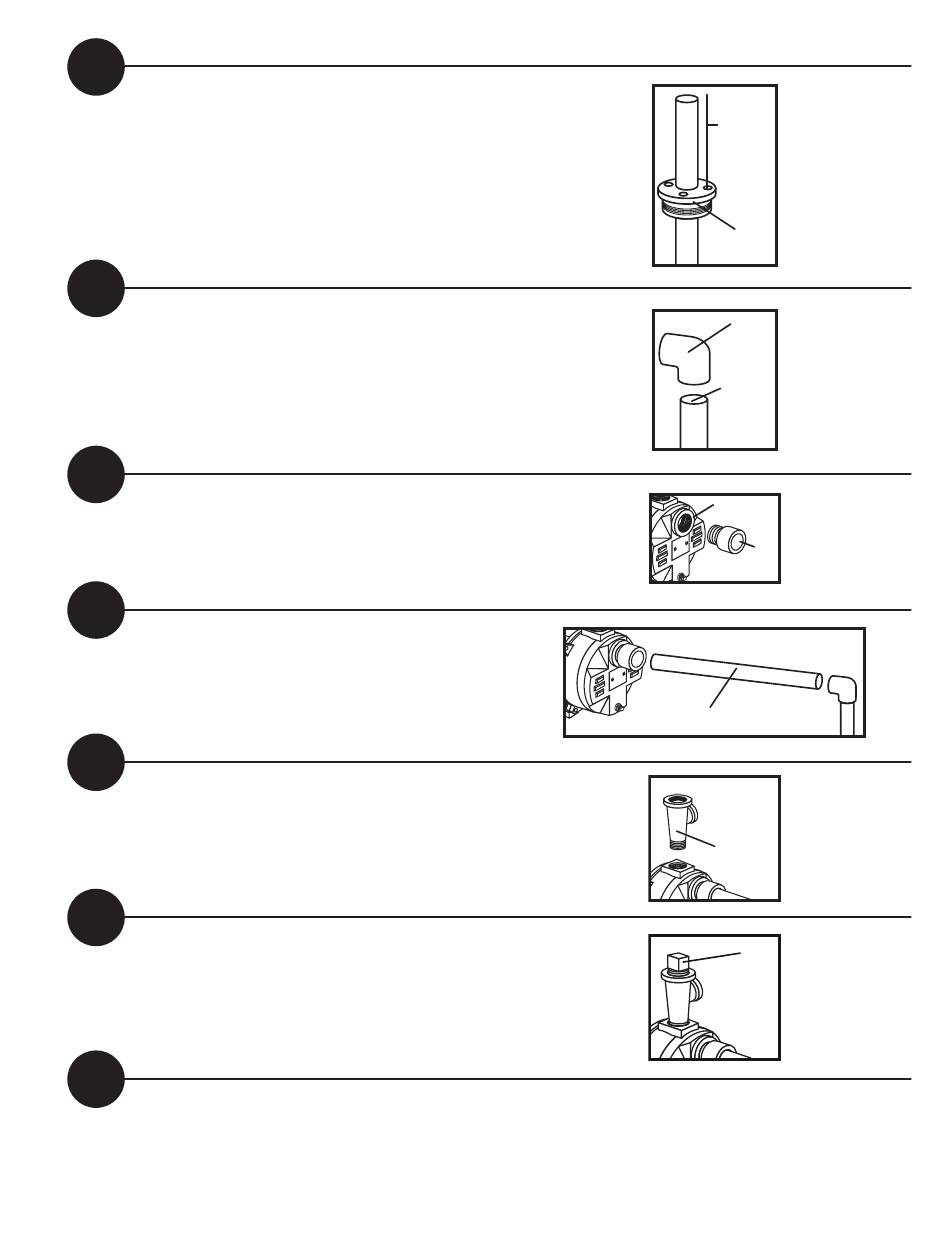

STEP
4
Remove pipe clamp and slide the 1-1/2" well seal over
rigid PVC pipe and onto well casing. Position assembly
so that twelve inches of rigid PVC pipe protrude from
well seal. Alternately turn bolts on well seal clockwise
until rubber gaskets are tight against well casing and
rigid PVC pipe.
STEP
5
Cement 1-1/2" PVC elbow onto rigid PVC pipe protruding
from well seal. If desired, some length may be cut off
of rigid PVC pipe before cementing elbow. Smooth the
inside of any rigid PVC pipe that has been cut with a
round fi le or knife.
STEP
6
Thread a 1-1/2" male PVC adapter into front of pump.
Hand tighten, then turn 1/4 turn with wrench.
STEP
7
Cement as many sections and couplings of PVC pipe
needed to connect the PVC elbow to the 1-1/2" male PVC
adapter in the front of the pump.
STEP
8
Using pipe wrench, thread 1-1/2" Discharge Tee RDT-15 into
top of pump. Remove 1-1/2" plug from top of discharge
tee. Put a garden hose into top of discharge tee. Fill
pipes and pump until water overfl ows from top of
discharge tee. This may take several minutes.
STEP
9
Thread the 1-1/2" pipe plug back into the top of
Discharge Tee RDT-15.
STEP
10
Complete all electrical connections as specifi ed on
page 1 of the preinstallation instructions.
4
APPROX.
12" OF
PVC PIPE
PROTRUDING
FROM WELL
SEAL
1-1/2"
WELL
SEAL
1-1/2"
PVC
ELBOW
TOP OF
PVC PIPE
PROTRUDING
FROM WELL
SEAL
PUMP
1-1/2"
MALE PVC
ADAPTER
1-1/2" PVC PIPE
DISCHARGE TEE
RDT-15
1-1/2"
PIPE
PLUG
