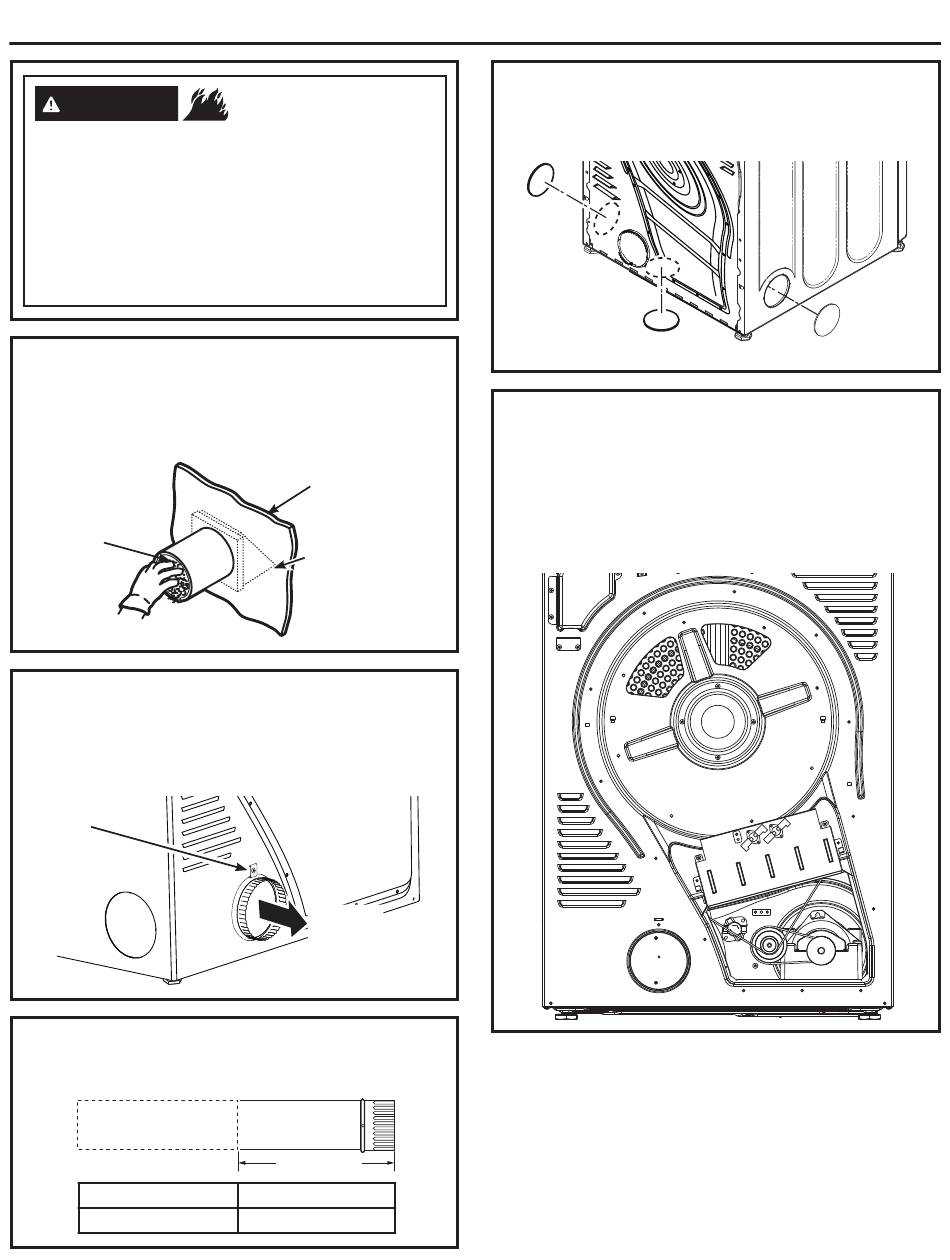

WARNING
Disconnect dryer from electrical supply.
Wear gloves and arm guards.
Close the back opening with exhaust cover
plate.
Failure to do so may result in fire, electrical
shock or lacerations.
BEFORE YOU BEGIN
• Remove and discard existing plastic or metal foil
duct and replace with UL-listed duct.
• Remove any lint from the wall exhaust opening.
Internal
Duct
Opening
REMOVE DUCT FROM DRYER
• Remove and save the screw from the tab that holds
the duct to the rear panel.
• Pull the dryer duct out of the dryer.
Remove
screw
CUT DRYER DUCT
• Cut the dryer duct as shown and keep portion A.
Side Venting
Bottom Venting
Installation Instructions
- Fire Hazard
Wall
Check that exhaust
hood damper
opens and closes
freely.
Remove
duct
A
See Below
7" (17.78 cm)
3" (7.62 cm)
REMOVE DESIRED KNOCKOUT
• Detach and remove the right, left or bottom
knockout from the dryer as desired.
Right
Remove
desired
knockout
(one only)
Bottom
REMOVE THE HEATER COVER
( OPTIONAL )
• The rear heater cover may be removed to aid in
reinstalling the cut internal dryer duct and applying
UL listed aluminum foil tape to the internal duct joints.
NOTE: The rear heater cover is shown removed.
2
Left
