English

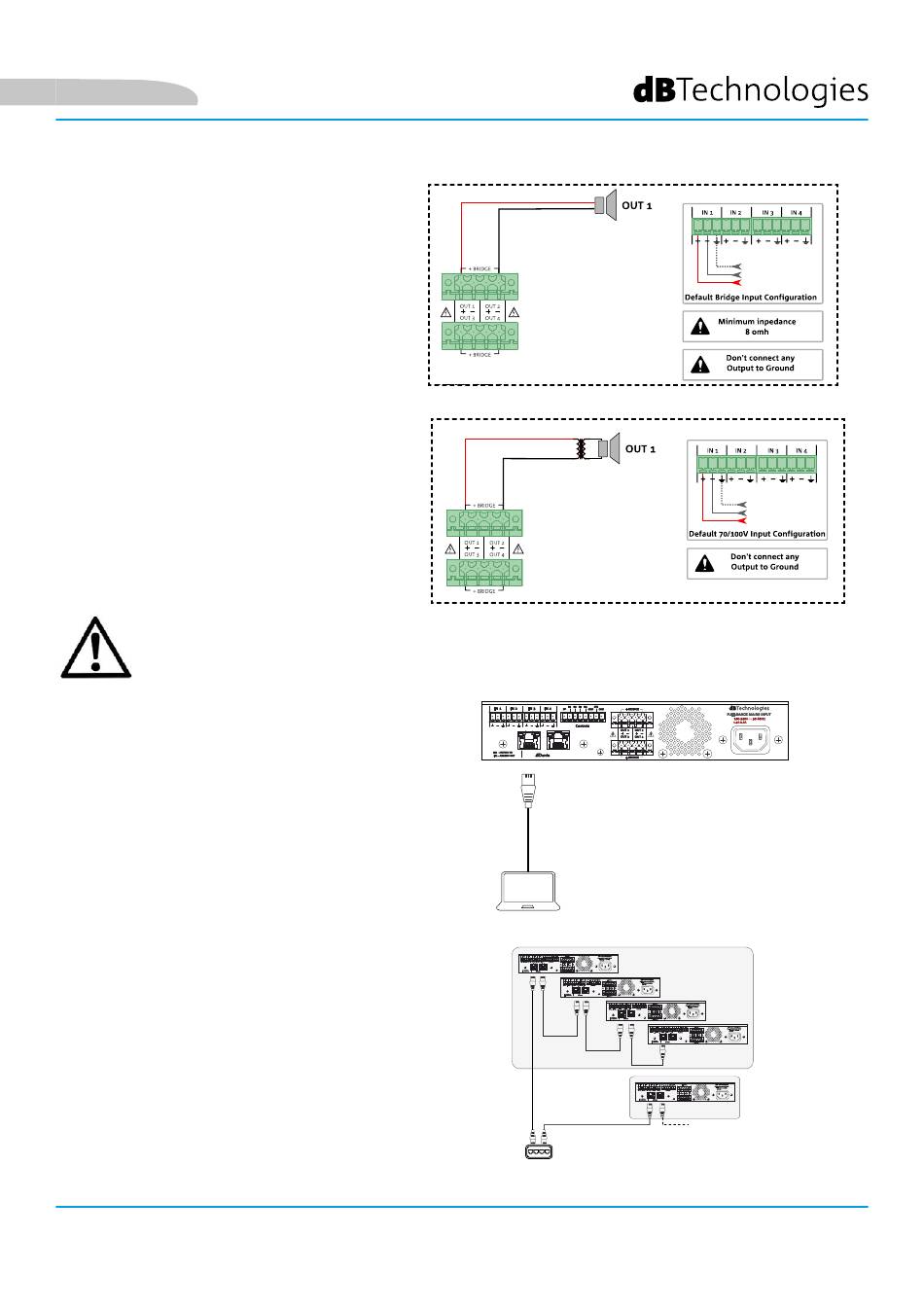

BRIDGE SETUP
Connecting one speaker in bridge mode. Load
the correct setup from the Setup => Output
section of AURORA NET. The impedance must be
8 Ohm or greater.
70/100V SETUP
Connecting a speaker in 70/100V mode. Load the
correct setup from the Setup => Output section of
AURORA NET.
CAUTION
• Do not connect the outputs to ground.
NETWORK WIRING
DANTE
Connect your IA504D device, PC, or Mac with
Dante™ Controller and AuroraNet on an Ethernet
network using shielded CAT5e cables up to 100m
(for longer distances, a fiber optic interface is
required).
Using a network switch, it's possible to connect
up to four IA504D amplifiers to each port in a
daisy chain configuration. Use multiple switches
to connect more devices; it's recommended to
use a high-quality Gigabit switch that supports
Diffserv (DSCP) and QOS. Refer to Audinate for
further information.
IA504D
E E T T H H 1 1 E E T T H H 2 2
Cat5 shielded cable
(up to 100M)
E E T T H H 1 1 E E T T H H 2 2
E E T T H H 1 1 E E T T H H 2 2
E E T T H H 1 1 E E T T H H 2 2
E E T T H H 1 1 E E T T H H 2 2
E E T T H H 1 1 E E T T H H 2 2
Cod. 420120399 REV. 1.0
