Behringer CP35 Guide De Démarrage Rapide

Quick Start Guide
CP35 ATTENUATORS
Legendary Analog Attenuator
and Multiples Module for Eurorack

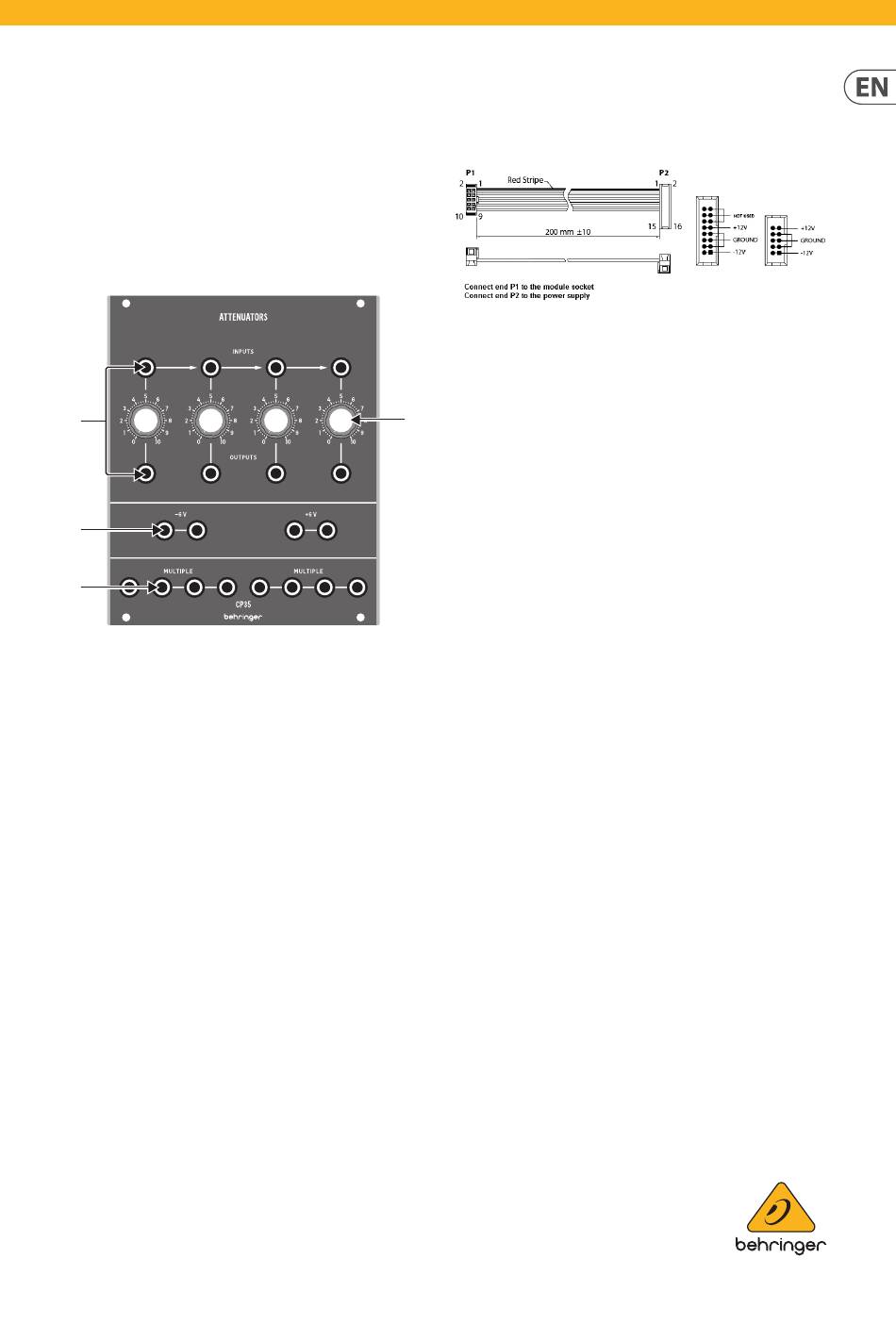

Controls
(EN)
(1)
(3)
(4)
IN and OUT JACKS – A single input connected to the first
(1)
attenuator will pass to all 4 outputs. Additional inputs
will break the chain from the previous input. For example,
input 1 will initially feed all 4 outputs. If you add a signal
to input 2, then input 1 will only feed output 1, and input 2
will feed outputs 2, 3, and 4.
ATTENUATOR KNOBS – Adjust the level of the input
(2)
signal passively from -∞ to unity (0 dB).
6 VOLT OUTPUTS – These outputs give a reference
(3)
voltage of -6 Volts on one output pair, and +6 Volts
on the other pair.
MULTIPLES – Connect an input signal to one
(4)
of the 4-jack sections, then send up to 3 copies
of the same signal to other devices.
V 1.0
Power Connection
The module comes with the required power cable for connecting
to a standard Eurorack power supply system. Follow these
steps to connect power to the module. It is easier to make these
connections before the module has been mounted into a rack case.
(2)
1. Turn the power supply or rack case power off and
disconnect the power cable.
2. Insert the 16-pin connector on the power cable into the
socket on the power supply or rack case. The connector has
a tab that will align with the gap in the socket, so it cannot
be inserted incorrectly. If the power supply does not have
a keyed socket, be sure to orient pin 1 (-12 V) with the red
stripe on the cable.
3. Insert the 10-pin connector into the socket on the back of
the module. The connector has a tab that will align with the
socket for correct orientation.
4. After both ends of the power cable have been securely
attached, you may mount the module in a case and turn on
the power supply.
Installation
The necessary screws are included with the module for mounting
in a Eurorack case. Connect the power cable before mounting.
Depending on the rack case, there may be a series of fixed holes spaced
2 HP apart along the length of the case, or a track that allows individual
threaded plates to slide along the length of the case. The free-moving
threaded plates allow precise positioning of the module, but each plate
should be positioned in the approximate relation to the mounting
holes in your module before attaching the screws.
Hold the module against the Eurorack rails so that each of the
mounting holes are aligned with a threaded rail or threaded
plate. Attach the screws part way to start, which will allow small
adjustments to the positioning while you get them all aligned. After
the final position has been established, tighten the screws down.
