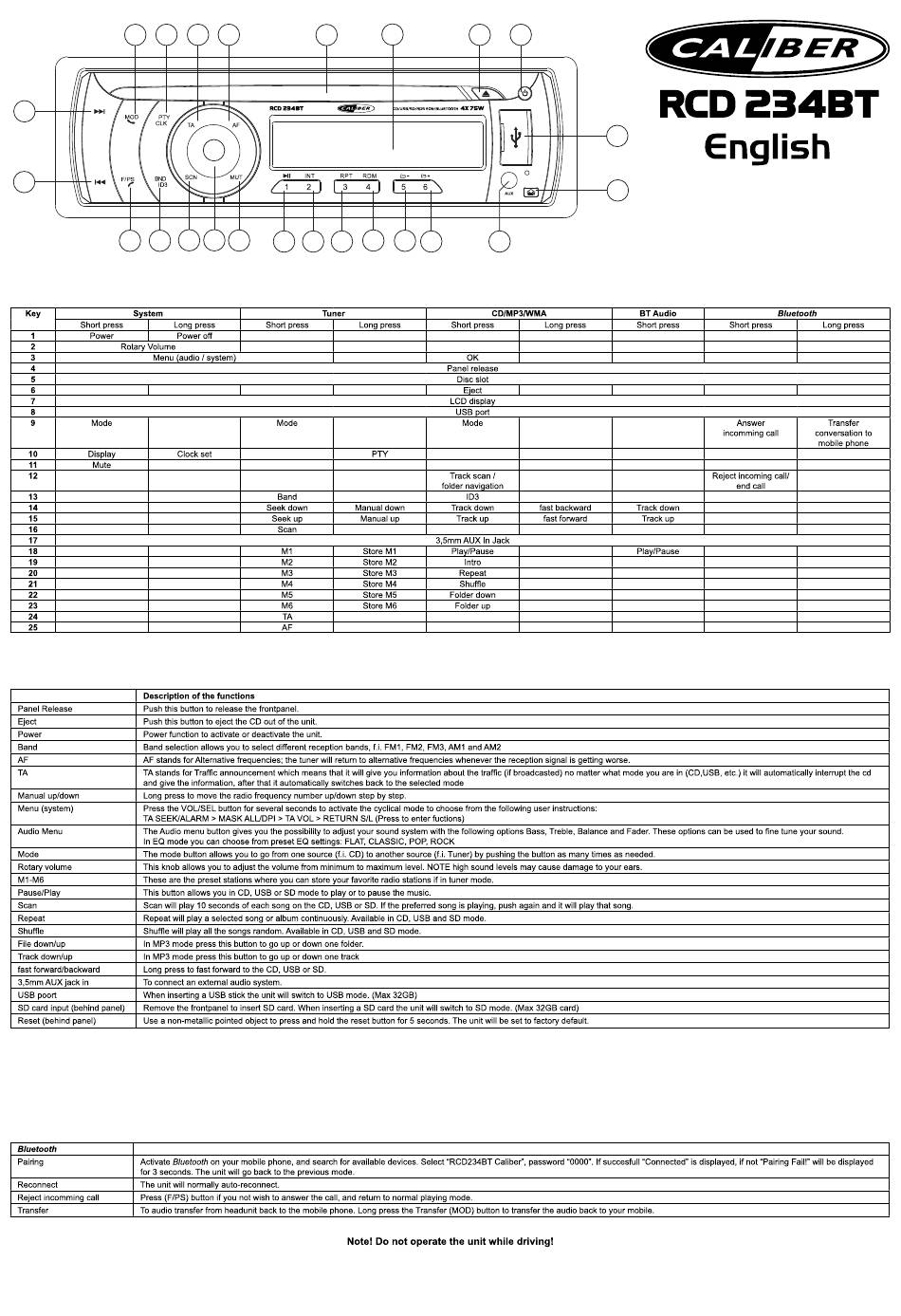

10
9
15
14
16
12
13
Key
System
Short press
Long press
1
Power
Power off
2
Rotary Volume
3
Menu (audio / system)
4
5
6
7
8
9
Mode
10
Display
Clock set
11
Mute
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Description of the functions
Panel Release
Push this button to release the frontpanel.
Eject
Push this button to eject the CD out of the unit.
Power
Power function to activate or deactivate the unit.
Band
Band selection allows you to select different reception bands, f.i. FM1, FM2, FM3, AM1 and AM2
AF
AF stands for Alternative frequencies; the tuner will return to alternative frequencies whenever the reception signal is getting worse.
TA
TA stands for Traffic announcement which means that it will give you information about the traffic (if broadcasted) no matter what mode you are in (CD,USB, etc.) it will automatically interrupt the cd
and give the information, after that it automatically switches back to the selected mode
Manual up/down
Long press to move the radio frequency number up/down step by step.
Menu (system)
Press the VOL/SEL button for several seconds to activate the cyclical mode to choose from the following user instructions:
TA SEEK/ALARM > MASK ALL/DPI > TA VOL > RETURN S/L (Press to enter fuctions)
Audio Menu
The Audio menu button gives you the possibility to adjust your sound system with the following options Bass, Treble, Balance and Fader. These options can be used to fine tune your sound.
In EQ mode you can choose from preset EQ settings: FLAT, CLASSIC, POP, ROCK
Mode
The mode button allows you to go from one source (f.i. CD) to another source (f.i. Tuner) by pushing the button as many times as needed.
Rotary volume
This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears.
M1-M6
These are the preset stations where you can store your favorite radio stations if in tuner mode.
Pause/Play
This button allows you in CD, USB or SD mode to play or to pause the music.
Scan
Scan will play 10 seconds of each song on the CD, USB or SD. If the preferred song is playing, push again and it will play that song.
Repeat
Repeat will play a selected song or album continuously. Available in CD, USB and SD mode.
Shuffle
Shuffle will play all the songs random. Available in CD, USB and SD mode.
File down/up
In MP3 mode press this button to go up or down one folder.
Track down/up
In MP3 mode press this button to go up or down one track
fast forward/backward
Long press to fast forward to the CD, USB or SD.
3,5mm AUX jack in
To connect an external audio system.
USB poort
When inserting a USB stick the unit will switch to USB mode. (Max 32GB)
SD card input (behind panel)
Remove the frontpanel to insert SD card. When inserting a SD card the unit will switch to SD mode. (Max 32GB card)
Reset (behind panel)
Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default.
Bluetooth
Pairing
Activate Bluetooth on your mobile phone, and search for available devices. Select "RCD234BT Caliber", password "0000". If succesfull "Connected" is displayed, if not "Pairing Fail!" will be displayed
for 3 seconds. The unit will go back to the previous mode.
Reconnect
The unit will normally auto-reconnect.
Reject incomming call
Press (F/PS) button if you not wish to answer the call, and return to normal playing mode.
Transfer
To audio transfer from headunit back to the mobile phone. Long press the Transfer (MOD) button to transfer the audio back to your mobile.
24
25
5
2
3
11
18
19
20
Tuner
Short press
Long press
Mode
Band
Seek down
Manual down
Seek up
Manual up
Scan
M1
M2
M3
M4
M5
M6
TA
AF
7
6
1
21
22 23
17
CD/MP3/WMA
Short press
OK
Panel release
Disc slot
Eject
LCD display
USB port
Mode
PTY
Track scan /
folder navigation
ID3
Track down
Track up
3,5mm AUX In Jack
Store M1
Play/Pause
Store M2
Intro
Store M3
Repeat
Store M4
Shuffle
Store M5
Folder down
Store M6
Folder up
8
4
BT Audio
Long press
Short press
fast backward
Track down
fast forward
Track up
Play/Pause
Bluetooth
Short press
Long press
Answer
Transfer
incomming call
conversation to
mobile phone
Reject incoming call/
end call
