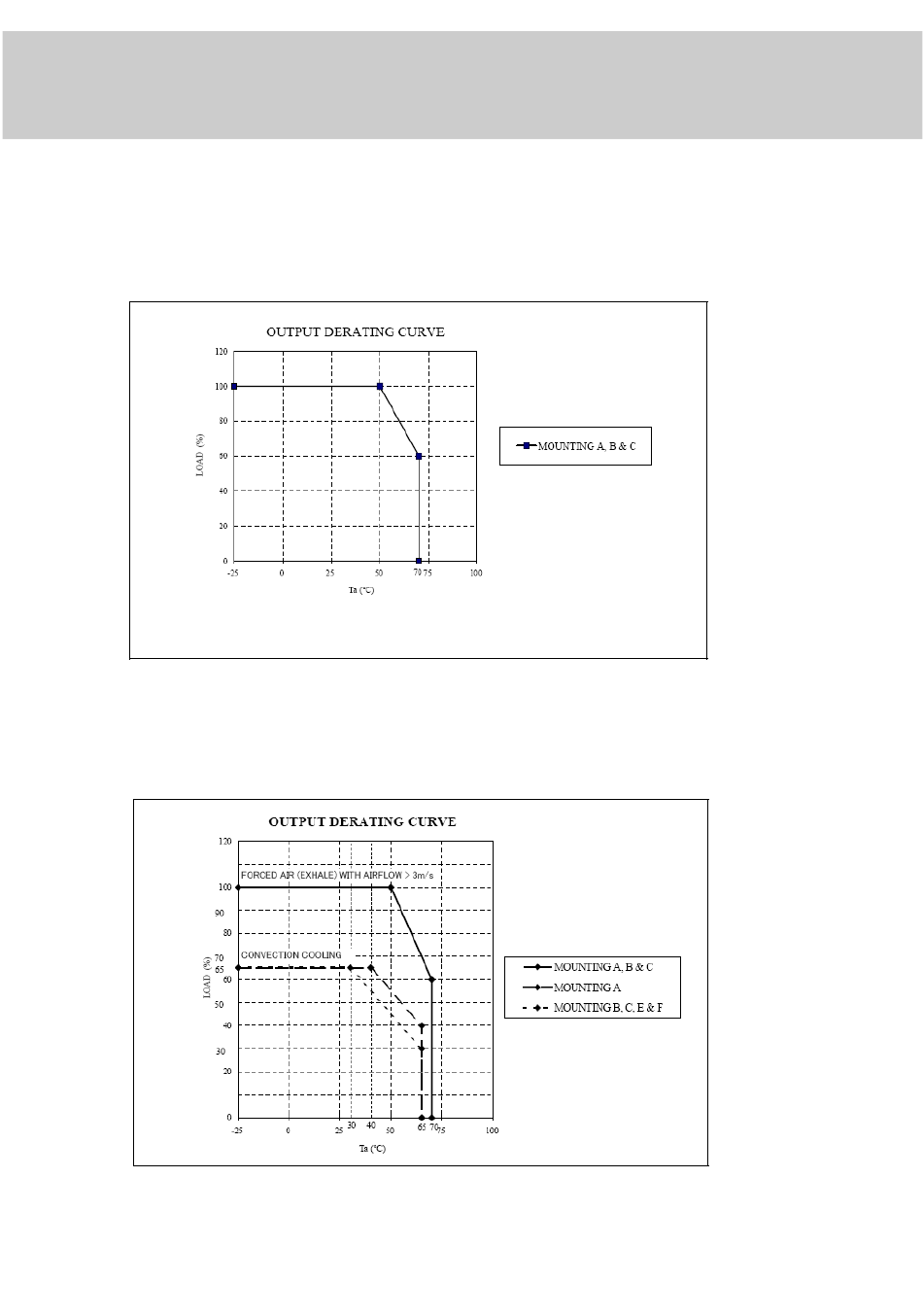

5-2. Output Derating according to the ambient temperature
(A) LS200 series Output Derating versus Ambient Temperature.
The cooling system is forced air (exhale).
In the following derating curve, the maximum output current please refers to PA607-01-01.
LS200 – 3.3V, 5V, 7.5V, 12V, 15V, 24V, 36V & 48V
(B) LS200/L series Output Derating versus Ambient Temperature.
The cooling system is convection cool or forced air (exhale) with airflow > 3m/s.
In the following derating curve, the Y-axis for maximum output current please refers to PA607-01-01/L.
i.
LS200/L – 3.3V, 5V & 7.5V
11
TDK-Lambda
LS 200 Series
INSTRUCTION MANUAL
