Yakima MOD System Fit Kit 1 Manuel D'installation

CONTENTS •
CONTENU • CONTENIDO
D-ring (2x)
Anneau en D (x 2)
Anillo D (2x)
10 mm wrench (1x)
REFER TO
1
THE CHART.
REMOVE THE FACTORY TIE-DOWN
2
POINTS AND HARDWARE.
Pour le français, aller à la page 2.
Instruction #1036298A-1/3
Clé de 10 mm (x 1)
Llave de 10 mm (1x)

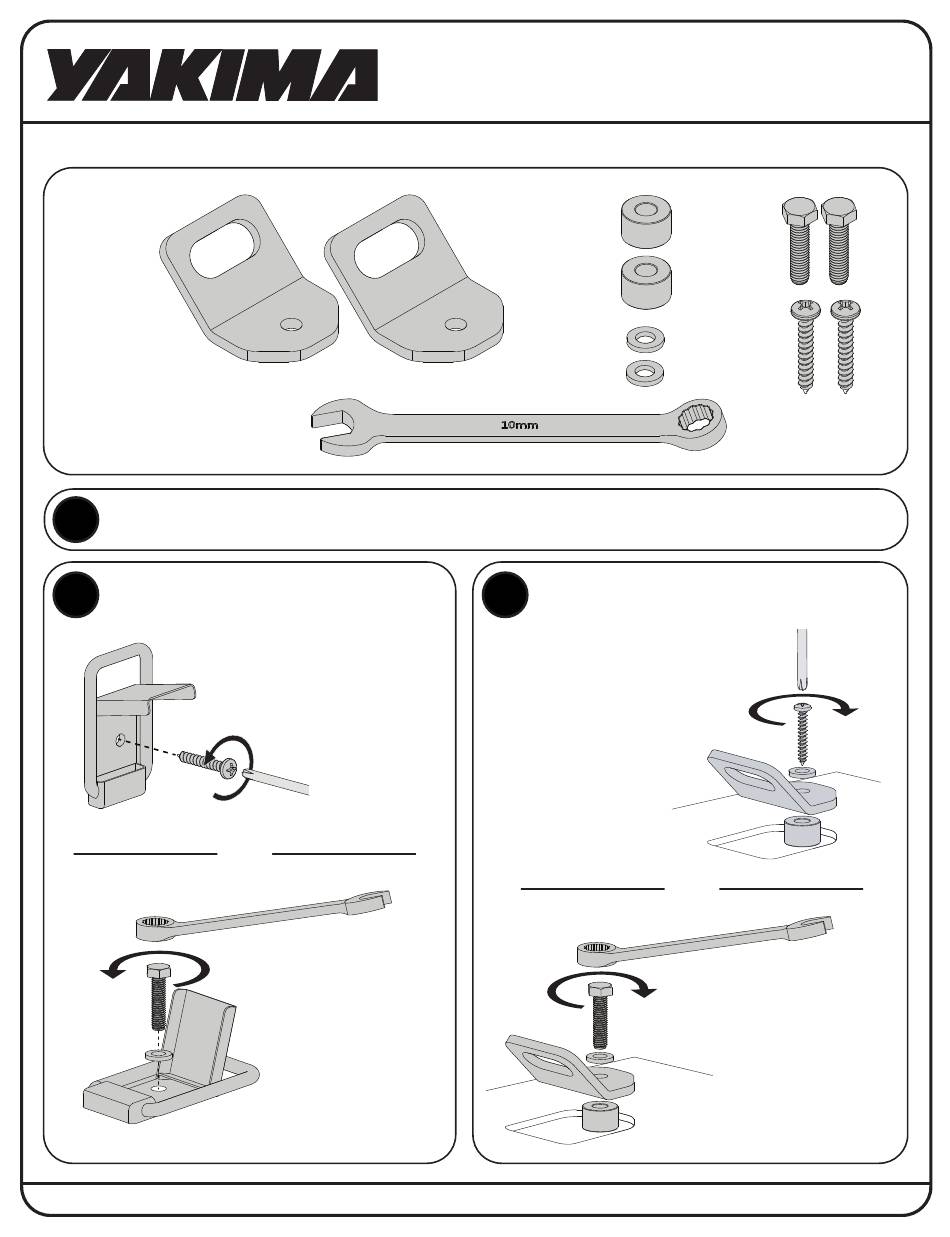

Refer to the chart on next page and find your vehicle then identify
which hardware your vehicle needs and which tie-downs are effected.
Using a
screwdriver,
remove the
tie-down
point.
OR
Using the 10 mm
wench (or 10 mm
socket), remove
the plastic D-ring.
MOD System Fit Kit 1
10 mm spacer (2x)
Entretoise de 10 mm (x 2)
Espaciador de 10 mm (2x)
M6 washer (2x)
Rondelle M6 (x 2)
Arandela M6 (2x)
INSTALL THE REPLACEMENT
3
HARDWARE FROM THIS KIT.
Using a Phillips
head screwdriver,
install the metal
#10 screw to
secure the D-ring
with spacer and
washer, as shown.
Para español ir a la página 2.
M6 bolt (2x)
Boulon M6 (x 2)
Perno M6 (2x)
#10 screw (2x)
Vis n° 10 (x 2)
Tornillo n.° 10 (2x)
OR
Using the 10 mm
wench, install
the spacer, metal
D-ring, M6 washer,
and M6 bolt.
Tighten completely
to 5 Nm.
