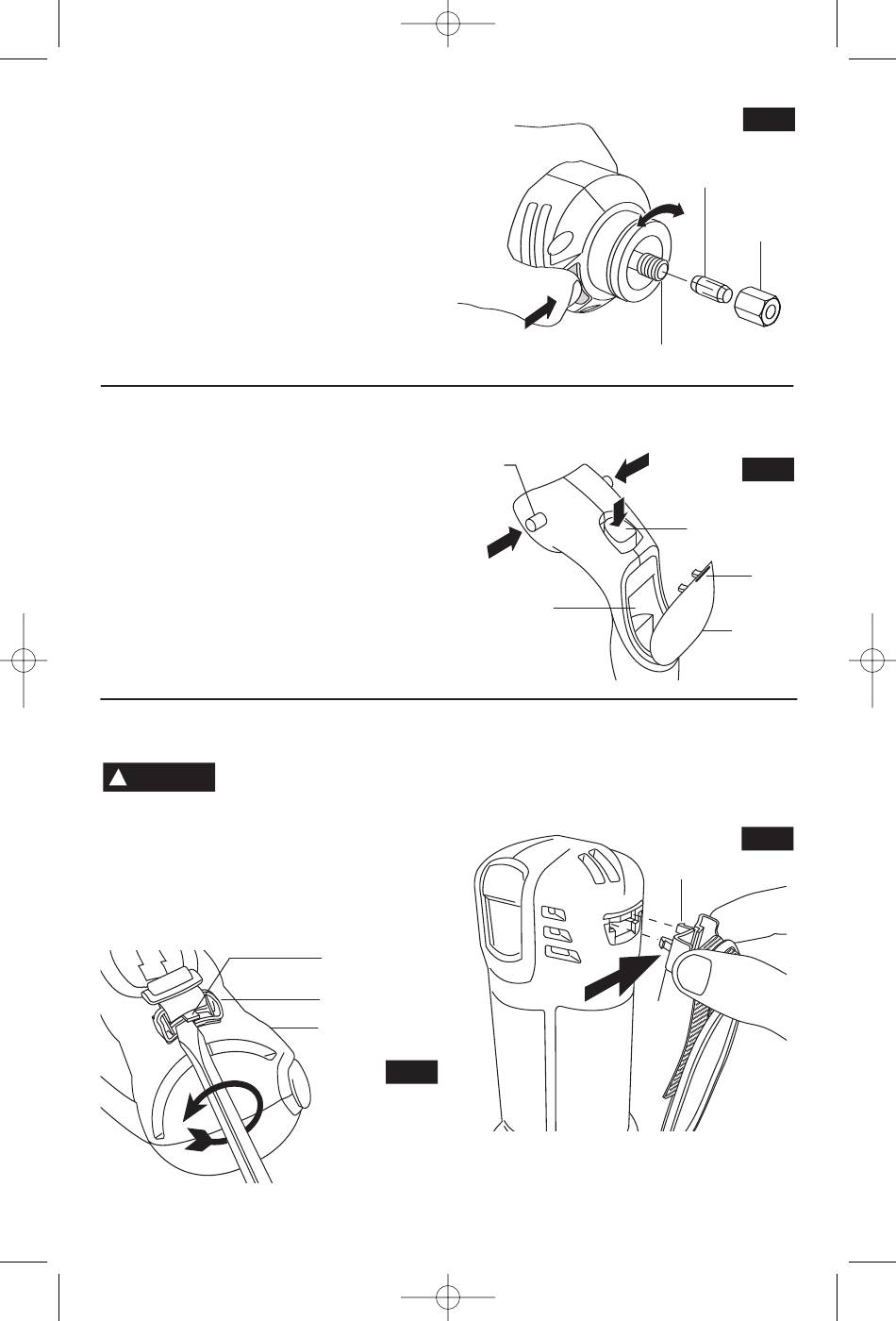

CHANGING THE COLLET
The 1/8" collet is used with 1/8" diameter
bits, the 1/4" collet is used with 1/4" diameter
bits and the 5/32" collet is used with 5/32"
diameter bits. To change collets, first
remove the bit. Continue to loosen and
unscrew the collet nut until you can remove it
from the tool. Remove the collet and replace
it with the other (Fig. 4). (Each collet is
double-ended, and either end is acceptable
to use.) By hand, re-tighten the collet nut
around the collet in a clockwise direction.
You are now ready to insert a new bit as
instructed in Installing Bits (Fig. 2 or 3).
REMOVING AND INSTALLING THE HARD
AUXILIARY CONTROL HANDLE
Turn the tool OFF and unplug it. Firmly grasp
the tool. Depress and hold lock pin from either
side of the handle. While depressing the lock
pin, depress release button so lock pin is
engaged, then remove handle (Fig. 5).
With the lock pin engaged, gently engage the
two (2) front latches on handle into the tool and
push handle until it snaps securely into place.
Your handle is equipped with a bit and collet
storage area. To open door, pull tab on door
downward away from tool. To close door, lift
REMOVING AND INSTALLING
THE SOFT BAND HANDLE (Old Style)
Always use auxiliary handle
!
for maximum control over
torque reaction or kick-back. Using the tool
WARNING
without the handle could cause loss of control.
To remove, insert a flat tip screwdriver
between tab and clip as shown, rotate
screwdriver counter-clockwise lifting tab until
clip releases from housing (Fig. 6).
To attach, first insert one side of latch into tool
1/4/06 9:39 AM Page 8
TAB
CLIP
HOUSING
FIG. 6
OUTPUT SHAFT
door upward toward the tool. Be sure door is
closed to prevent bits from falling out.
LOCK
PIN
BIT / COLLET
STORAGE
housing, then firmly push the other latch into
housing while applying pressure in direction
of arrow until clip locks securely into housing
(Fig. 6a).
Repeat this procedure on opposite end of
strap.
-8-
FIG. 4
COLLET
COLLET
NUT
FIG. 5
RELEASE
BUTTON
TAB
DOOR
FIG. 6a
LATCH
CLIP
