different charging current. If fast mode is selected, the max. charging current will be 12A and 2A at slow
mode.

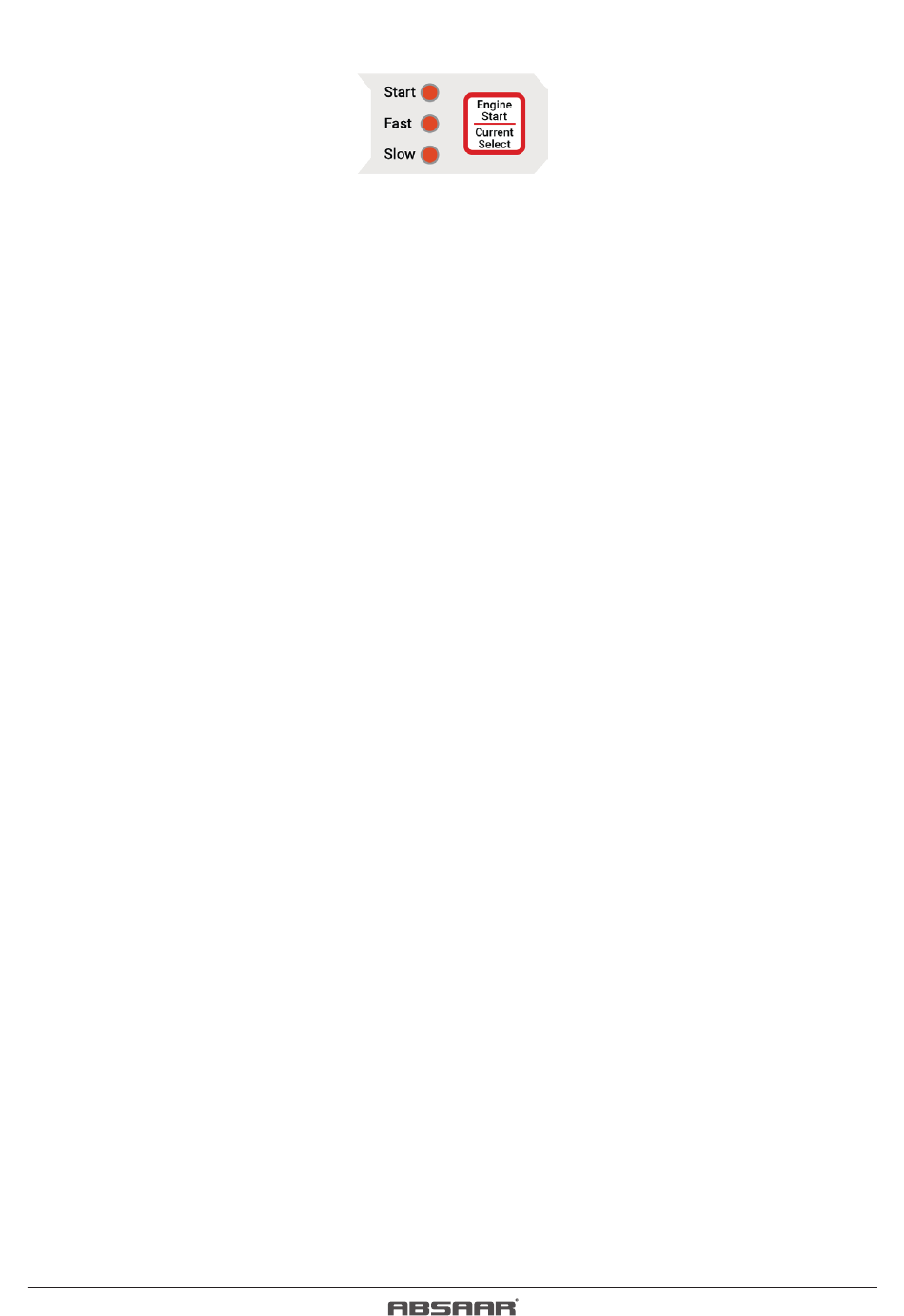

Press the "Engine Start" button and hold for more than 3 seconds, it will come into "Engine Start"
process, then you can use it to start you vehicle at the cycle no more than 5S on and 180S off, max. 5
cycles allowed.
Note that 2A charging current is suit for 4-30Ah batteries and 12A charging current is better for the
capacity of 25-120Ah batteries.
Charging:
a. connect the rec clamp to the plus pole and the black clamp to the minus pole
b. connect the charger to 230V socket
c. The charger's LED display will flash to show voltage of battery.
d. Press "BATTERY SELECT" button?user can choose the battery's type which need charge. (Such as
STD or AGM or GEL?
e. Press "CURRENT SELECT" button, you can choose the charge current you need.
?Such as FAST or SLOW?.
f. After 5 seconds, till the digital on LED display and "Charging" indicator lights permanent it means the
charger is under charging working condition.
g. When the charger is charged, the LED display will be show "FUL".

Jump Start

a. Charge the battery for 10-15 minutes according to steps a-f in the charging operation section above.
i. Press the button of "ENGINE START" for 3 seconds, the indicator below "ENGINE START" will be
lighted, then you can start your vehicle
ii. At most for 5 seconds, the charger will stop the starting mode and turn into rest mode. Meanwhile, for
the next time to go to start mode will be count down and showed on LED Display like:180 – 179 – 178
- .....3 – 2 - 1.
b. If you need to exit " ENGINE START" mode, press "ENGINE START" once, the light below "ENGINE
START" will turn off, which represents that the charger has already exited "ENGINE START and turn
into charging mode.
i. Do not crank engine for > 5s
ii. Wait approximately 180s between starting attempts
iii. Do not attempt to start more than five times. If five attempts fail, the vehicle's battery should be
recharged 15-30 minutes
When the display show FUL, please disconnect the charger from the battery, it is not designed to use
the charger as maintenance charger

End charging process:

1. Unplug from the AC outlet.
2. Disconnect the black clamp
3. Disconnect the red clamp
