ABB D1 Manuel D'utilisation page 8

Function
Permanent manual forcing of channel 1
and 2 (ref. subsection 3-7).
Press for 2 secs. to access PERM and
alternate pressure to change it from
PERM ON to PERM OFF.
Return to AUTO mode (if any manual
forcing has been activated).
i
It is necessary to be on the initial screen to carry out any of the above-
EN
mentioned functions
1-6 Connections
i
Maximum distance for external input: 100 m.
Connection of single channel and twin channel models
• Ref. Fig. 5-1 to Fig.5-3.
Connection of Synchro models
Single channel or twin channel Synchro models with GPS or DCF77 Antenna.
• Ref. Fig. 6-1 to Fig.6-2.
1-7 First switch ON
The equipment is supplied without any settings.
RESET with a pointed object to unlock the equipment (ref. Fig.4).
1. Press
2. Set following data:
• LaNguagES
• DaTE/TiME
i
If there is a power failure, the Date/Time is memorised, and the digital switch:
• disables relay(s),
• deactivates back-lighting, if active,
6
All manuals and user guides at all-guides.com
(ref. subsection 3-8-1).
(Year, Month, Day, Time, Time Zone (ref. subsection 3-8-2)).

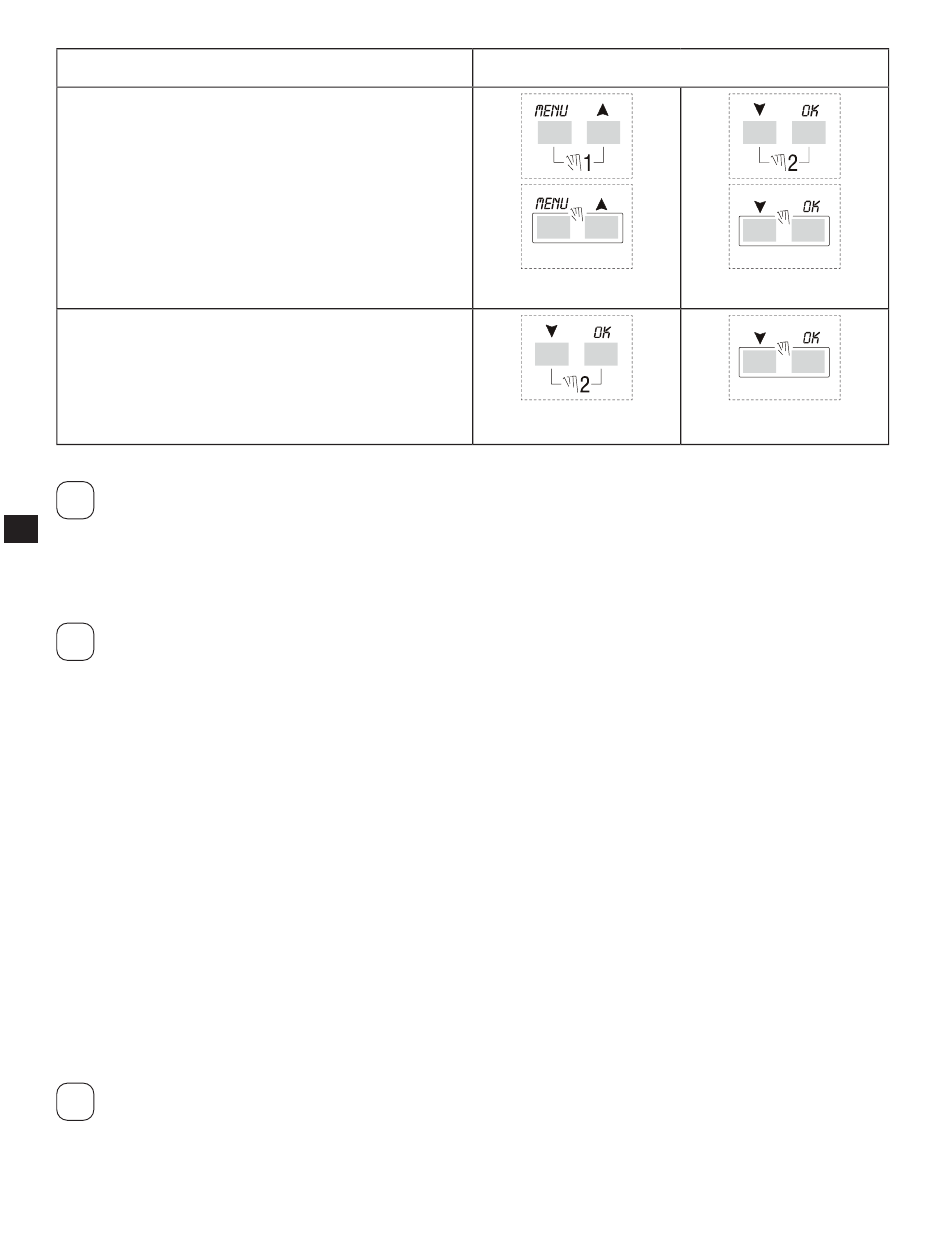

Combined keys
+
+
