Walker Tray
Assembly, Installation and Operating Instructions
Model No. 6007
SAVE THESE INSTRUCTIONS
NOTE: Check all parts for shipping damage. In case of
damage, DO NOT use. Contact Dealer/Carrier for
further instructions.
SAFETY SUMMARY
SAFETY SUMMARY
SAFETY SUMMARY
SAFETY SUMMARY
SAFETY SUMMARY
The following recommendations are made for the
safe installation and use of the WALKER TRAY on
Single Release or Dual Release walkers:
GENERAL WARNINGS
GENERAL WARNINGS
GENERAL WARNINGS
GENERAL WARNINGS
GENERAL WARNINGS
DO NOT install or use this equipment
without first reading and understanding
these instructions. If you are unable to
understand the Warnings, Cautions or
Instructions, contact a healthcare profes-
sional, dealer or technical personnel before
attempting to install this equipment -
otherwise, injury or damage may occur.
Each individual should always consult
with their physician or therapist to
determine proper adjustment and usage.
DO NOT carry or place weight exceeding
five (5) pounds in or on the walker tray
when attached to walker. This may cause
the walker to tip forward.
NEVER use the walker tray, walker basket
and the walker pouch at the same time.
NEVER use the walker tray as a means of
support.
DO NOT sit or push down on the walker
tray when in use. This may cause the tray
to collapse.
Always test to see that the walker and
attachments are properly and securely
locked in place before using.
NOTE: Not recommended for use with heavy duty walkers.
INSTALLING THE TRAY SIDE
INSTALLING THE TRAY SIDE
INSTALLING THE TRAY SIDE
INSTALLING THE TRAY SIDE
INSTALLING THE TRAY SIDE
BRACES (FIGURE 1)
BRACES (FIGURE 1)
BRACES (FIGURE 1)
BRACES (FIGURE 1)
BRACES (FIGURE 1)
NOTE: Refer to the WARNINGS in the SAFETY
SUMMARY of this instruction sheet.
NOTE: There is NO right or left tray side brace.
NOTE: BEFORE installing tray side braces onto the
walker for the first time, soak them in hot water for
five (5) minutes.
1. Make sure the openings in the tray side
braces are pointing in towards the center
of the walker.
Part No. 1089635
All manuals and user guides at all-guides.com
NOTE: The tray side braces attach differently on dual
release walkers than single release walkers.
2. Perform one (1) of the following:
3. Snap the tray side braces onto the walker
NOTE: If necessary, use a rubber mallet to snap the
tray side braces onto the walker.
4. Perform one (1) of the following:
DUAL RELEASE

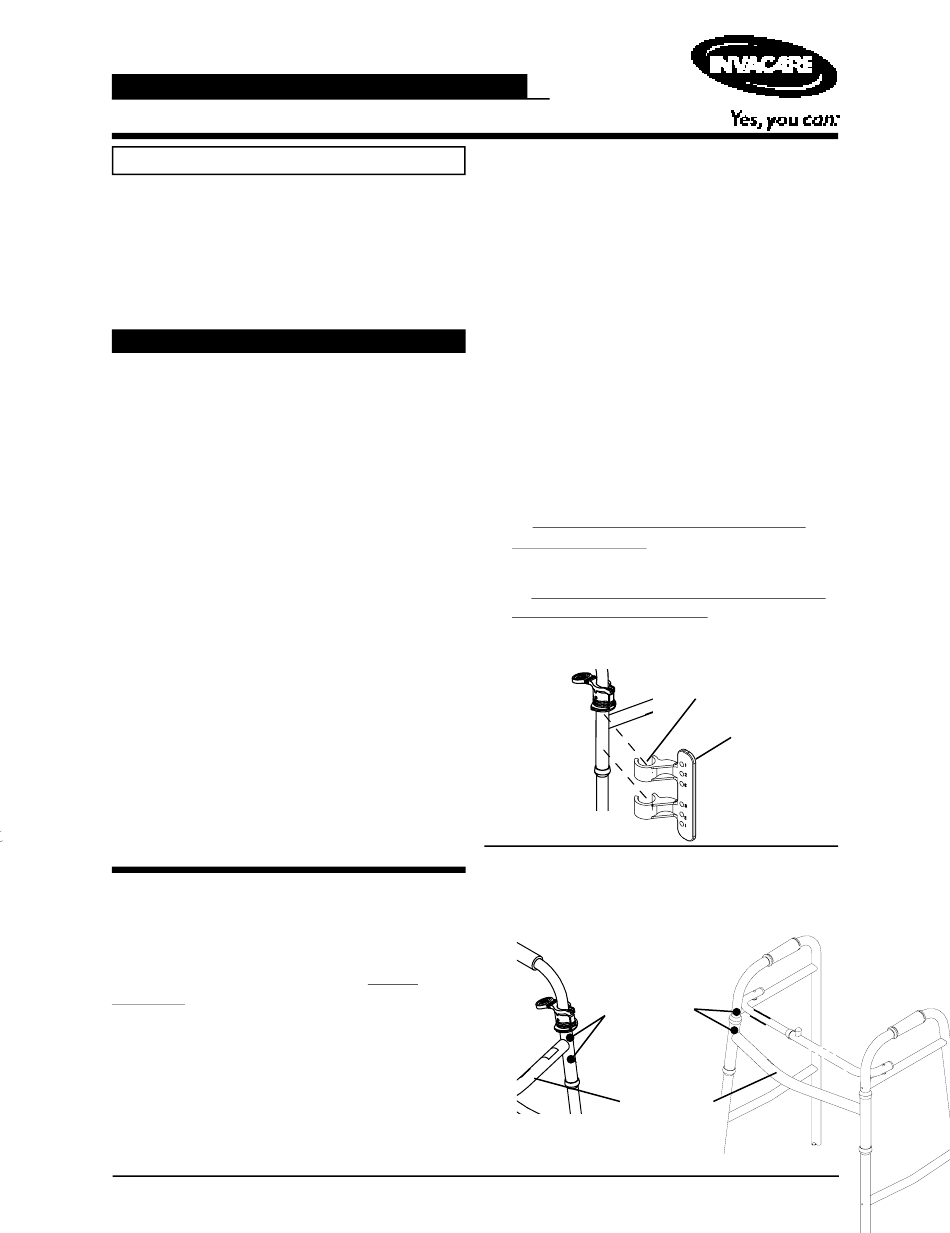

FIGURE 1 - INSTALLING THE TRAY
1
DUAL RELEASE WALKERS - Position
the openings in the tray side braces
ABOVE and BELOW the pivot brace.
SINGLE RELEASE WALKERS -
Position both openings in the tray side
braces above the pivot brace.
at the points determined in STEP 2.
DUAL RELEASE WALKERS - Proceed
to INSTALLING THE O-RINGS ONTO
THE TRAY LINKS in this instruction sheet.
SINGLE RELEASE WALKERS - Proceed
to INSTALLING SNAP SUPPORTS - SINGLE
RELEASE WALKERS ONLY in this instruction
sheet.
STEP 1
Openings in Tray Side Brace
STEP 2 - POSITIONING THE SIDE
BRACES
WALKERS
Position Tray Side
Braces HERE
Pivot Brace
SIDE BRACES
Tray Side
Brace
SINGLE RELEASE
WALKERS
WALKER TRAY
