LEGRAND NEXSYS MIDDLE ATLANTIC Mode D'emploi

LEGRAND NEXSYS MIDDLE ATLANTIC Mode D'emploi

Masquer les pouces

Publicité

Liens rapides

Télécharger ce manuel

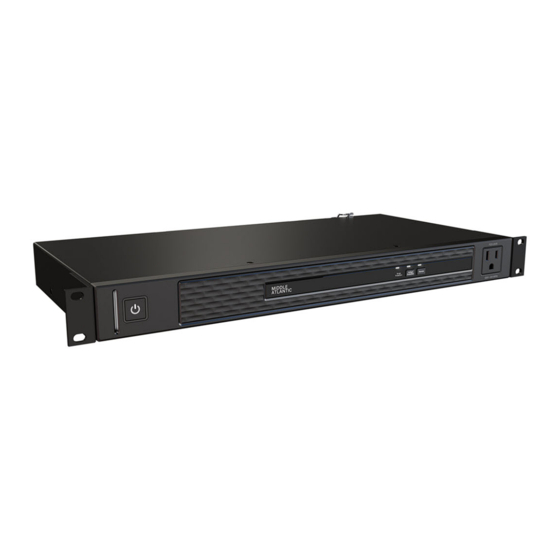

Rackmount PDU
User Manual
100-00060 Rev A

Publicité

loading

Manuels Connexes pour LEGRAND NEXSYS MIDDLE ATLANTIC

Sommaire des Matières pour LEGRAND NEXSYS MIDDLE ATLANTIC

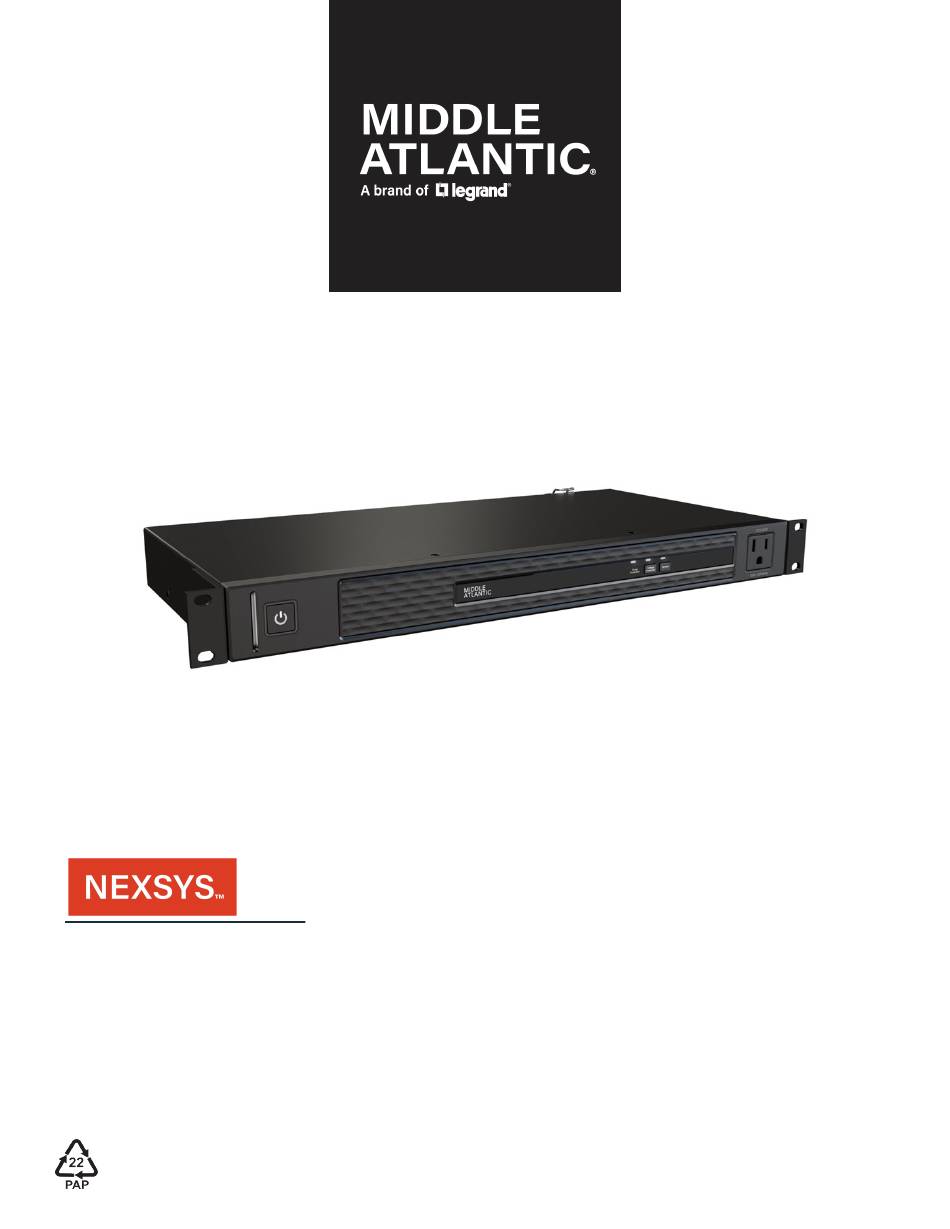

  • Page 1 Rackmount PDU User Manual 100-00060 Rev A...
  • Page 2 All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All patents are protected under existing designations. Other patents pending. Legrand AV Inc. Brands: Chief | Da-Lite | Middle Atlantic Products | Projecta | Sanus | Vaddio ©2023 | Legrand AV, Inc.
  • Page 3 Mounting Your NEXSYS Series Rackmount PDU Feature Set LED Protection Indicators Surge Protection Voltage Protection Specifications Specifications for MOV Surge Models Summary Hardware Features Physical Specifications for Series Surge Protection Models Summary Hardware Features Physical Warranty ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 4 The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 5 (e.g. use of power strips). Disconnect Device (Pluggable Equipment): The socket-outlet shall be installed near the equipment and shall be easily accessible. When using electrical products, basic precautions should always be followed, including the following: ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 6 Une remarque est utilisée pour mettre en évidence les procédures REMARQUE relatives à l'installation, au fonctionnement ou à l'entretien du produit. CONSERVEZ Ce manuel contient des instructions importantes à suivre lors de l’installation et de la maintenance du produit. INSTRUCTIONS ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 7 à un électricien pour remplacer la prise obsolète. L'appareil ne doit pas être exposé à des éclaboussures et aucun AVERTISSEMENT objet rempli de liquide, comme des vases, ne doit être placé sur l'appareil. ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 8 Mise à la terre fiable: Fiable mise à la terre de l'équipement de montage en rack doit être maintenue. Une attention particulière devrait être accordée aux connexions d'alimentation autres que les connexions directes vers le circuit de dérivation (par exemple de l'utilisation de bandes de puissance). viii ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 9 Regulatory Compliance Federal Communications Commission (FCC) Statement Any changes or modifications not expressly approved by the party CAUTION responsible for compliance could void the user's authority to operate the equipment. ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 10 Consult the dealer or an experienced radio/TV technician for help. Conformité Réglementaire Déclaration de conformité de la Federal Communications Commission (FCC) Les changements ou modifications non expressément approuvés par le ATTENTION fabricant peuvent annuler le droit de l'utilisateur à utiliser l'équipement. ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 11 ICES-003 Class B Notice. This Class B digital apparatus complies with Canadian ICES-003. Industrie Canada (IC) ICES-003 Avis NMB-003, Classe B. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 12 à une utilisation efficace des ressources naturelles. Pour plus d'informations sur les lieux de recyclage de vos équipements usagés, veuillez contacter votre mairie ou votre service de collecte des ordures ménagères. ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 13 After carefully opening all product packaging, identify the supplied components and hardware shown. If any pieces are missing or damaged, please report it immediately to Technical Support at av.middleatlantic.techsupport@legrand.com or (866) 977-3901. Keep the original packaging in a safe place for future use.
  • Page 14 1. Use a #2 Phillips screwdriver and (4x) rack screws (not provided) through holes on the pre- installed ears and into the threaded holes on the rackrail to mount your NEXSYS Rackmount PDU as shown. NOTE The NEXSYS Rackmount PDU unit is 1 RU. ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 15 3. Use the power cord to connect your Rackmount PDU from the AC input into an outlet on an appropriately rated receptacle. ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 16 Press to enable or disable voltage protection. White: Voltage protection enabled. Off: Voltage protection disabled. E. Remote LED Indicator and Button Press to enable or disable remote contact control. White: Remote Enabled Off: Remote Disabled ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 17 When contact is opened, the outlets are turned Off. N. Outlets All outlets controllable by power button and remote contact. P. External Grounding and Bonding Stud For connecting an external ground wire to bond the chassis. ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 18 LED Protection Indicators Surge Protection LED State Description Protected. Normal state. First stage failed. Not protected. Voltage Protection LED State Description Voltage protection enabled. Under voltage. Over voltage. Voltage protection is off. ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 19 Contact Closure No Load Power < 1W Dissipation SignalSAFE IEC to 5-15P, 10’ SignalSAFE IEC to 5-20P, 10’ Input Power Cord (3M) (3M) Certifications UL 62368, UL 1449, FCC Class B, ICES 7 ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 20 >20dB Calculated Line to Neutral - 100kHz to 1Mhz - based on nominal EMI/RF Suppression impedance. Upper Limit Cutoff: 135V RMS Overvoltage Threshold Upper Limit Restore: 126V RMS Lower Limit Cutoff: 100V RMS Undervoltage Threshold Lower Limit Restore: 105V RMS ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 21 For warranty information, refer to www.legrandav.com/policies/warranty_information. Specifications for Series Surge Protection Models Summary Model PDX-915R-SP PDX-920R-SP Nominal Voltage 120VAC Voltage Range Minimum: 80VAC, Maximum: 140VAC Frequency 60 Hz Maximum Peak Load Rated Load ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 22 6000 Volts (1.2 x 50µS Pulse, Industry Standard Combination Wave Per Surge Voltage IEEEC62.41) Maximum Applied Unlimited (Due to Inherent Current Limiting) Surge Current Maximum Applied Unlimited (Due to Inherent Current Limiting) Surge Energy ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 23 Product Weight 8.6 lb. (3.9 kg) Shipping Weight 11.47 lb. (5.2 kg) 12.35 lb. (5.6 kg) Warranty Model PDX-915R-SP and PDX-920R-SP Twelve Years Limited For warranty information, refer to Series Surge Module www.legrandav.com/policies/warranty_information. ©2023 | Legrand AV, Inc. All rights reserved.
  • Page 24 Legrand | AV Headquarters 6436 City West Parkway Eden Prairie, MN, 55344, USA At Legrand AV Inc. we are always listening. Your comments are welcome. Legrand AV is an ISO 9001 and ISO 14001 Registered Company. ©2023 | Legrand AV,...
